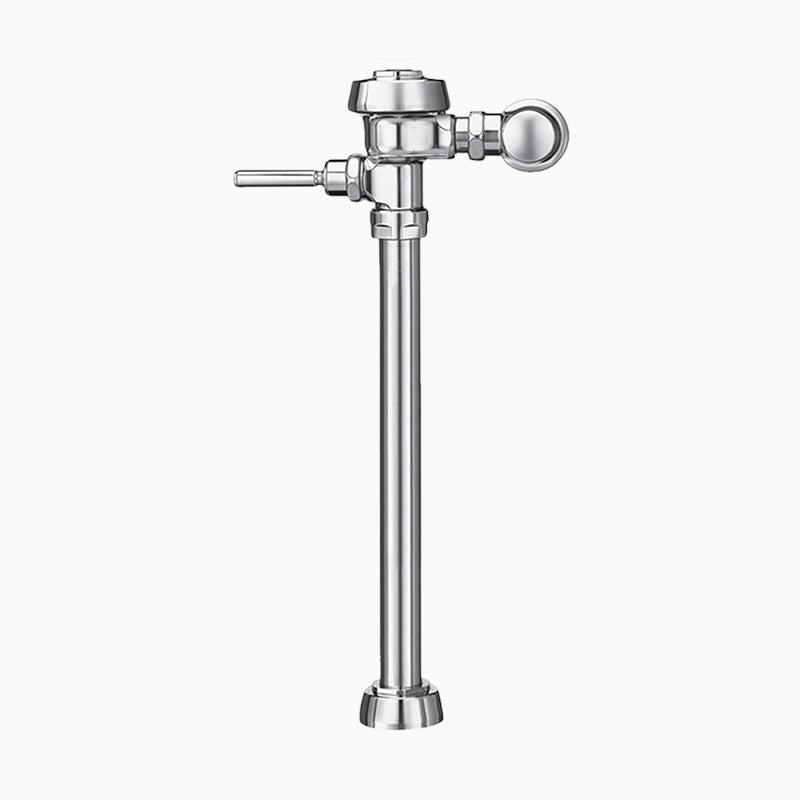

Sloan Royal 117 Exposed Manual Flushometer, with V600AA 36 in.

The Sloan Royal 117 is a manual diaphragm-type flush valve for a service sink. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 117 exposed service sink flushometer delivers 6.5 gpf with dezincification-resistant brass and ASSE 1037 compliance.

Options on this configuration: W/V600AA; 36; IN. Sloan's own price-list description: ROYAL 117 W / V600AA 36 IN.

Features

• Standard flush volume is 6.5 gpf /24.6 Lpf
• Flushometers may be ordered with a handle at the front or a push-button actuator
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a service sink.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 117
• Certifications: ASSE-1037
• Fixture Served: Service Sink
• Body Style: Exposed
