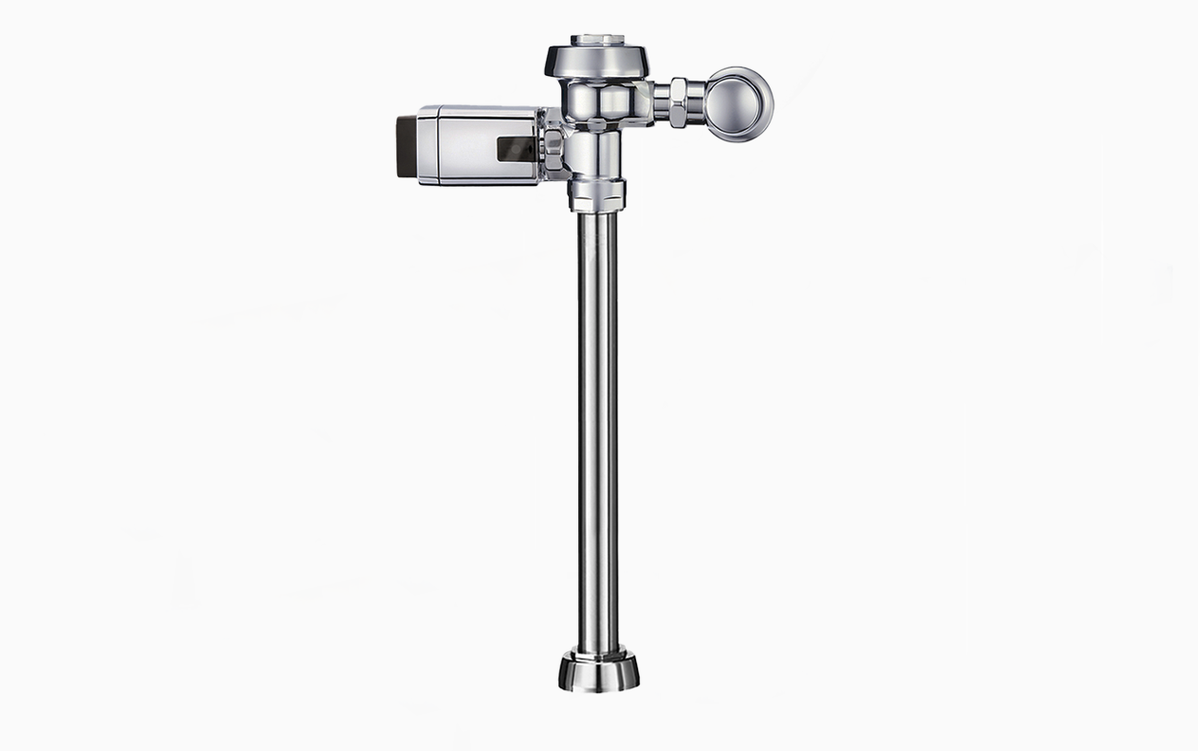

Sloan Royal 116 SFSM Exposed Battery-Powered Sensor Water Closet Flushometer (1.28 GPF) TMO

The Sloan ROYAL 116 SFSM-1.28-CP-TMO is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body.

ROYAL 116 SFSM: Exposed sensor flushometer for commercial water closets. ADA compliant, water-efficient, and BAA compliant. Polished chrome finish.

Options on this configuration: True Mechanical Override (TMO). Sloan model number: ROYAL 116 SFSM-1.28-CP-TMO.

Features

• 1.28 gpf, Polished Chrome Finish, 1.5" Flush Connection, Fixture Connection Top Spud, Single Flush, 1" Inlet, 1" Control Stop, True Mechanical Override, Battery, Infrared

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required. It has a true mechanical override, so it still flushes by hand if power is lost.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and WaterSense.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Operation: Sensor
• MPN: ROYAL 116 SFSM-1.28-CP-TMO
• Certifications: ADA, Buy American Act, IAPMO, WaterSense
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 14.5"
• Volume per Flush (gal): 1.28
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
• Sensor Type: Infrared
• Override Type: True Mechanical Override
• Sensing Range (in): 22"-42"
