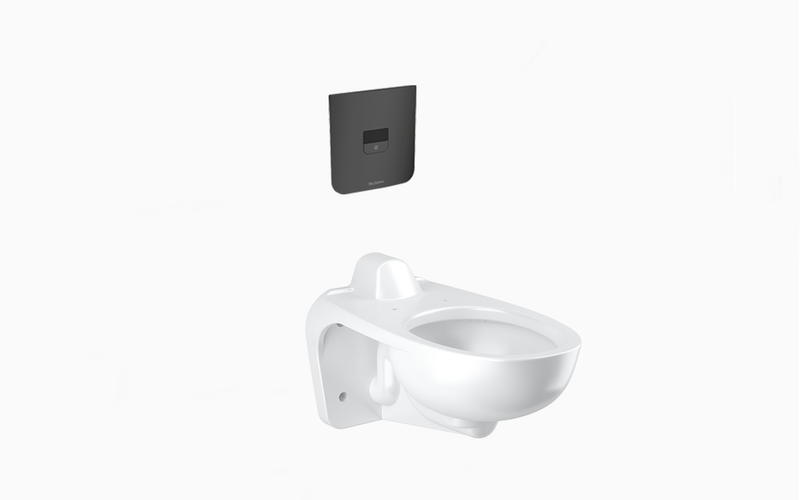

This is a complete water closet package: the ST-2469 vitreous china bowl paired with a CX 8158 flushometer. Seat is sold separately. It features a vitreous china body.
Features
- Standard
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- Sensor activated, hands-free operation
- Battery operated with hardwired option
- Electronic override button
- Low battery indicator light
- Vandal resistant wall plate
- Adjustable flush connection
- 8 1⁄2”(W) x 9 1⁄4”(H) Wall Box Panel Dimension
- Designed to maximize and complement Sloan flushometers
- Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
- Durable, hygienic vitreous china construction with elongated rim
- Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a CX 8158 flushometer.
- Is this floor-mounted or wall-mounted, and what rough-in does it need?
- Wall-mounted.
- What is the flush volume, and is it WaterSense certified?
- 1.28 gallons per flush (gpf).
- Is this a top spud or rear spud connection?
- Rear Spud.
Specifications
-
Type: Water Closet Combo
-
Body Material: Vitreous China
-
MPN: WETS-2460.3002
-
Certifications: Buy American Act
-
Bowl / Flush Action: Siphon Jet
-
MaP Score (g): 1000
-
Paired Flushometer: CX 8158
-
Fixture Served: Water Closet
-
Mount Type: Wall-Mount
-
Trim Finish: Graphite
-
Spud Connection: Rear Spud
-
Flush Volume (gal): 1.28
