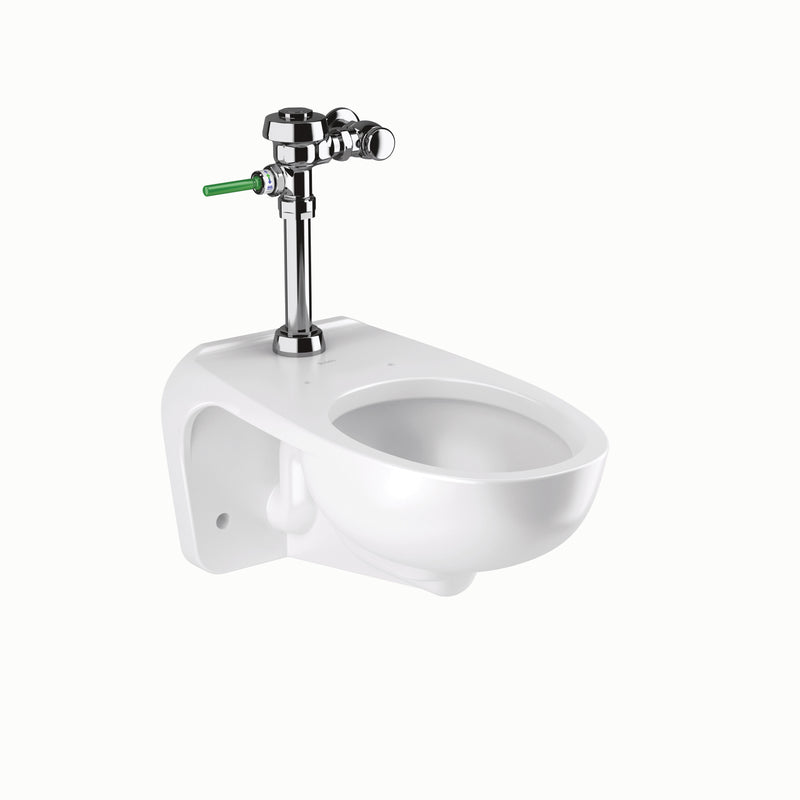

This is a complete water closet package: the ST-2459 vitreous china bowl paired with a WES 113 flushometer. Seat is sold separately. It features a vitreous china body.
Features
- Standard
- Maximum static load rating of 1,000 lbs when installed on an appropriate wall carrier support system (not recommended for bariatric use)
- Lift handle to initiate reduced, 1.1 gpf flush to eliminate liquid and paper waste, saving one-half gallon of water
- Push handle down for a regular 1.6 gpf flush to remove solid waste and paper
- Antimicrobial coating on handle lasts for the life of the product
- Green handle signifies UPPERCUT’s water-saving features
- Comes with two metal wall plates that provide operational instructions
- Includes all the reliable, long-lasting features of the Royal® Flushometer
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Designed to maximize and complement Sloan flushometers
- Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
- Durable, hygienic vitreous china construction with elongated rim
- Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a WES 113 flushometer.
- Is this floor-mounted or wall-mounted, and what rough-in does it need?
- Wall-mounted.
- What is the flush volume, and is it WaterSense certified?
- 1.1 to 1.6 gpf, depending on the flushometer it is paired with.
- Is this an ADA-height fixture?
- Yes, this is the ADA / comfort-height model.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
-
Type: Water Closet Combo
-
Body Material: Vitreous China
-
MPN: WETS-2452.1003
-
Certifications: ADA, Buy American Act, IAPMO
-
Bowl / Flush Action: Siphon Jet
-
MaP Score (g): 1000
-
Paired Flushometer: WES 113
-
Fixture Served: Water Closet
-
Mount Type: Wall-Mount
-
Trim Finish: Polished Chrome
-
Spud Connection: Top Spud
