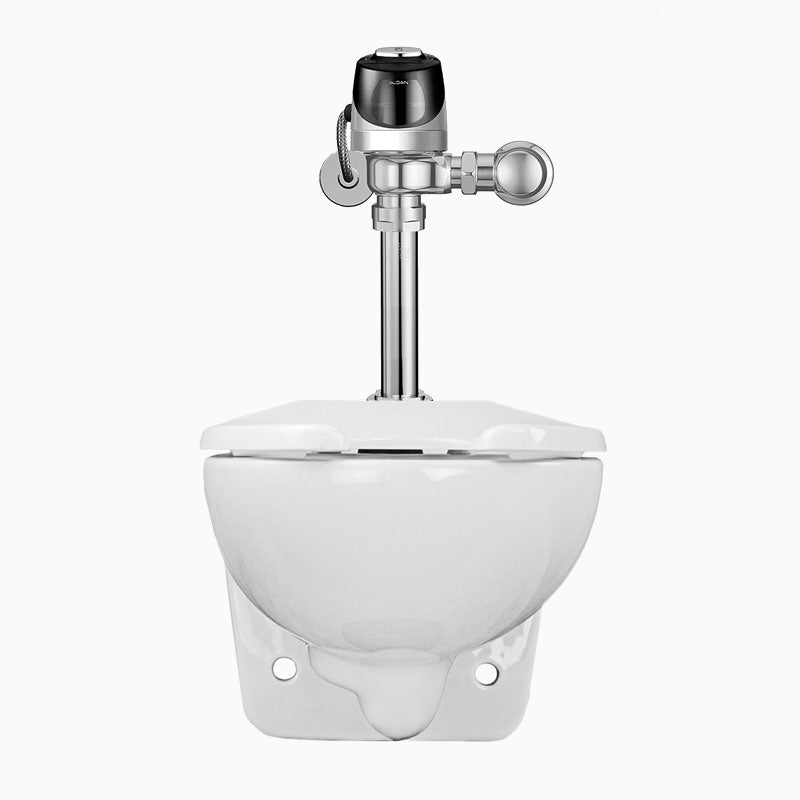

Sloan WETS-2451.1411-BPL Water Closet Combo, ST-2459 Wall-Mounted Top Spud with ECOS 111-1.1

This is a complete water closet package: the ST-2459 vitreous china bowl paired with a ECOS 111 flushometer. Seat is sold separately. It features a vitreous china body.

Features

• Bed Pan Lugs
• Maximum static load rating of 1,000 lbs when installed on an appropriate wall carrier support system (not recommended for bariatric use)
• Automatically initiates a 1.1 gpf or 1.6 gpf flush based on how long the user remains in sensor range
• Buttons on top of the flush valve enable manual flushing with a full or reduced flush at restroom visitor’s discretion
• Employs an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay
• High copper, low zinc brass castings for dezincification resistance
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Designed to maximize and complement Sloan flushometers
• Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
• Durable, hygienic vitreous china construction with elongated rim
• Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
• IAPMO certified to meet or exceed ASME A112.19.2 standards
• Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Common Questions

What flushometer comes with this combo, and is it sensor or manual?

This combo ships with a ECOS 111 flushometer, which is sensor-operated (touchless activation).

Is this floor-mounted or wall-mounted, and what rough-in does it need?

Wall-mounted.

What is the flush volume, and is it WaterSense certified?

1.1 gallons per flush (gpf). WaterSense certified.

Is this an ADA-height fixture?

Yes, this is the ADA / comfort-height model.

Is this a top spud or rear spud connection?

Top Spud.

Specifications

• Type: Water Closet Combo
• Body Material: Vitreous China
• MPN: WETS-2451.1411-BPL
• Certifications: ADA, IAPMO, WaterSense
• Bowl / Flush Action: Siphon Jet
• MaP Score (g): 1000
• Paired Flushometer: ECOS 111
• Fixture Served: Water Closet
• Mount Type: Wall-Mount
• Trim Finish: Polished Chrome
• Spud Connection: Top Spud
• Flush Volume (gal): 1.1
