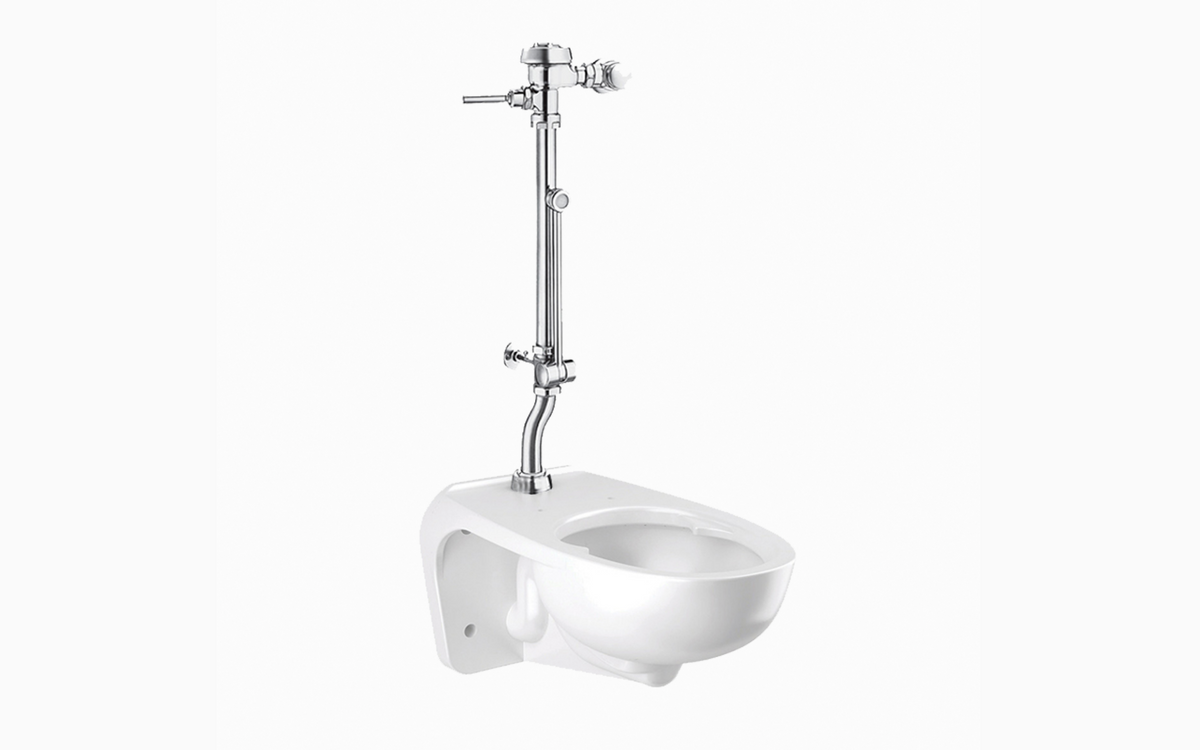

Sloan WETS-2450.2002 Water Closet Combo, ST-2459 Wall-Mounted Top Spud with Sloan 1150-1.28

This is a complete water closet package: the ST-2459 vitreous china bowl paired with a Sloan 1150 flushometer. Seat is sold separately. It features a vitreous china body.

Features

• Standard
• Maximum static load rating of 1,000 lbs when installed on an appropriate wall carrier support system (not recommended for bariatric use)
• Exposed water closet, diaphragm type, chrome-plated Flushometer for floor-mounted or wall-hung top spud bowls and for installation where clearance is required around grab bars
• Meets ADA height requirements
• Automatically operates by means of a self-adaptive infrared sensor
• Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
• Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
• Incorporates a patented one-piece construction body design, maintaining the spray arm in an upright position
• Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
• High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Designed to maximize and complement Sloan flushometers
• Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
• Durable, hygienic vitreous china construction with elongated rim
• Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
• IAPMO certified to meet or exceed ASME A112.19.2 standards
• Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Common Questions

What flushometer comes with this combo, and is it sensor or manual?

This combo ships with a Sloan 1150 flushometer.

Is this floor-mounted or wall-mounted, and what rough-in does it need?

Wall-mounted.

What is the flush volume, and is it WaterSense certified?

1.28 gallons per flush (gpf).

Is this an ADA-height fixture?

Yes, this is the ADA / comfort-height model.

Is this a top spud or rear spud connection?

Top Spud.

Specifications

• Type: Water Closet Combo
• Body Material: Vitreous China
• MPN: WETS-2450.2002
• Certifications: ADA, Buy American Act, IAPMO
• Bowl / Flush Action: Siphon Jet
• MaP Score (g): 1000
• Paired Flushometer: Sloan 1150
• Fixture Served: Water Closet
• Mount Type: Wall-Mount
• Trim Finish: Polished Chrome
• Spud Connection: Top Spud
• Flush Volume (gal): 1.28
