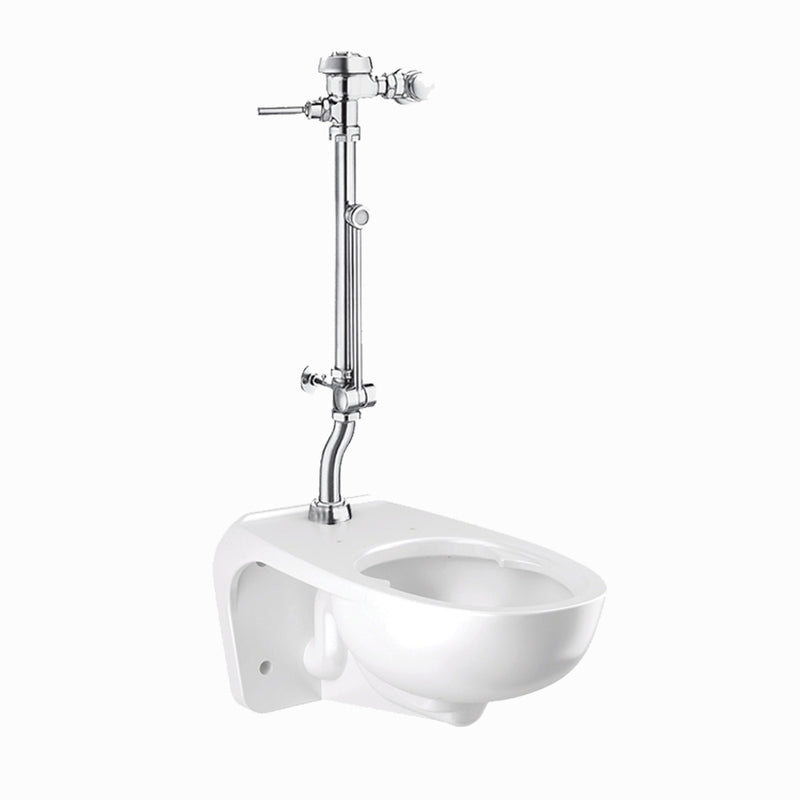

This is a complete water closet package: the ST-2459BPL vitreous china bowl paired with a Royal 1150 flushometer. Seat is sold separately. It features a vitreous china body.
Features
- Standard
- Maximum static load rating of 1,000 lbs when installed on an appropriate wall carrier support system (not recommended for bariatric use)
- Exposed water closet, diaphragm model Flushometer is intended for floor-mounted or wall-hung top spud bowls
- Incorporates a patented one-piece construction body design, maintaining the spray arm in an upright position
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Designed to maximize and complement Sloan flushometers
- Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
- Durable, hygienic vitreous china construction with elongated rim
- Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a Royal 1150 flushometer.
- Is this floor-mounted or wall-mounted, and what rough-in does it need?
- Wall-mounted.
- What is the flush volume, and is it WaterSense certified?
- 1.28 gallons per flush (gpf).
- Is this an ADA-height fixture?
- Yes, this is the ADA / comfort-height model.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
-
Type: Water Closet Combo
-
Body Material: Vitreous China
-
MPN: WETS-2450.2001
-
Certifications: ADA, Buy American Act
-
Bowl / Flush Action: Siphon Jet
-
MaP Score (g): 1000
-
Paired Flushometer: Royal 1150
-
Fixture Served: Water Closet
-
Mount Type: Wall-Mount
-
Trim Finish: Polished Chrome
-
Spud Connection: Top Spud
-
Flush Volume (gal): 1.28
