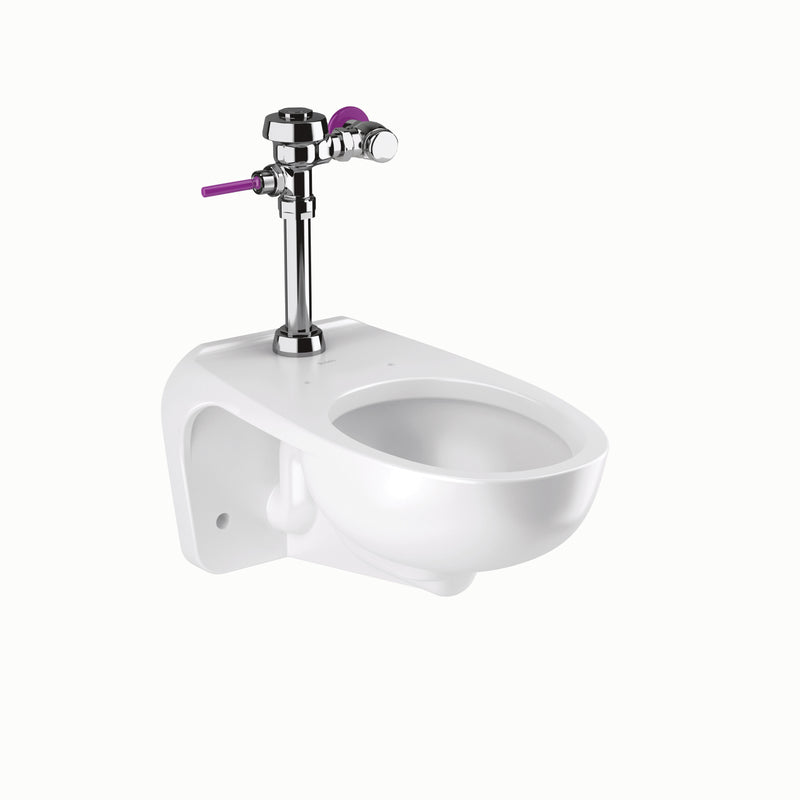

This is a complete water closet package: the ST-2459 vitreous china bowl paired with a Royal 111 flushometer. Seat is sold separately. It features a vitreous china body.
Features
- Standard
- Maximum static load rating of 1,000 lbs when installed on an appropriate wall carrier support system (not recommended for bariatric use)
- Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use.
- All organic rubber has been replaced with synthetic compounds
- Interior components are purple to let maintenance personnel know the flushometer is designed for reclaimed water
- Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
- Optional purple handle provides additional indication of reclaimed water use.
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Designed to maximize and complement Sloan flushometers
- Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
- Durable, hygienic vitreous china construction with elongated rim
- Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a Royal 111 flushometer, which is manually operated (handle flush).
- Is this floor-mounted or wall-mounted, and what rough-in does it need?
- Wall-mounted.
- What is the flush volume, and is it WaterSense certified?
- 1.28 gallons per flush (gpf). WaterSense certified.
- Is this an ADA-height fixture?
- Yes, this is the ADA / comfort-height model.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
-
Type: Water Closet Combo
-
Body Material: Vitreous China
-
MPN: WETS-2450.1051
-
Certifications: ADA, Buy American Act, CALGreen, CEC, IAPMO, WaterSense
-
Bowl / Flush Action: Siphon Jet
-
MaP Score (g): 1000
-
Paired Flushometer: Royal 111
-
Fixture Served: Water Closet
-
Mount Type: Wall-Mount
-
Trim Finish: Polished Chrome
-
Spud Connection: Top Spud
-
Flush Volume (gal): 1.28
