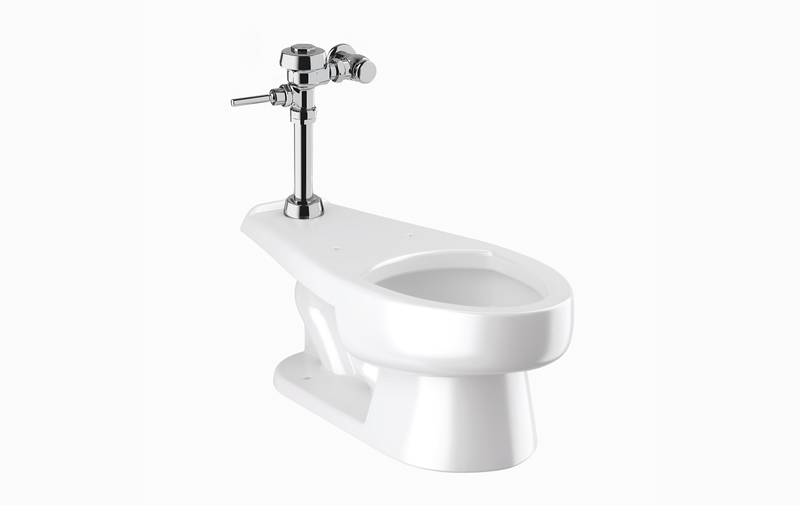

This is a complete water closet package: the ST-2309 vitreous china bowl paired with a Royal 111 flushometer. Seat is sold separately. It features a vitreous china body.
Features
- Standard
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Designed to maximize and complement Sloan flushometers
- 10-3/4" rim height is ideal for daycare centers and grammar schools
- Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
- Durable, hygienic vitreous china construction with elongated rim
- Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
- IAPMO certified to meet or exceed ASME A112.19.2 standards
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a Royal 111 flushometer, which is manually operated (handle flush).
- Is this floor-mounted or wall-mounted, and what rough-in does it need?
- Floor-mounted.
- What is the flush volume, and is it WaterSense certified?
- 1.6 gallons per flush (gpf).
- What rim height class is this?
- Junior.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
-
Type: Water Closet Combo
-
Body Material: Vitreous China
-
MPN: WETS-2302.2002
-
Certifications: CALGreen, CEC
-
Bowl / Flush Action: Siphon Jet
-
Rim Height: Junior
-
MaP Score (g): 1000
-
Paired Flushometer: Royal 111
-
Fixture Served: Water Closet
-
Mount Type: Floor
-
Trim Finish: Polished Chrome
-
Spud Connection: Top Spud
-
Flush Volume (gal): 1.6
