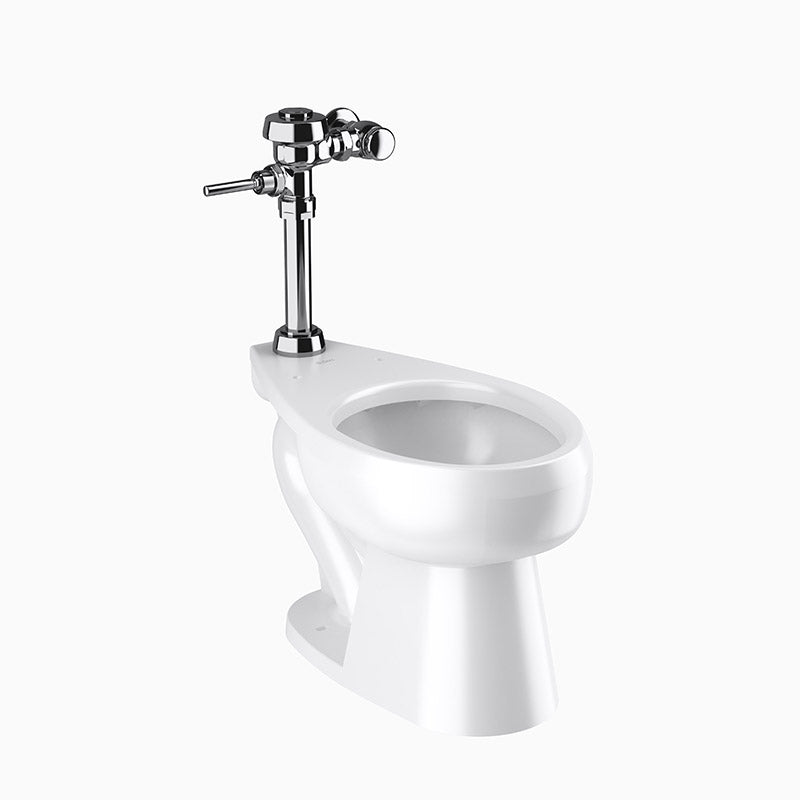

Sloan WETS-2020.1001-CN Water Closet Combo, ST-2029 Floor-Mounted Top Spud with Royal 111-1.28

This is a complete water closet package: the ST-2029 vitreous china bowl paired with a Royal 111 flushometer. Seat is sold separately. It features a vitreous china body.

Features

• Carbon Neutral
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Designed to maximize and complement Sloan flushometers
• Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
• Durable, hygienic vitreous china construction with elongated rim
• Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
• IAPMO certified to meet or exceed ASME A112.19.2 standards
• Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Common Questions

What flushometer comes with this combo, and is it sensor or manual?

This combo ships with a Royal 111 flushometer, which is manually operated (handle flush).

Is this floor-mounted or wall-mounted, and what rough-in does it need?

Floor-mounted.

What is the flush volume, and is it WaterSense certified?

1.28 gallons per flush (gpf).

Is this an ADA-height fixture?

Yes, this is the ADA / comfort-height model.

Is this a top spud or rear spud connection?

Top Spud.

Specifications

• Type: Water Closet Combo
• Body Material: Vitreous China
• MPN: WETS-2020.1001-CN
• Certifications: ADA, Buy American Act, IAPMO
• Bowl / Flush Action: Siphon Jet
• Rim Height: ADA Height
• MaP Score (g): 1000
• Paired Flushometer: Royal 111
• Fixture Served: Water Closet
• Mount Type: Floor
• Trim Finish: Polished Chrome
• Spud Connection: Top Spud
• Flush Volume (gal): 1.28
