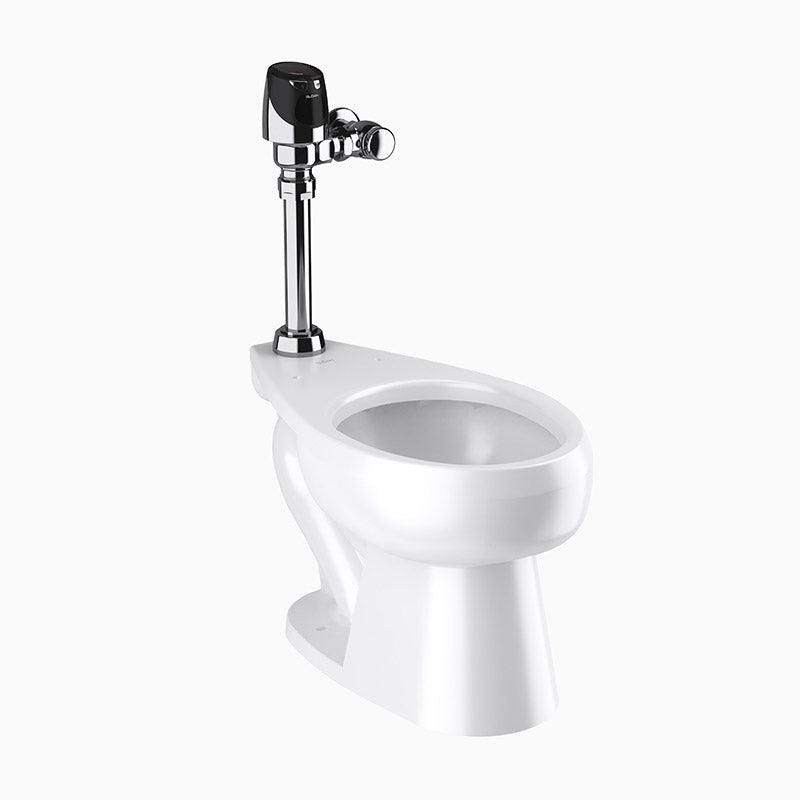

Sloan WETS-2002.1201-CN Water Closet Combo, ST-2009 Floor-Mounted Top Spud with SOLIS 8111

This is a complete water closet package: the ST-2009 vitreous china bowl paired with a SOLIS 8111 flushometer. Seat is sold separately. It features a vitreous china body.

Features

• Carbon Neutral
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• User friendly three (3) second Flush Delay
• “Low Battery” Flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• State-of-the-art photovoltaic technology delivers solar operation
• Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Designed to maximize and complement Sloan flushometers
• Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
• Durable, hygienic vitreous china construction with elongated rim
• Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
• IAPMO certified to meet or exceed ASME A112.19.2 standards

Common Questions

What flushometer comes with this combo, and is it sensor or manual?

This combo ships with a SOLIS 8111 flushometer, which is sensor-operated (touchless activation).

Is this floor-mounted or wall-mounted, and what rough-in does it need?

Floor-mounted.

What is the flush volume, and is it WaterSense certified?

1.1 to 1.6 gpf, depending on the flushometer it is paired with.

What rim height class is this?

Standard Height.

Is this a top spud or rear spud connection?

Top Spud.

Specifications

• Type: Water Closet Combo
• Body Material: Vitreous China
• MPN: WETS-2002.1201-CN
• Certifications: Buy American Act, IAPMO
• Bowl / Flush Action: Siphon Jet
• Rim Height: Standard Height
• MaP Score (g): 1000
• Paired Flushometer: SOLIS 8111
• Fixture Served: Water Closet
• Mount Type: Floor
• Trim Finish: Polished Chrome
• Spud Connection: Top Spud
