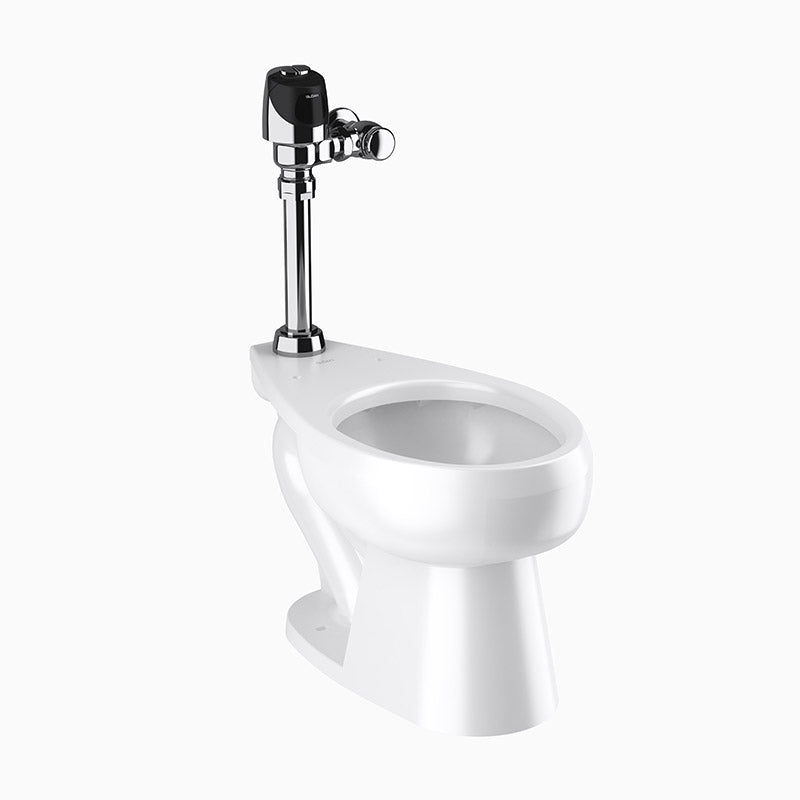

Sloan WETS-2001.1101-CN Water Closet Combo, ST-2009 Floor-Mounted Top Spud with ECOS 8111-1.1

This is a complete water closet package: the ST-2009 vitreous china bowl paired with a ECOS 8111 flushometer. Seat is sold separately. It features a vitreous china body.

Features

• Carbon Neutral
• Dual-flush model automatically initiates a reduced or complete flush based on how long user remains in sensor range, buttons on top of the flush valve enable manual flushing with a standard or reduced flush at restroom visitor’s discretion
• Deploys an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• User-friendly, three-second flush delay
• High copper, low zinc brass castings for dezincification resistance
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Designed to maximize and complement Sloan flushometers
• Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
• Durable, hygienic vitreous china construction with elongated rim
• Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
• IAPMO certified to meet or exceed ASME A112.19.2 standards
• WaterSense compliant when used with a WaterSense compliant flushometer

Common Questions

What flushometer comes with this combo, and is it sensor or manual?

This combo ships with a ECOS 8111 flushometer, which is sensor-operated (touchless activation).

Is this floor-mounted or wall-mounted, and what rough-in does it need?

Floor-mounted.

What is the flush volume, and is it WaterSense certified?

1.1 gallons per flush (gpf).

Is this an ADA-height fixture?

Yes, this is the ADA / comfort-height model.

Is this a top spud or rear spud connection?

Top Spud.

Specifications

• Type: Water Closet Combo
• Body Material: Vitreous China
• MPN: WETS-2001.1101-CN
• Certifications: ADA
• Bowl / Flush Action: Siphon Jet
• Rim Height: Standard Height
• MaP Score (g): 1000
• Paired Flushometer: ECOS 8111
• Fixture Served: Water Closet
• Mount Type: Floor
• Trim Finish: Polished Chrome
• Spud Connection: Top Spud
• Flush Volume (gal): 1.1
• Dual Flush: Yes
