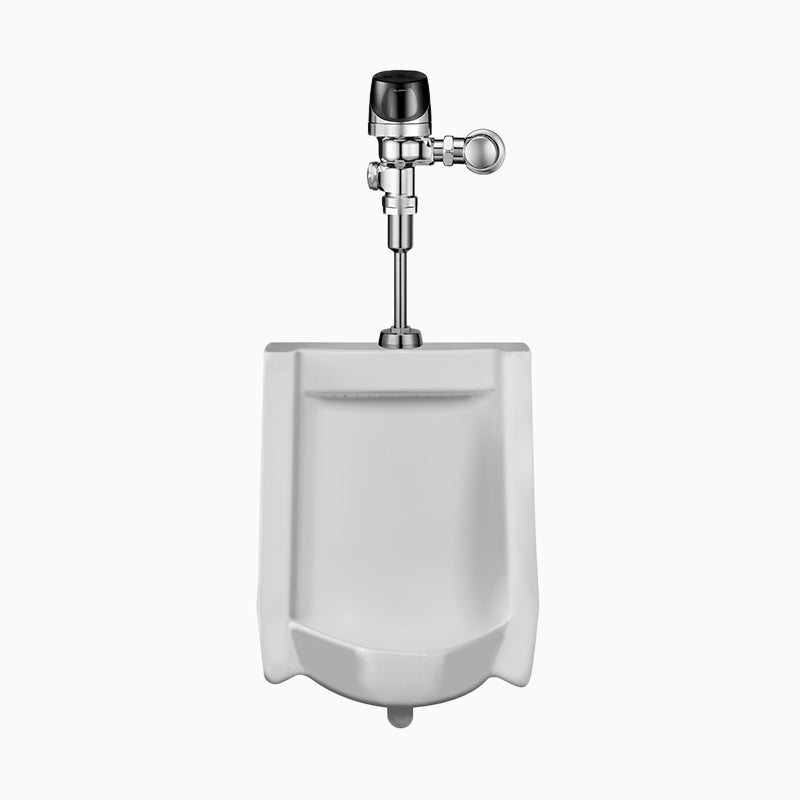

This is a complete urinal package: the SU-1209 vitreous china bowl paired with a ECOS 8186 flushometer. It features a vitreous china body.
Features
- Carbon Neutral
- Water-efficient flush volume of either .13 gpf or .25 gpf
- Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- User-friendly, three-second flush delay
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Designed to maximize and complement Sloan flushometers
- Oversized footprint is ideal for retrofit jobs to cover old caulk lines
- Universal high-efficiency model works with 0.125, 0.25 and 0.5 gpf Sloan flushometers
- Thorough washdown flushing action
- Vandal resistant stainless steel strainer included
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Water Sense listed by EPA that qualifies for most rebate programs
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a ECOS 8186 flushometer, which is sensor-operated (touchless activation).
- What is the flush volume, and is it WaterSense certified?
- 0.125 gallons per flush (gpf). WaterSense certified.
- Is this an ADA-height fixture?
- Yes, this is the ADA / comfort-height model.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
-
Type: Urinal Combo
-
Body Material: Vitreous China
-
MPN: WEUS-1200.1410-CN
-
Certifications: ADA, CALGreen, IAPMO, WaterSense
-
Bowl / Flush Action: Wash Down
-
Paired Flushometer: ECOS 8186
-
Fixture Served: Urinal
-
Trim Finish: Polished Chrome
-
Spud Connection: Top Spud
-
Flush Volume (gal): 0.125
