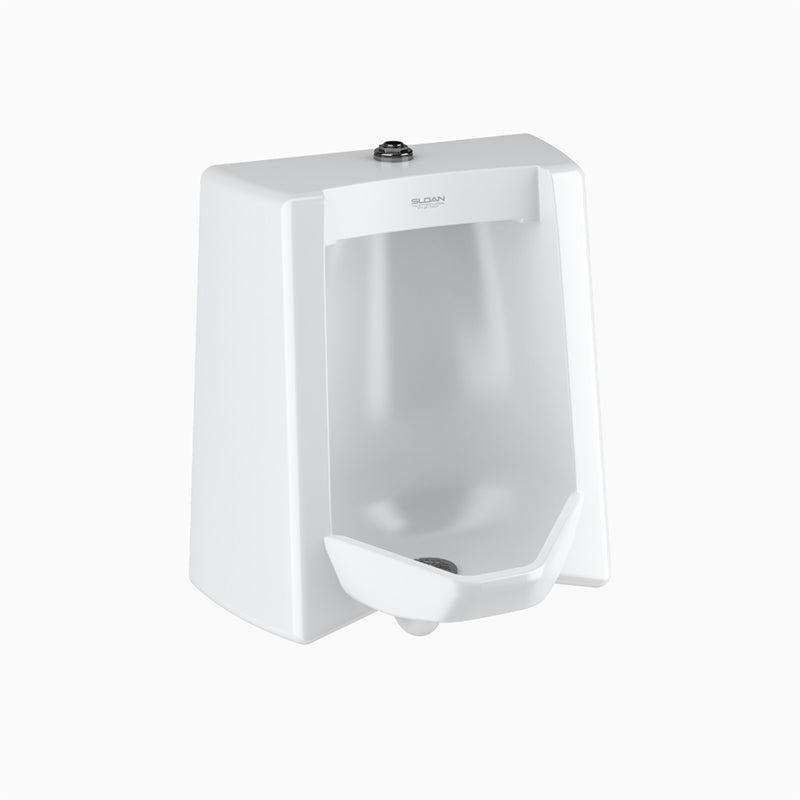

The Sloan SU-1209-CN is an urinal (vitreous china bowl only, no flushometer included), Wash Down. Works with flushometers from 0.125 to 1.0 gpf. It features a vitreous china body.
Features
- Carbon Neutral
- Designed to maximize and complement Sloan flushometers
- Oversized footprint is ideal for retrofit jobs to cover old caulk lines
- Universal high-efficiency model works with 0.125, 0.25 and 0.5 gpf Sloan flushometers
- Thorough washdown flushing action
- Vandal resistant stainless steel strainer included
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Water Sense listed by EPA that qualifies for most rebate programs
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What is the flush volume, and is it WaterSense certified?
- 0.125 to 1.0 gpf, depending on the flushometer it is paired with. WaterSense certified.
- Is this an ADA-height fixture?
- Yes, this is the ADA / comfort-height model.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
-
Type: Urinal
-
Body Material: Vitreous China
-
MPN: SU-1209-CN
-
Certifications: ADA, CALGreen, IAPMO, WaterSense
-
Bowl / Flush Action: Wash Down
-
Spud Connection: Top Spud
-
Overall Length (in): 14.5
-
Overall Width (in): 20.75
-
Overall Height (in): 25.25
