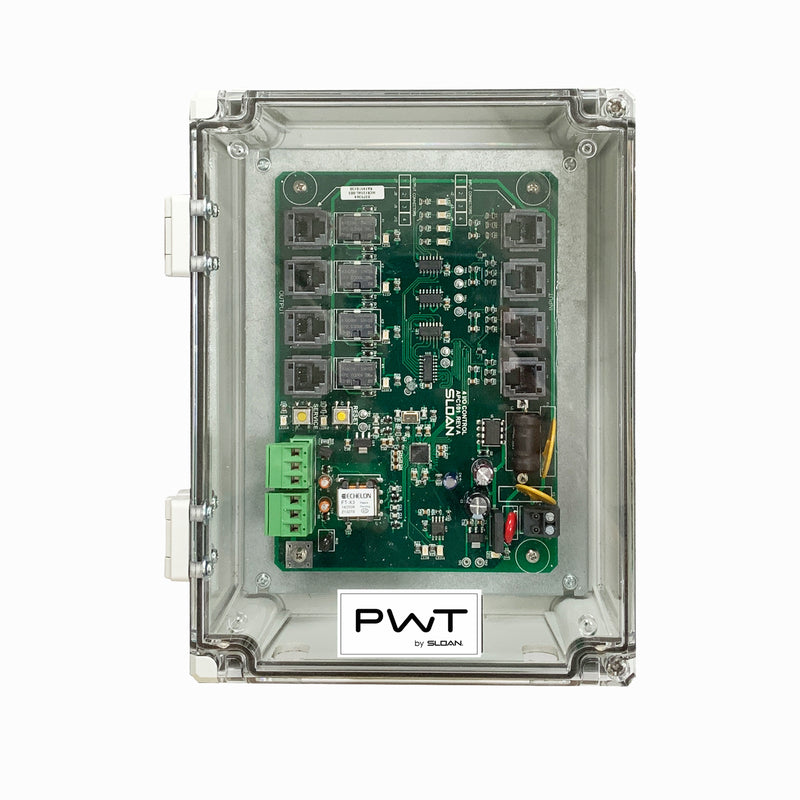

The Sloan MCR-4001 is a controller, a Sloan Valve genuine replacement part.
Features
- Standard
- Four input/output controller used with PWT push buttons, electronic flushometers and solenoids to control water closets, lavatories and showers.
- Can connect to a computer managed, FT-10 (twisted pair) network.Operates on 24 VAC–50/60 Hz
- Can operate as “Stand Alone” controller or integrated into a computer managed network with PWT Water Management Software
- LonMark compliant
- RJ-11, 6 position, 4 pin connections for all input and output devices
- Plug-in type terminal blocks with screw clamp wire connections for network twisted pair wire connections
- Fuse protection on 24 VAC power supply
- Patented delay and lockout capabilities on water closet
- Delay before and/or after runtime available on lavatories and showers
- Input and output diagnostic LEDs
Common Questions
- What flush valves does this part fit?
- Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.
- Is this a genuine Sloan part?
- Yes. The MCR-4001 is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.
Specifications
-
MPN: MCR-4001
-
Certifications: Buy American Act
-
Product Role: Controller
-
Accessory Type: Controller
