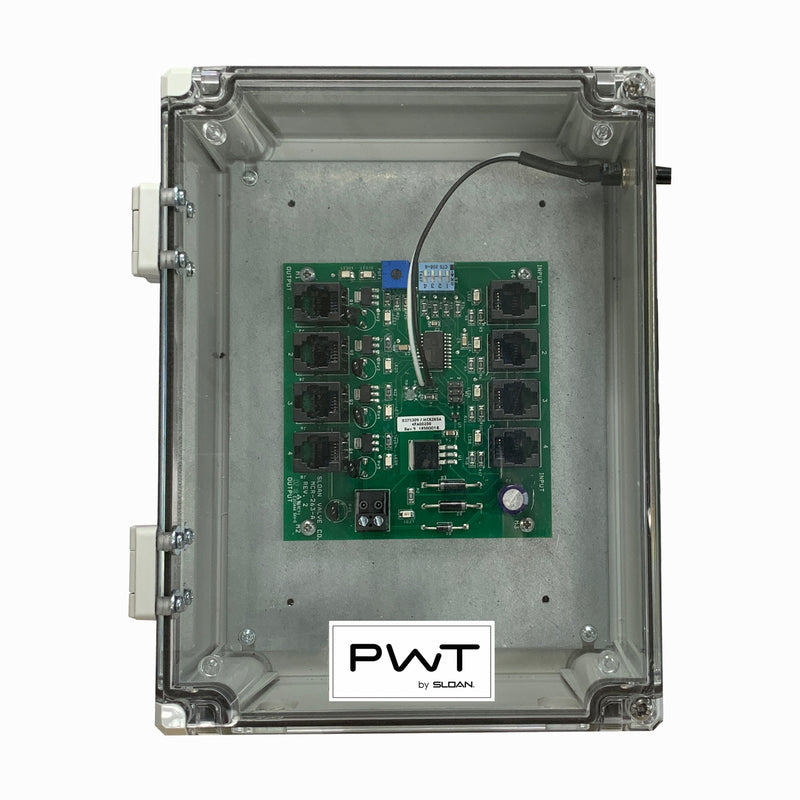

The Sloan MCR4004-PSC is a controller, a Sloan Valve genuine replacement part.
Features
- Four input/output field-programmable controller to control lavatories, water closets, showers or combination fixtures
- 24 VAC — 50/60 Hz operating voltage
- Operating temperature: 0°C to 85°C
- Input (push button) voltage: 5 VDC
- Output (solenoid) voltage: 24 VAC
- PC Board conformably coated to resist moisture and dust
- RJ-11, 6 position, 4 pin connections for push buttons and solenoids
- Diagnostic LED at each input and output connection
- Lock-out indicator
- Potentiometer on PC Board allows for adjustment of run-times or lock-out times depending on program variation
- Can be installed up to 200 feet away from 24 VAC power supply
- Includes mounting hardware
- Optional LED Button for Water Closet I/O PROGRAM CONFIGURATIONS
- All Closet, with adjustable lock out time up to four water closets
- All Shower, with adjustable default “run time” up to four showers
- All Lavatories, with adjustable default “run time” up to four lavatories
- Combination fixture controls a hot/cold water lavatory, a water closet and a shower. Adjustable default “run time” and “lock-out times”. Factory set for 1-hour lock-out time.
Common Questions
- What flush valves does this part fit?
- Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.
- Is this a genuine Sloan part?
- Yes. The MCR4004-PSC is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.
Specifications
-
MPN: MCR4004-PSC
-
Product Role: Controller
-
Accessory Type: Controller
