Sloan MCR-101-CA PWT System Single-Line Mixing Manifold

The Sloan MCR-101-CA is a manifold, a Sloan Valve genuine replacement part.

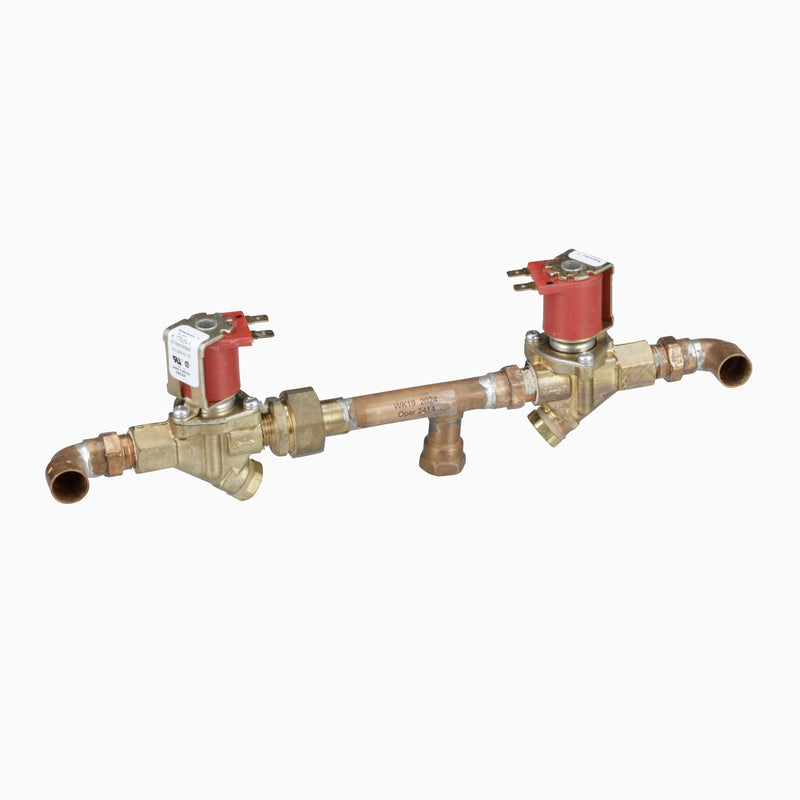

The Sloan MCR-101-A Single-Line Mixing Manifold is used with the Sloan PWT System to manage water usage and activations. The MCR-101-A manifold contains two electronically activated solenoids used to supply hot, cold, and mixed water to a single plumbing fixture. The manifold contains 1/2" pipe copper solder unions at water inlets and a soft nose union between solenoids. The MCR-101-A solenoid operating voltage is 24 VAC – 50/60 Hz. The unit includes 15’ cable w/ 6 position, 4 pin RJ-11 connector to connect to Sloan PWT MCR-Series Controllers. The MCR-101-A is a high-quality and durable copper body mixing manifold designed for use with large commercial facilities looking to manage water usage and activations with the Sloan PWT Systems.

Features

• PWT System Single-Line Mixing Manifold
• 160 Fahrenheit Maximum water temperature
• ETF-1003-36 3’ single wire extension cord kit
• ETF-1003-108 9’ single wire extension cord kit
• ETF-1003-240 20’ Single wire extension cord kit
• ETF-1003-600 50’ single wire extension cord kit
• Manifold containing two electronically activated solenoids used to supply hot, cold and mixed water to a lavatory fixture
• 1/2 Inch Pipe Copper Solder Unions at water inlets
• Soft Nose Union between solenoids
• Two 3/8 NPT to 3/8 Tube
• One 0.5 gpm Flow Orifice
• One 3/8 NPT to 3/8 NPT Coupling
• 10 feet 3/8 OD Nylon Tubing
• 24 VAC – 50/60 Hz Solenoid Operating Voltage, 12 VA (500mA) In Rush; Holding 4.63 VA (193 mA), 7W Consumption
• Brass body with integral ‘Y’ strainer (80 Mesh)
• Stainless Steel Valve Seat
• Includes 15’ cable w/ 6 position, 4 pin RJ-11 connector to connect to Sloan MCR-Series Controller
• Solenoid cable length can be increased to a maximum overall length of 200 feet with additional PWT extension cord kits

Common Questions

What flush valves does this part fit?

Sloan's own parts data does not name a specific series for this exact code. Confirm fit against your flushometer's model number before ordering, or contact CSG to verify.

Is this a genuine Sloan part?

Yes. The MCR-101-CA is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.

Specifications

• MPN: MCR-101-CA
• Certifications: Buy American Act
• Product Role: Manifold
• Accessory Type: Manifold
