Sloan EL-646-A Concealed ES-S SWB TMO Water Closet Electronic Wall Box Assembly

The Sloan EL-646-A is a wall box for Royal ESS SWB TMO.

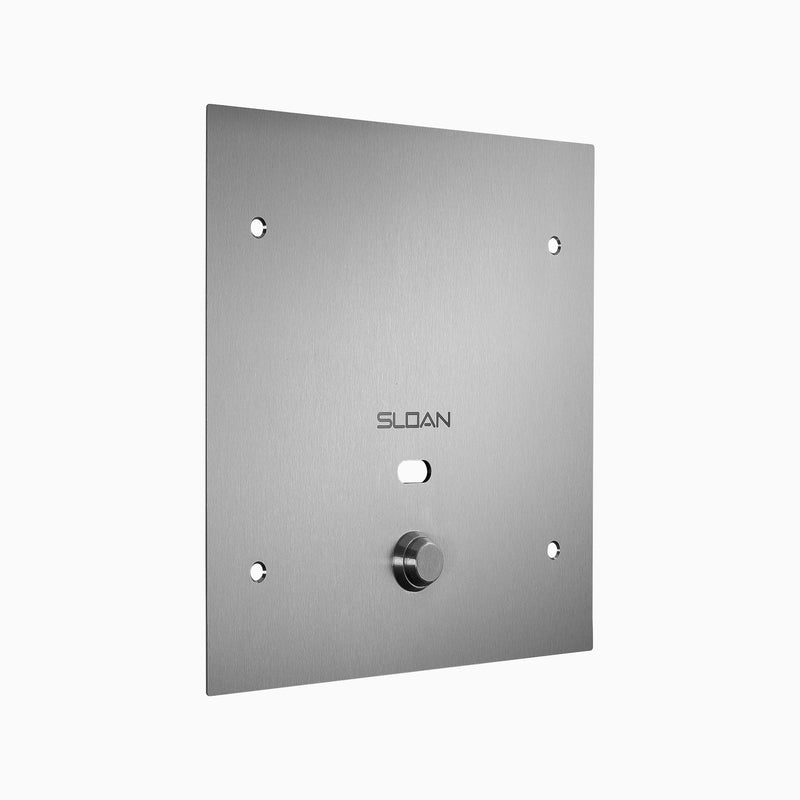

The EL-646-A electronic wall box assembly is a replacement kit for concealed Royal® or Sloan® Optima® ES-S SWB TMO (electronic solenoid sensor small wall box true mechanical override) water closet style flushometers. The EL-646-A repair kit assembly includes the sensor, frame, hydraulic override and mounting kit is intended for concealed electronic ES-S SWB TMO flushometers. The EL-1500-L sensor and push button actuator will be located on the lower half of the stainless steel wall plate and operates with a 24V electrical supply. The 13-1/2x13-1/2 wall box panel assembly provides front access to the flushometer. Sloan offers additional sensors and repair parts based on your flushometer needs.

Features

• Concealed ES-S SWB TMO Water Closet Electronic Wall Box Assembly
• Brand Model Compatibility: Sloan®/Royal®/SOLIS® Optima® ES-S SWB TMO flushometer
• Replacement sensor wall box epair kit assembly for water closet flushometers
• 12x12 wall box frame

Common Questions

What flush valves does this part fit?

Sloan's own parts data lists this as fitting Royal ESS SWB TMO. Match the model or series stamped on your existing flushometer before ordering -- Sloan changes internal parts between series, so a wrong part number is a common return.

Is this a genuine Sloan part?

Yes. The EL-646-A is a factory-original Sloan Valve Company replacement part, not an aftermarket equivalent.

Specifications

• MPN: EL-646-A
• Product Role: Wall Box
• Fits Series: Royal ESS SWB TMO
