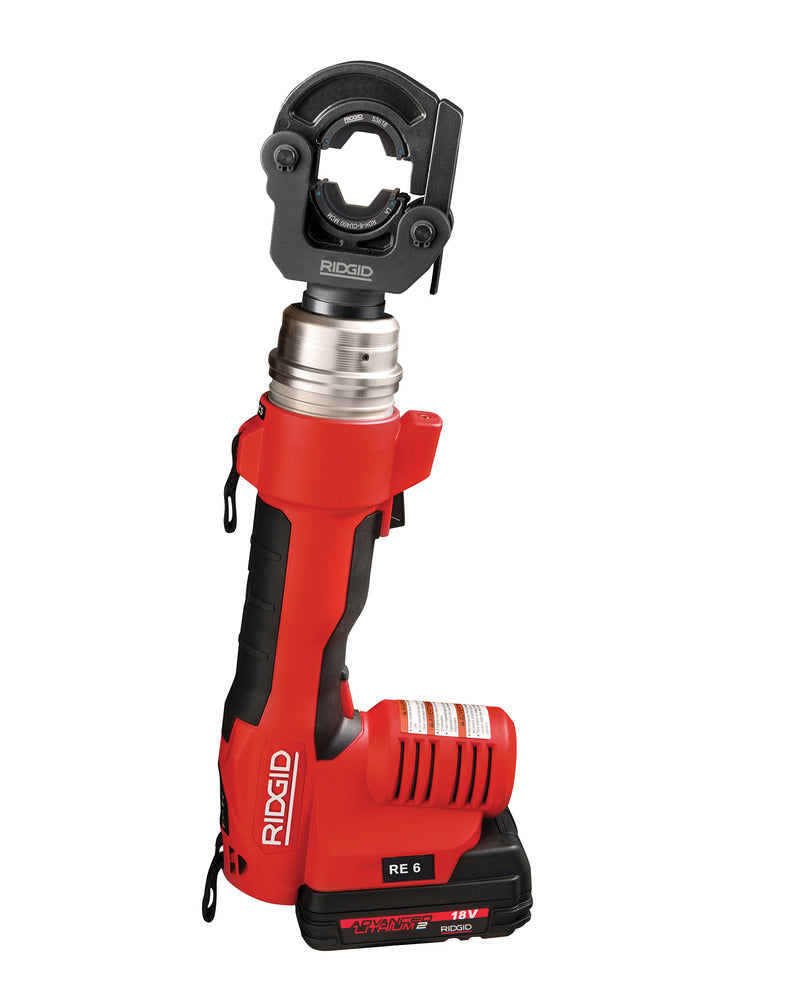

RIDGID 47753 LR-60B Latching Round Crimp Head, 6 Ton

The RIDGID 47753 is the LR-60B latching round crimp head. It takes 6 ton U dies, is classified to UL 1976 and crimps copper to 600 kcmil and aluminum to 350 kcmil. Dies are sold separately.

LR-60B Latching Round Crimp Head is used with round shaped crimp dies to crimp copper and aluminum connectors and wire for cable termination.

Features

• Classified to UL 1976 for Copper Connectors and Wire From #8AWG to 600 Kcmil and Aluminum Connectors and Wire From #8AWG to 350 Kcmil
• Quick release latching system for maximum efficiency
• Crimp dies quickly snap into head – no push button or adapters to change dies
• Slim compact design and 360° head rotation enables access to tight spaces
• Compatible with 6 Ton dies from RIDGID and other manufacturers*
• LR-60B designed for 6-Ton U Dies ONLY

Common Questions

Are dies included?

No. This is the head only. It takes 6 ton U dies, sold separately.

Is it UL classified?

RIDGID states it is classified to UL 1976 for copper connectors and wire from #8 AWG to 600 kcmil and aluminum connectors and wire from #8 AWG to 350 kcmil.

Specifications

• Country of Origin: Switzerland
• MPN: 47753
• Certifications: UL-1976
• Force (tons): 6
• Conductor Size: #8 AWG - 600 kcmil (Cu), #8 AWG - 350 kcmil (Al)
• Conductor Material: Copper/Aluminum
• Die Style: U
