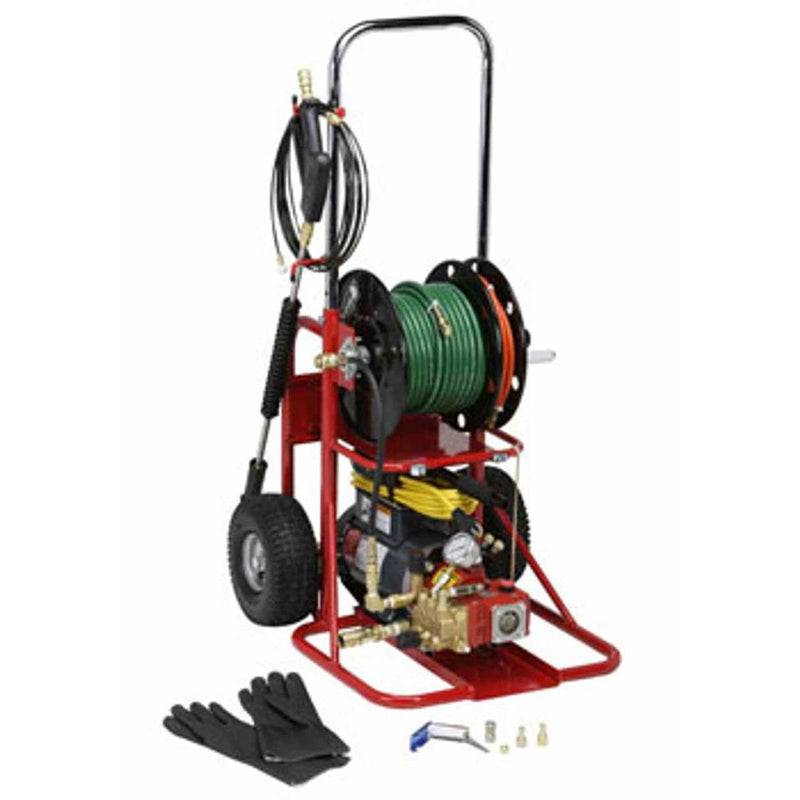

Spartan Tool Model 717 Cart Jetter 71700000

The Spartan Tool Model 717 Cart Jetter is a cart sewer jetter rated 1500 PSI at 2.2 GPM for 1-1/4" - 6" lines.

Y ou don't have to be big to pack a punch. The Model 717 boasts all the muscle you need for even the toughest small line jobs in one compact design. The 717 delivers up to 1,500 PSI at 2.2 GPM with a maximum draw of 19 amps and a power pack that disengages for optimum maneuverability. Spartan's patented pulse technology reduces friction to continuously drive hose through the line, regardless of what you're up against. Standard Hoses cleaning hose; 25' of 3/16" thermoplastic trap-cleaning hose; 25' of ultra-lite thermoplastic hose motor with thermal overload protection Maximum Electric Draw Standard Hoses cleaning hose; 75' of 3/16" thermoplastic trap-cleaning hose engine with manual and electric start

Features

• Dual hose reel
• Easy-ride 10" pneumatic tires
• 6 nozzles and nozzle-cleaning tool included
• Wash-down gun and lance
• Gauntlet-style jetting gloves included
• 25' power cord with ground fault interrupter
• Triplex ceramic plunger pump has adjustable pressure regulator for up to
• Patented pulse technology reduces friction, continuously moves hose down the line and improves hose retrieval
• Electric-start motor with manual backup and direct drive
• Detachable dual-action hose reel tilts forward for use in cleanouts below the cart and removes so you can take it indoors

Common Questions

What pipe sizes does this jetter clean?

It is rated for 1-1/4" - 6" lines.

What pressure and flow does it deliver?

1500 PSI at 2.2 GPM, the pump's rated output.

Is this gas or diesel?

Neither -- this is a electric (corded) unit.

What hoses come standard with this unit?

115' of 1/4" high pressure cleaning hose; 25' of 3/16" thermoplastic trap-cleaning hose; 25' of ultra-lite thermoplastic hose

What electrical service does it need?

20 AMP service (14 amps at 1,250 PSI; 19 amps at 1,500 PSI).

Specifications

• Type: Sewer Jetter
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 71700000
• Pipe Size Range: 1-1/4" - 6"
• Rated Pressure (PSI): 1500
• Flow Rate (GPM): 2.2
• Fuel / Power: Electric (Corded)
• Engine HP: 2
• Standard Hoses: 115' of 1/4" high pressure cleaning hose 25' of 3/16" thermoplastic trap-cleaning hose 25' of ultra-lite thermoplastic hose
• Electrical Requirement: 20 AMP service (14 amps at 1,250 PSI; 19 amps at 1,500 PSI)
• Overall Length (in): 21.25
• Overall Width (in): 34.0
• Overall Height (in): 47.5
