Specifications
Description

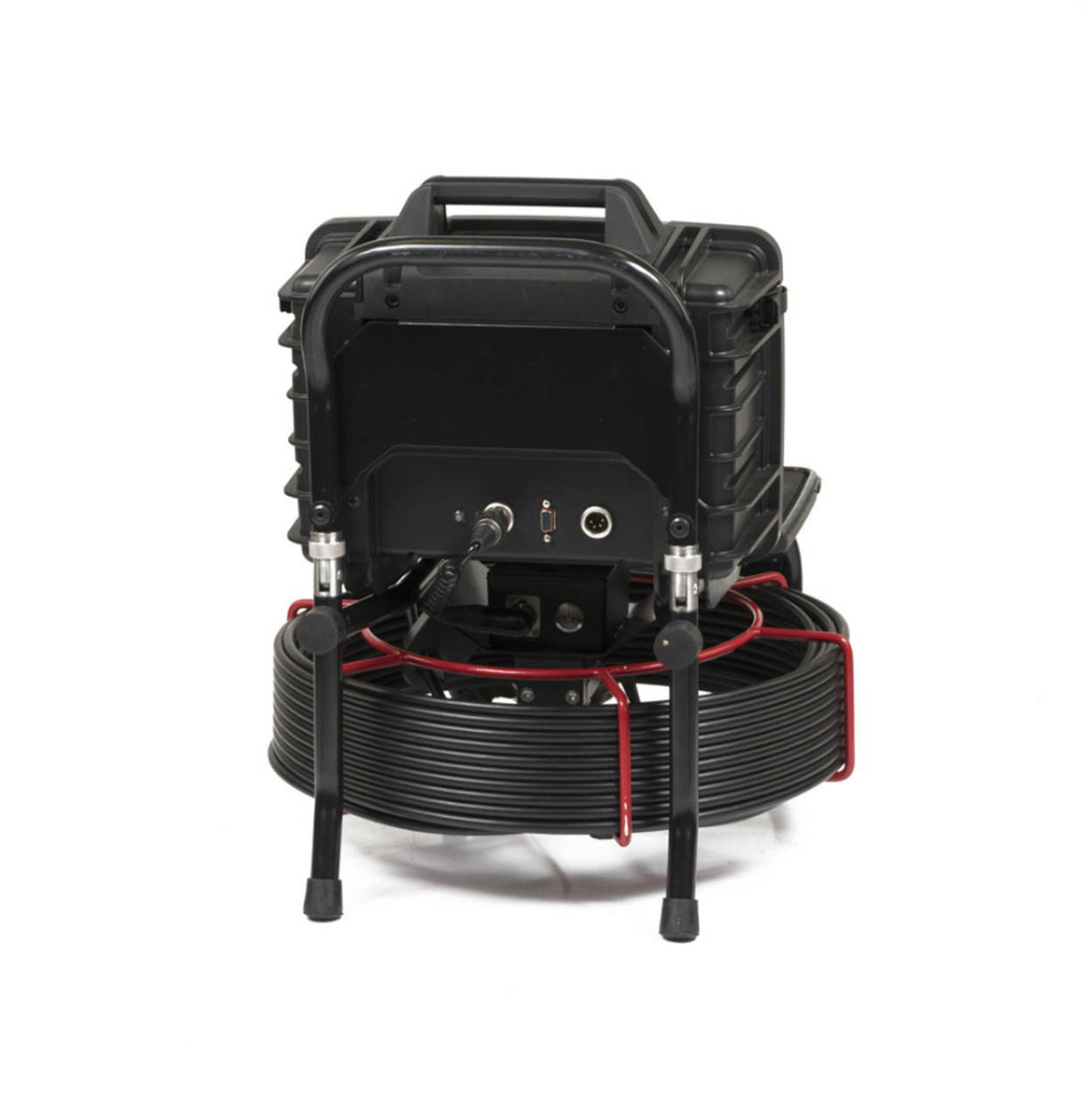

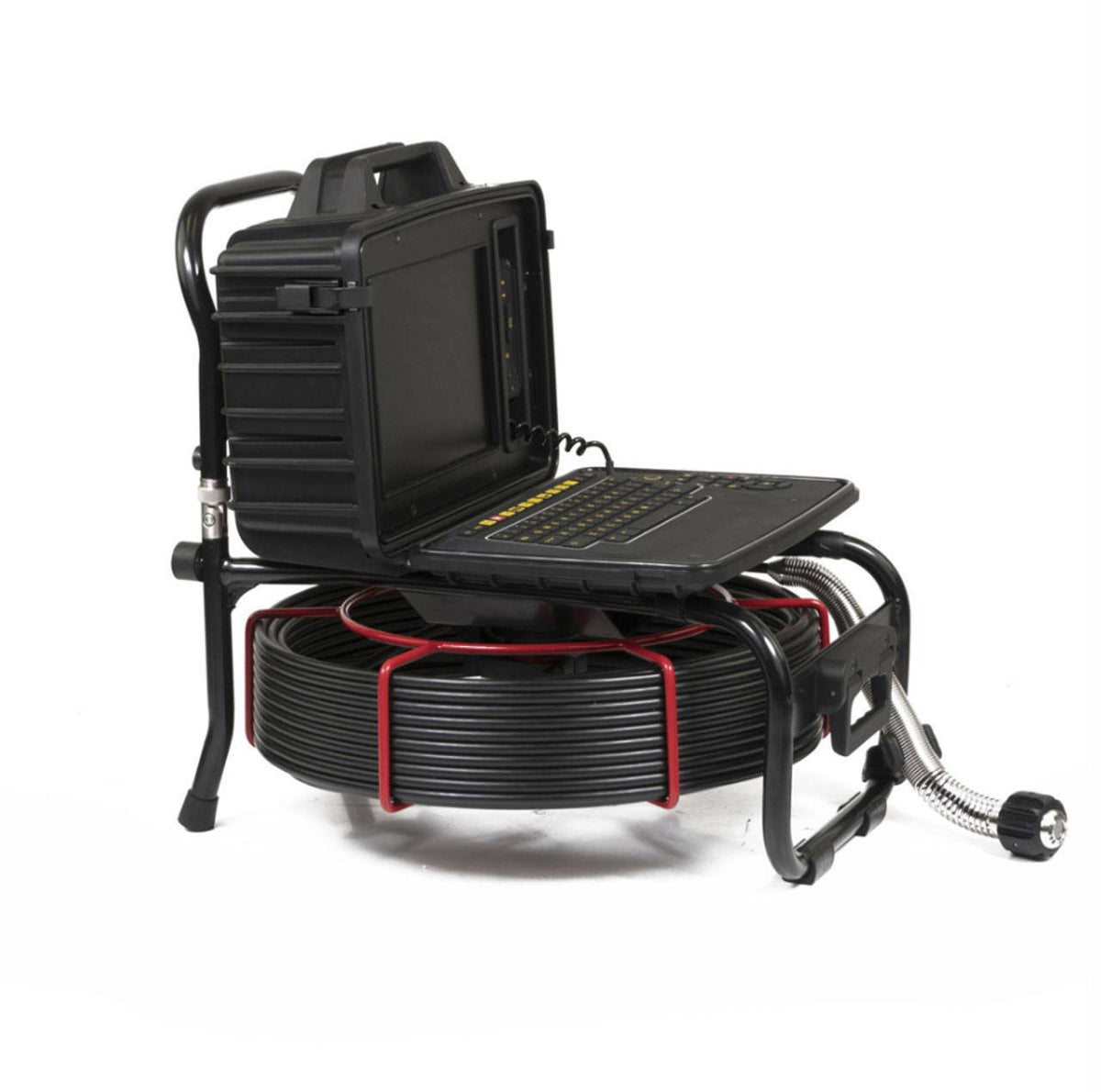

The Spartan Tool Explorer Trapjumper Inspection Camera System is a push-rod video inspection camera for Up to 9" lines.
The Trap Jumper camera for the Explorer system is flexible enough to handle the tight bends and curves of a commercial trap pipe while still strong enough to be pushed the distance—up to 130 feet.
Common Questions
- What pipe sizes does this camera work in?
- This system is built for Up to 9" lines, per Spartan Tool's own specifications.
- How long is the push rod?
- 8.6 mm, per the vendor's specification sheet.
- How big is the camera head?
- The camera head is 30mm in diameter.
- Can a locator find this camera head underground?
- Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.
- How long does the battery last?
- Up to 9 hours per charge, per Spartan Tool's own rating.
Specifications
- Type: Inspection Camera
- Warranty: 2 years (Spartan Tool equipment warranty)
- MPN: 6405TRAPK
- Pipe Size Range: Up to 9"
- Push Rod Diameter: 8.6 mm
- Camera Head (mm): 30
- Video Resolution: 720 x 576
- Push Rod Length (ft): 130
- Sonde Frequency (Hz): 512
- Battery Runtime (hrs): 9
- Waterproof Rating: IP54
- Overall Width (in): 17.5
- Overall Height (in): 20.5
Technical Data: Trap Jumper
- Weight: 26 lbs
- Height: 20.5"
- Width: 17.5"
- Depth (folded): 12.2"
- Depth (unfolded): 18.8"
- Rod length: 130 ft (standard)
- Rod diameter: 8.6 mm
- Camera length: 44 mm
- Camera diameter: 30 mm
- Battery: Li-ion (9 hrs running time)
- Ingress protection, reel: IP54
- Ingress protection, camera: IP68
- Light source: 12 LED
- LED output: 41 lumen
- Resolution: 720 x 576
- Minimum bend radius: 3"
- Sonde frequency: 512 kHz
- Control box IP rating: IP64 open & closed
- IP rating (manual): Box- IP54 open, IP67 closed
- Pipe size: UP TO 9" PIPES
- Operating temp: 14°F to 122°F / -10°C to +50°C
- Memory: 32 GB SSD
- Voltage: 12v DC / 230v AC / 110v DC
From Spartan Tool's own documentation (TrapJumper brochure, TrapJumper manual).
Product Information
Details
| Series | Explorer Trap Jumper | Device Type | Inspection Camera |
| Battery runtime hrs | 9 | Overall height in | 20.5 in |
| Overall width in | 17.5 in | Pipe size range | Up to 9" |
| Sonde frequency hz | 512 | Waterproof rating | IP54 |
| Camera head diameter mm | 30 | Pushrod diameter | 8.6 mm |
| Pushrod length ft | 130 | Resolution | 720 x 576 |
