Specifications
Description

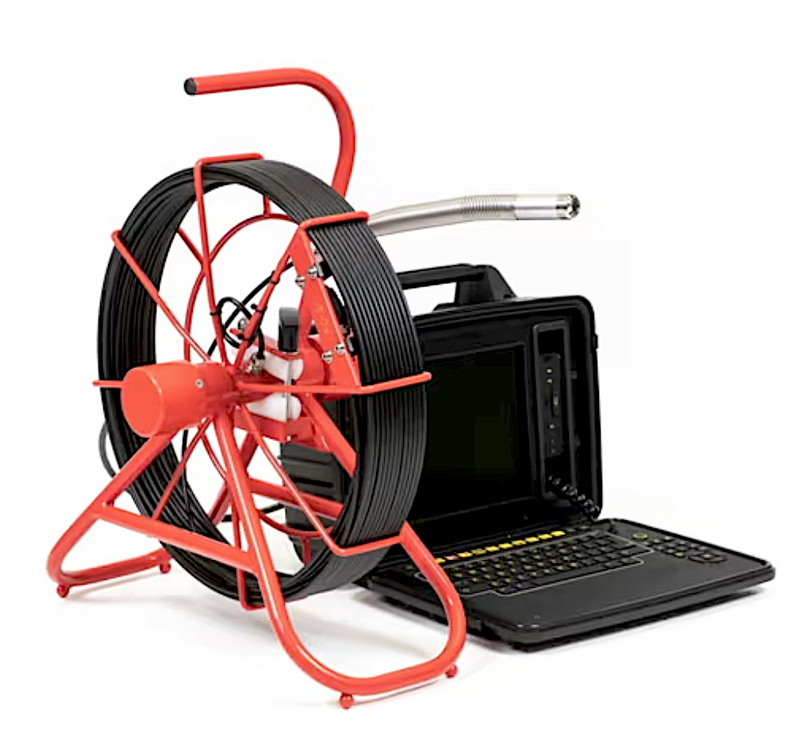

The Spartan Tool Explorer M130 Inspection Camera System is a push-rod video inspection camera.
The Trap Jumper camera for the Explorer system is flexible enough to handle the tight bends and curves of a commercial trap pipe while still strong enough to be pushed the distance—up to 130 feet.
Common Questions
- How long is the push rod?
- 5 mm, per the vendor's specification sheet.
- How big is the camera head?
- The camera head is 23mm in diameter.
- Can a locator find this camera head underground?
- Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.
- How long does the battery last?
- Up to 9 hours per charge, per Spartan Tool's own rating.
Specifications
- Type: Inspection Camera
- Warranty: 1 year (Spartan Tool limited warranty)
- MPN: 6405M130
- Push Rod Diameter: 5 mm
- Camera Head (mm): 23
- Video Resolution: 800 x 600
- Push Rod Length (ft): 130
- Sonde Frequency (Hz): 512
- Battery Runtime (hrs): 9
- Waterproof Rating: IP64
- Electrical Requirement: 12 V DC / 230 V AC / 115 V AC
Technical Data: Explorer
- Resolution: 800 x 600 RBG (SVGA)
- Reel length: 130', 200', 330', or 400'
- Push rod diameter (mm): 5
- Reel weight (lbs): 15
- Included camera head (mm): 23
- Control box weight: 12 lbs
- Box dimensions: 14.2" x 11.4" x 6.3"
- LCD size: 10.4"
- Voltage: 12v DC / 230v AC / 115v AC
- Battery: Li-ion (9 hrs running time)
- Operating air temp: 14°F - 122°F
- Charging temp: 32°F - 104°F
- Storage: 32GB HDD standard, (2) USB 2.1
- IP rating: IP64 Open & Closed
- Included software: Mina Reporting Software
- Compatible software: WinCan (separate
- Sonde: 512 Hz sonde locator (44mm camera head)
- Self-leveling (23mm head): No
- Warranty: one year from the date of purchase
From Spartan Tool's own documentation (Explorer brochure, Explorer manual).
Product Information
Details
| Series | Explorer | Device Type | Inspection Camera |
| Availability | In stock | Resolution | 800 × 600 (SVGA) |
| Cable Length | 130' | Voltage | 12V DC |
| Reel Weight | 15 lbs | Box Weight | 12 lbs |
| Camera Head | 23 mm | LCD Size | 10.4" |
| Battery runtime hrs | 9 | Electrical requirement | 12 V DC / 230 V AC / 115 V AC |
| Sonde frequency hz | 512 | Waterproof rating | IP64 |
| Camera head diameter mm | 23 | Pushrod diameter | 5 mm |
| Pushrod length ft | 130 | Resolution | 800 x 600 |
