Similar products
Specifications
Description

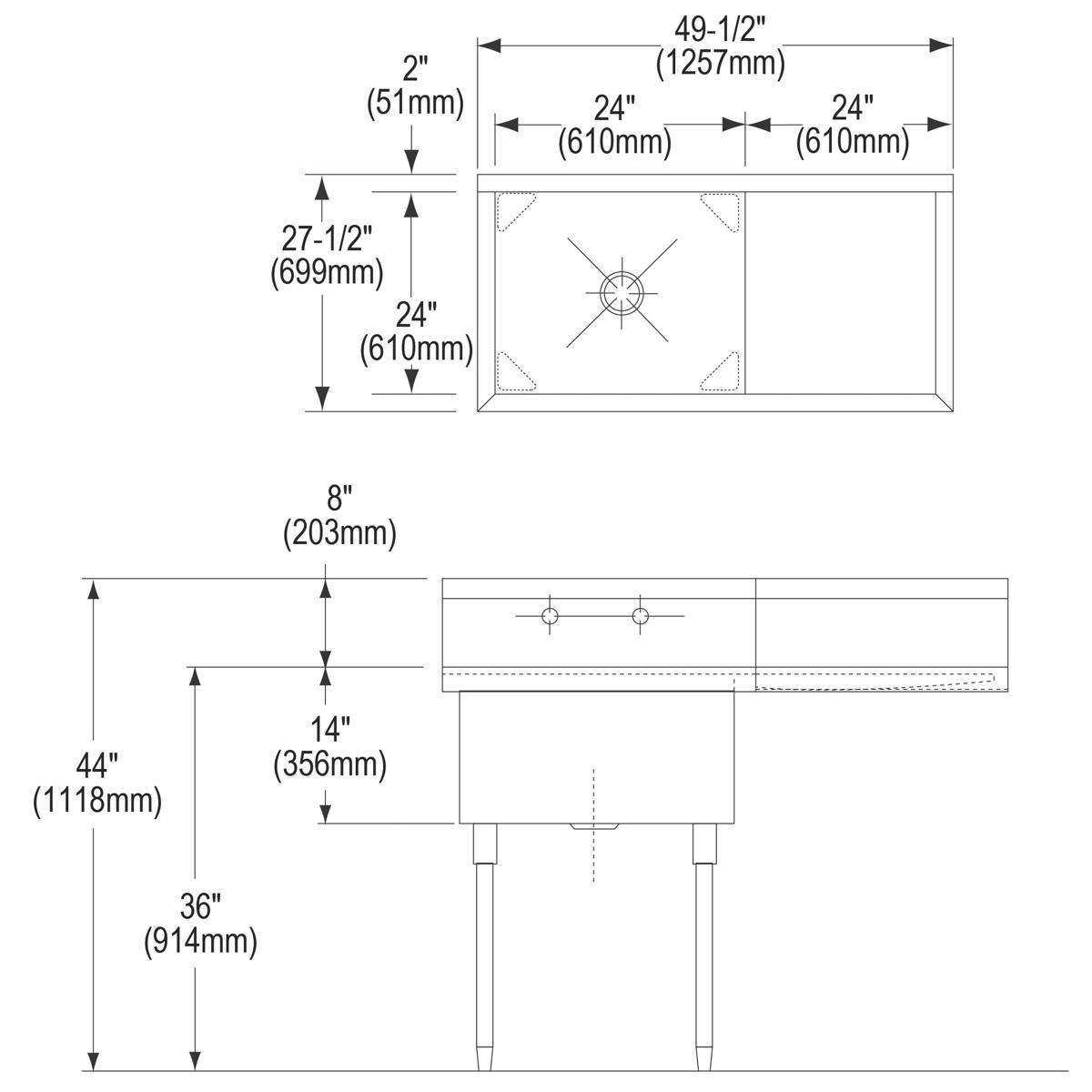

The Elkay WNSF8124R2 is a Weldbilt Stainless Steel 49-1/2" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- Superior quality 14-gauge, Type 304 stainless steel.
- Designed to withstand the heavy-duty requirements of hotel, restaurant, cafeteria and other commercial kitchens.
- Sink compartments have welded 1⁄4" radius coved corner construction; ground smooth for easy cleaning.
- Channel rim design with 2" apron, slanting sanitary turn under and inward sloping rim to minimize spillage.
- 8" high, full-length, sloped backsplash resists grime and is 2" thick to allow for plumbing.
- Sink polished to a uniform lustrous satin finish.
- Drainboard and sink compartments pitched to drain.
- 3-1/2" drain opening centered in each compartment.
- Stainless steel tubular legs, 1-5⁄8" O.D. with up to 1" adjustable, bullet-shaped stainless steel feet.
Common Questions
- What does 14-gauge mean?
- 14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
Specifications
- Type: Weldbilt Stainless Steel 49-1/2" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: WNSF8124R2
- Certifications: ASME A112.19.3/CSA B45.4, NSF-2
- Number of Bowls: 1
- Bowl Dimensions: 24" x 24" x 14"
- Drain Location: Center
- Gauge: 14
- Mount Type: Floor
- Coating / Finish: Buffed Satin
- Faucet Holes: 2
- Overall Length (in): 49.5
- Overall Width (in): 27.5
- Overall Height (in): 44.0
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| WNSF8124R2 | 094902051062 | United States | Download |
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | WNSF8124R2 | Device Type | Weldbilt Stainless Steel 49-1/2" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Buffed Satin | Hole count | 2 |
| Mount type | Floor | Overall height in | 44.0 in |
| Overall length in | 49.5 in | Overall width in | 27.5 in |
| Bowl count | 1 | Bowl dimensions | 24" x 24" x 14" |
| Drain location | Center | Gauge | 14 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-2 |
Compare with similar products
| Series | WNSF8124R2
| WNSF8124LR2
| WNSF8136LR2
| WNSF8130L2
| WNSF81302
| WNSF8136L2
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Device Type | Weldbilt Stainless Steel 49-1/2" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard
| Weldbilt Stainless Steel 72" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard
| Weldbilt Stainless Steel 84" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard
| Weldbilt Stainless Steel 55-1/2" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard
| Weldbilt Stainless Steel 33" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink
| Weldbilt Stainless Steel 61-1/2" x 27-1/2" x 14" Floor Mount Single Compartment Scullery Sink with Drainboard
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
| ASME A112.19.3/CSA B45.4, NSF-2
|
