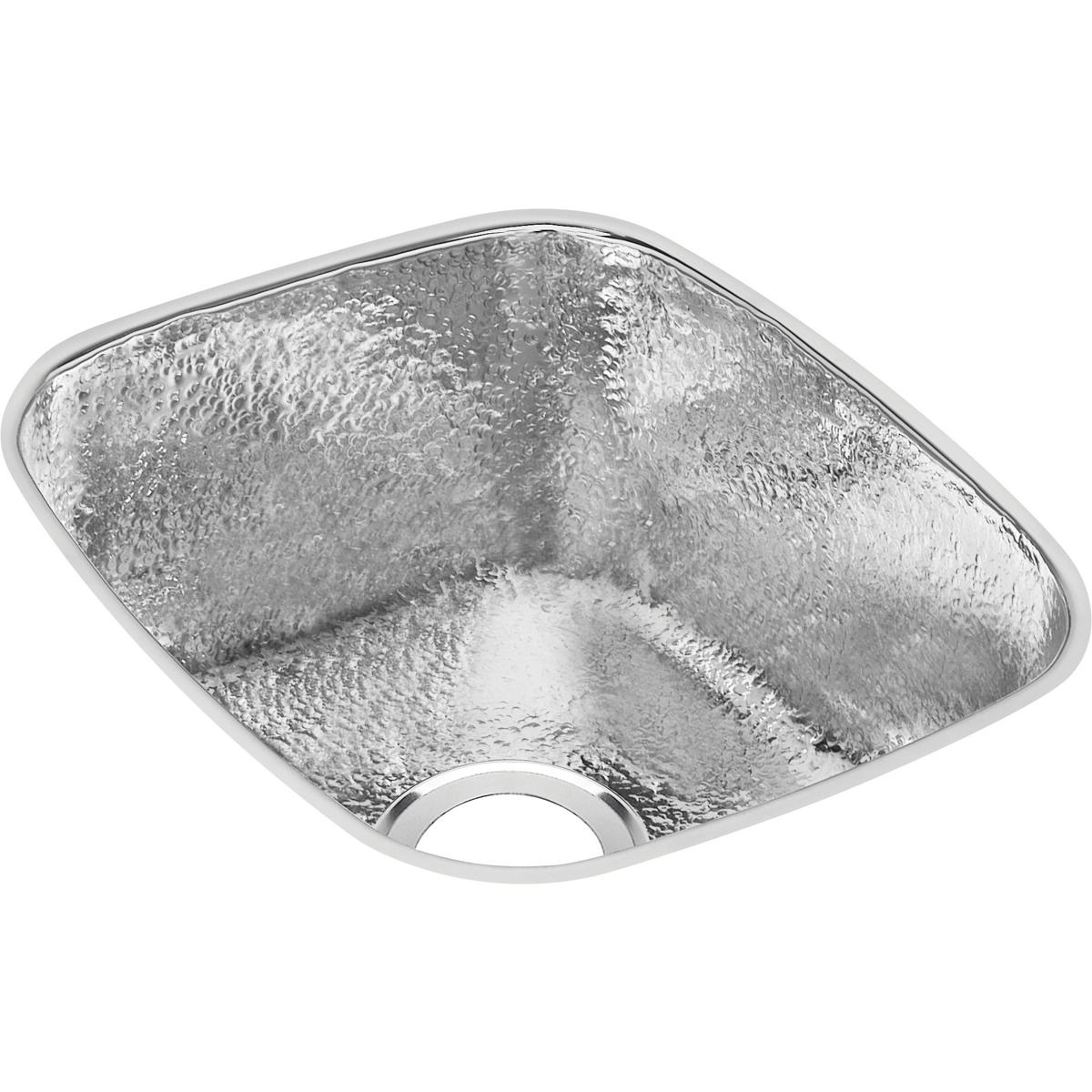

The Elkay SCUH1416SH is a Stainless Steel 16" x 18" x 7-1/2", Single Bowl Undermount Bar Sink. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 21".
Common Questions
- What size cabinet does this need?
- A minimum 21" wide base cabinet.
- Undermount or drop-in?
- This is an undermount sink -- it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom for added quiet.
Specifications
- Type: Stainless Steel 16" x 18" x 7-1/2", Single Bowl Undermount Bar Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: SCUH1416SH
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Minimum Cabinet Size (in): 21

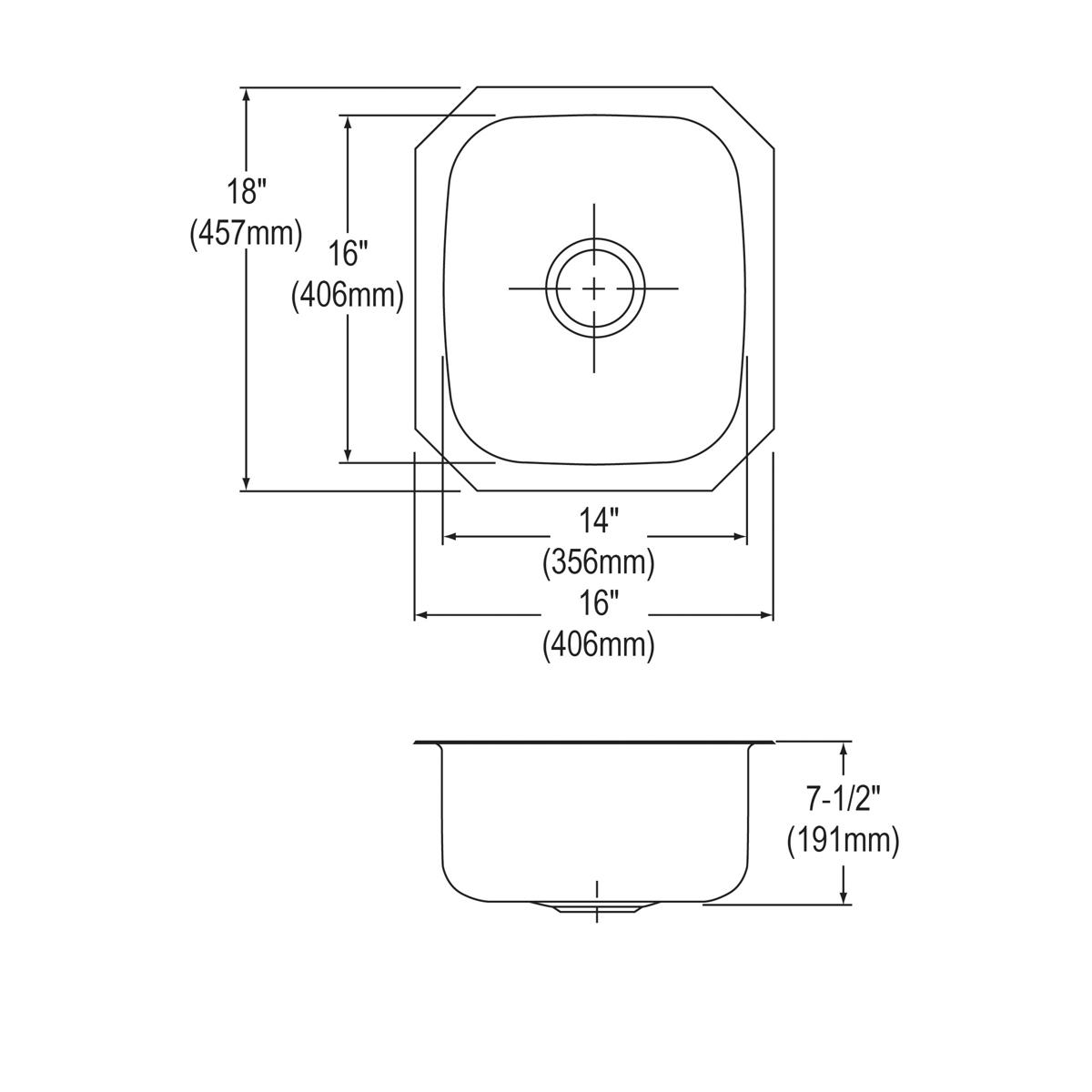

- Bowl Dimensions: 14" x 16" x 7-1/2"
- Drain Location: Center
- Gauge: 18
- Sound Deadening: Full spray sides and bottom
- Template Included: No
- Mounting Hardware: Included
- Mount Type: Undermount
- Coating / Finish: Hammered Mirror
- Overall Length (in): 16.0
- Overall Width (in): 18.0
- Overall Height (in): 7.5
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001521.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | SCUH1416SH | Device Type | Stainless Steel 16" x 18" x 7-1/2", Single Bowl Undermount Bar Sink |
| Body Material | Stainless Steel | Coating | Hammered Mirror |
| Mount type | Undermount | Overall height in | 7.5 in |
| Overall length in | 16.0 in | Overall width in | 18.0 in |
| Bowl count | 1 | Bowl dimensions | 14" x 16" x 7-1/2" |
| Cutout template url | View | Drain location | Center |
| Gauge | 18 | Minimum cabinet size in | 21 |
| Mounting hardware | Included | Sound deadening | Full spray sides and bottom |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
