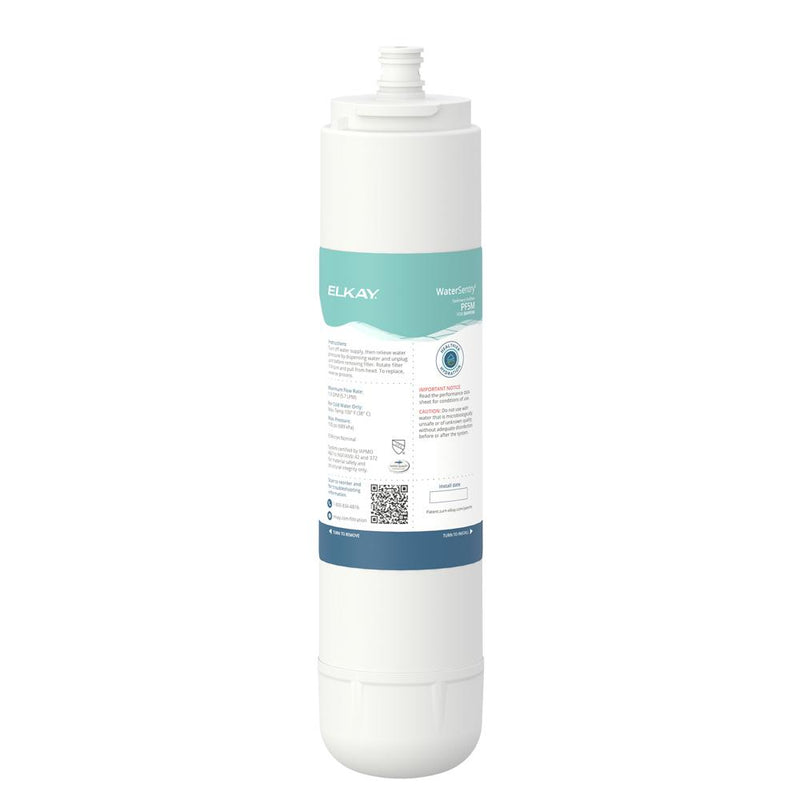

Elkay PF5M Replacement Filter Cartridge

The Elkay PF5M is a WaterSentry 5-micron Sediment Prefilter. It is rated to 40°F to 100°F. This model is certified lead-free for potable-water installations.

WaterSentry® 5-micron Sediment Prefilter. Overall dimensions are 12-1/8" x 4" x 4". Dimensions: 12-1/8" x 4" x 4" Shipping Weight: 1 lbs. Flow Rate: 1.5 GPM (5.6 L/m) Capacity: Temperature: 40-100°F (4-38°C) Initial Pressure Drop: 2-5 PSI (14-34 kPa) Maximum Pressure: 105 PSI (724 kPa) Minimum Pressure: 20 PSI (138 kPa) Water Inlet: 3/8" (9.5mm) O.D. tube Water Outlet: 1/4" (6.4mm) O.D. tube • Prefilter reduces dirt, sand and other sediment from water, improving taste and appearance and extending the life of downstream filters • Prefilter is tested and certified to NSF/ANSI 42 and 372 for material safety and structural integrity • 75-gram average weight dirt holding capacity for sediment reduction • For best results, replace prefilter every six months or as needed, depending on water quality • Universal prefilter can be paired with any existing Elkay or non-Elkay water filter to create a two-stage filtration system, preventing clogging of the main filter and reducing particulates in the water • Encapsulated filter cartridge allows for clean and sanitary filter changes • Multi-layer structure helps prevent release of sediment; outer layer reduces large particulates, prolonging cartridge service life, and inner layer reduces smaller debris, ensuring filtration efficiency • Prefilter is installed outside the water delivery unit for quick and easy access A Century of Tradition and Quality. For more than 100 years, Elkay has been making innovative products and providing exceptional customer care. We take pride in offering plumbing products that make life easier, inspire change and leave the world a better place.

Features

• Dimensions
• L: 12-1/8IN
• Shipping Dimensions
• L: 12-1/8IN
• Shipping Weight
• Code Compliance
• Resources
• Spec Sheets (1)
• Specification Sheets
• Installation & Warranty (2)
• Installation Guides & Warranty
• PROP 65 WARNING
• How-To Videos
• SPECIFICATIONS
• RESOURCES

Common Questions

Is this certified for lead reduction?

Yes, it carries NSF/ANSI 372 lead-free certification.

What flow rate does it support?

Rated service flow is 1.5 GPM.

Will this fit my existing filter housing?

Match on system role (Cartridge) and rated capacity first.

Specifications

• Type: WaterSentry® 5-micron Sediment Prefilter
• Inlet Size: 3/8"
• Outlet Size: 1/4"
• Connection: Compression
• MPN: PF5M
• Temperature: 40°F to 100°F
• Certifications: NSF-372, NSF-42
• Lead-Free: Yes
• Filter Role: Cartridge
• Micron Rating: 5 micron
• Fill / Flow Rate (GPM): 1.5
• Min Operating Pressure (PSI): 20
• Max Operating Pressure (PSI): 105
• Overall Length (in): 12.125
• Overall Width (in): 4.0
• Overall Height (in): 4.0
