Specifications
Description

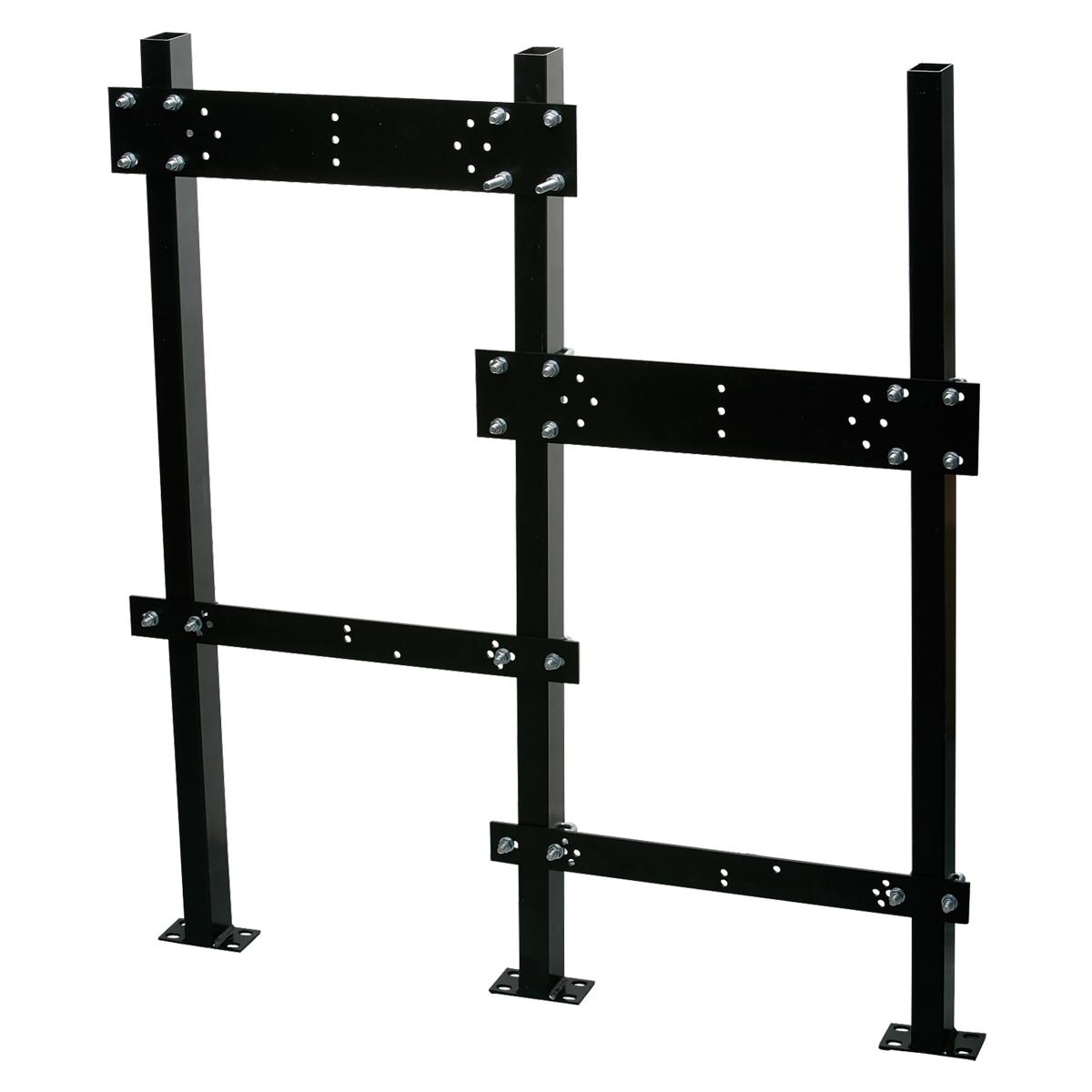

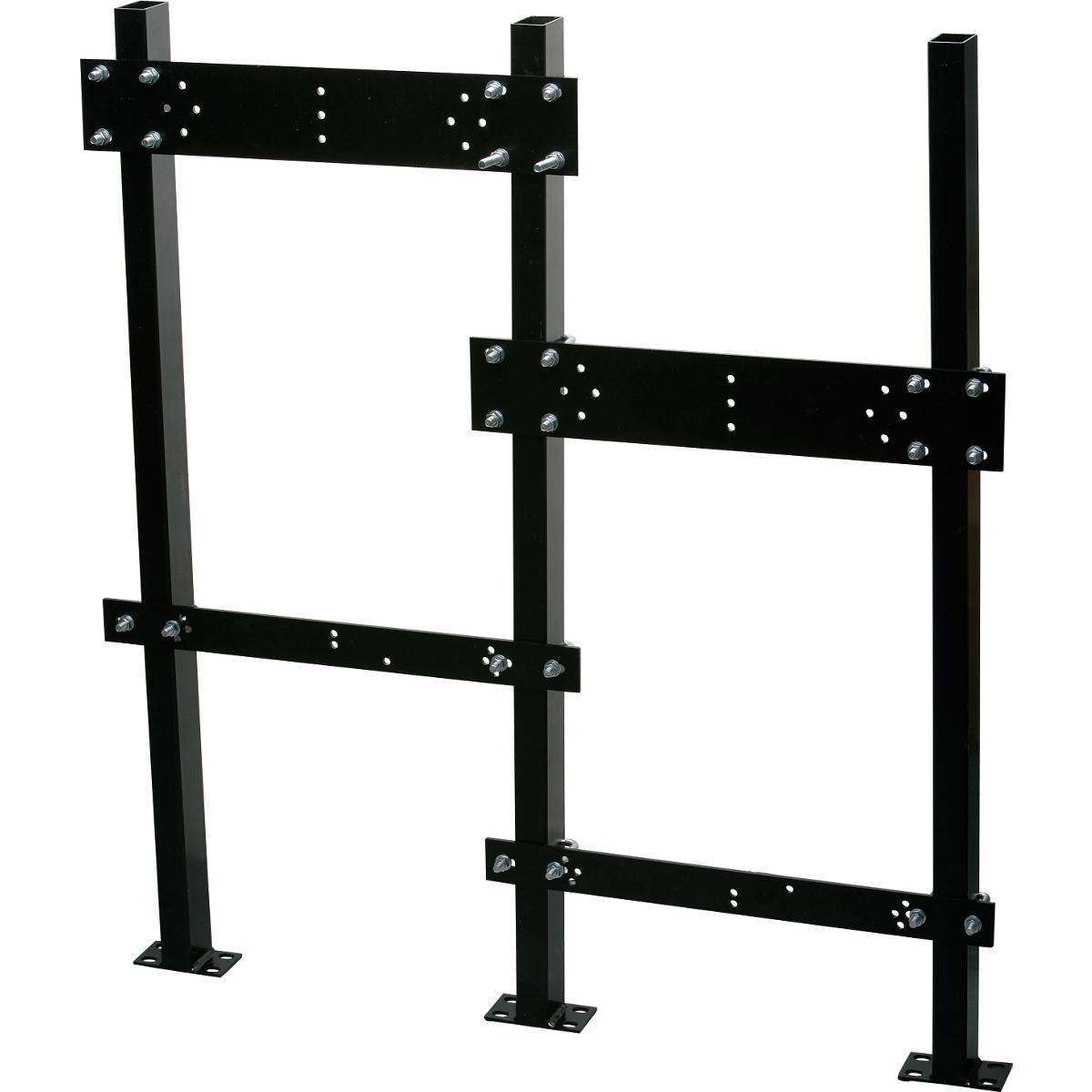

The Elkay MLP200 is an In-wall Carrier for Bi-level On-wall Bottle Fillers Coolers & Fountains. It features a galvanized steel body.
We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Features
- Universal design provides extra support when mounting on-wall bi-level models.
- System can be installed in as little as a 2" x 4" wall.
- Constructed of heavy-gauge steel supporting up to 500 lbs.
- Secures directly to a variety of load-bearing surfaces.
- Adjustable height setting allows for adult or child ADA installation.
- Built in the USA.
Common Questions
- What does this fit?
- It is made for Elkay Bi-level On-wall Bottle Fillers Coolers & Fountains.
- What is it made of?
- Galvanized Steel, Black finish.
Specifications
- Type: In-wall Carrier for Bi-level On-wall Bottle Fillers Coolers & Fountains
- Body Material: Galvanized Steel
- Country of Origin: United States
- MPN: MLP200
- Accessory Type: Mounting Options

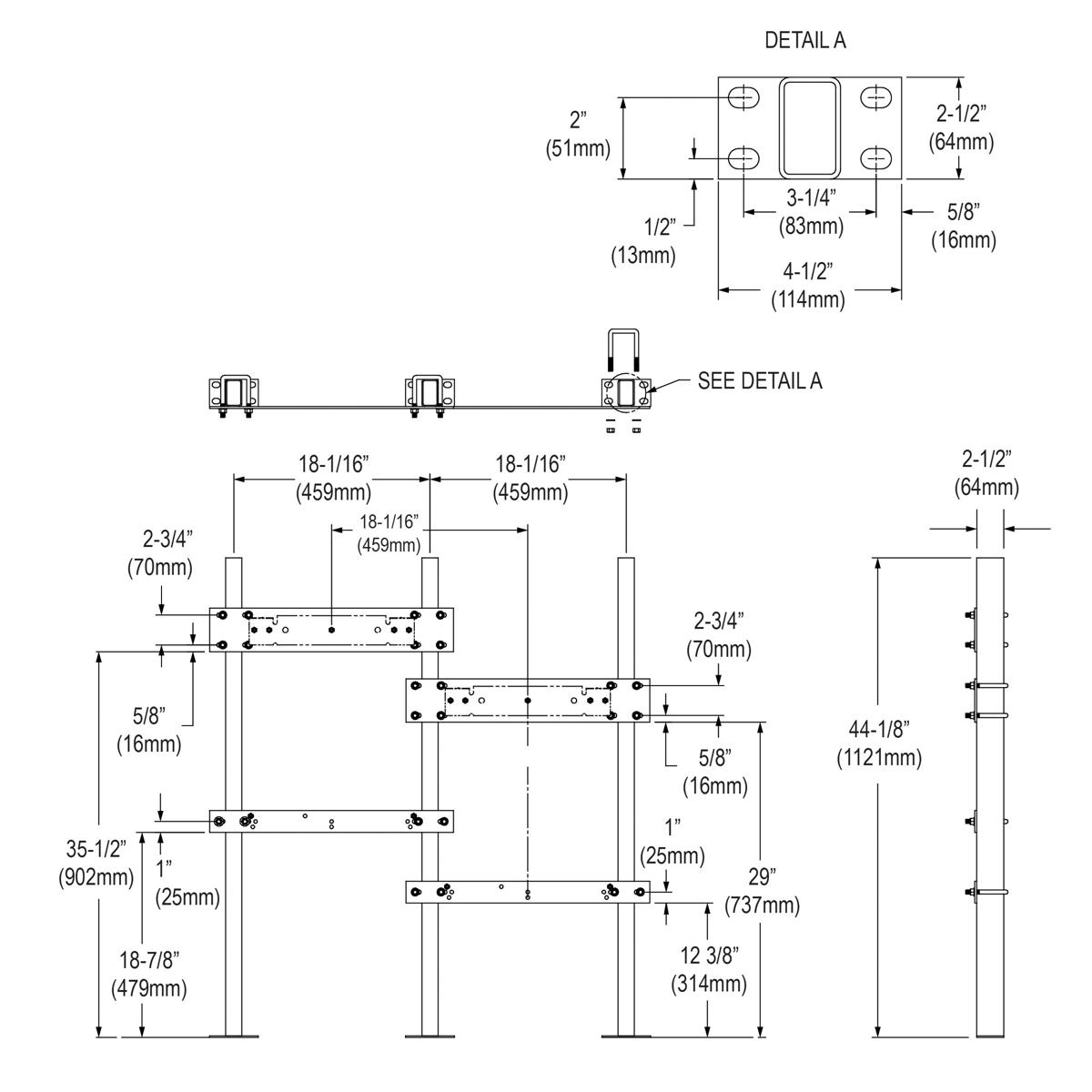

- Overall Length (in): 38.5
- Overall Width (in): 2.6875
- Overall Height (in): 44.125
Product Information
Details
| Series | MLP200 | Device Type | In-wall Carrier for Bi-level On-wall Bottle Fillers Coolers & Fountains |
| Body Material | Galvanized Steel | Accessory Type | Mounting Options |
| Overall height in | 44.125 in | Overall length in | 38.5 in |
| Overall width in | 2.6875 in | — | — |
Compare with similar products
| Accessory Type | Mounting Options
| Mounting Options
| Mounting Options
| Mounting Options
| Mounting Options
| Mounting Options
|
| Series | MLP200
| EFBLIVSC
| MFWSF110
| MFWSF100
| MFWS210
| MFWS200
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | — | |||||
| Install Sheet | ||||||
| Device Type | In-wall Carrier for Bi-level On-wall Bottle Fillers Coolers & Fountains
| ezH2O Liv Filter Box Kit
| Mounting Frame for Single-station In-wall Refrigerated SwirlFlo Bottle Filling Stations
| Mounting Frame for Single-station In-wall Non-refrigerated SwirlFlo Bottle Filling Stations
| Mounting Frame for Bi-level In-wall Refrigerated SwirlFlo Bottle Filling Stations
| Mounting Frame for Bi-level In-wall Non-refrigerated Bottle Filling Stations With Integral Fountain
|
| Body Material | Galvanized Steel
| Stainless Steel
| Galvanized Steel
| Galvanized Steel
| Galvanized Steel
| Galvanized Steel
|
