Specifications
Description

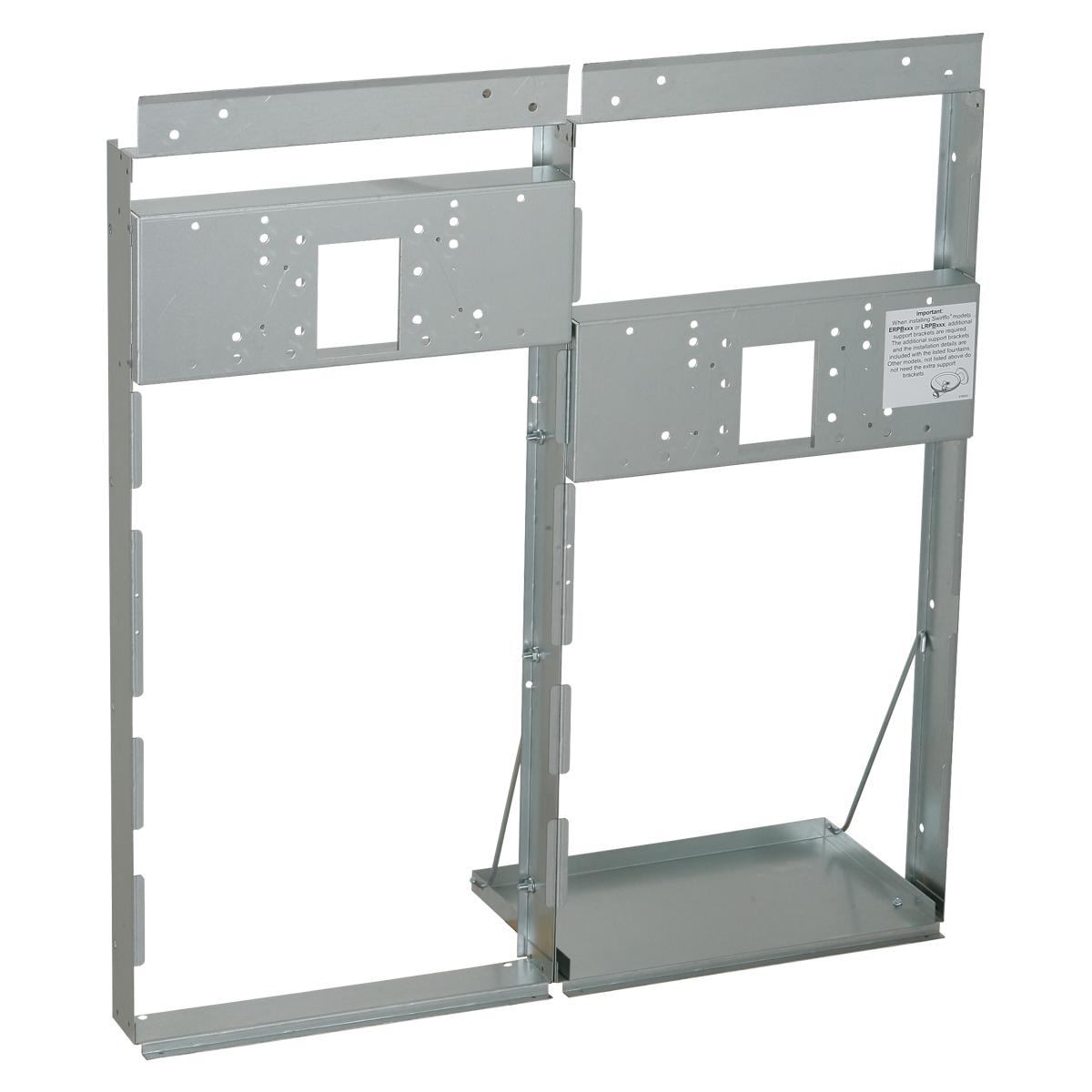

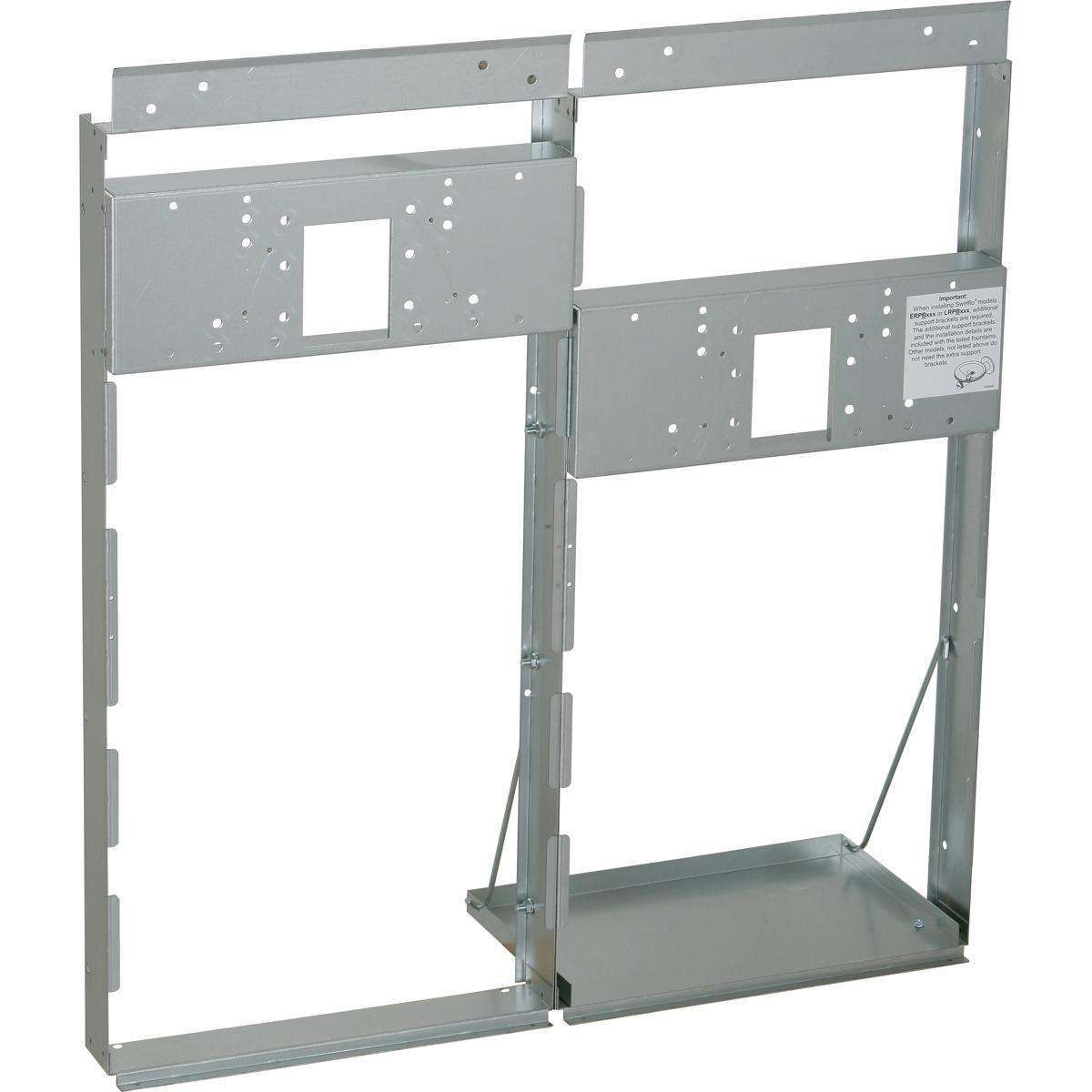

The Elkay MF200 is a Mounting Frame for Bi-level In-wall Refrigerated Coolers. It features a galvanized steel body.
We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Features
- Two-station mounting frame enables installation of in-wall drinking water models.
- Compatible with various Elkay refrigerated models; see specifications tab for details.
- Mounting frame included with specific SwirlFlo and Soft Sides models.
- Secures directly to a variety of load-bearing surfaces.
- Refer to end product for ADA compliance information.
- Built in the USA.
Common Questions
- What does this fit?
- It is made for Elkay Bi-level In-wall Refrigerated Coolers.
- What is it made of?
- Galvanized Steel.
Specifications
- Type: Mounting Frame for Bi-level In-wall Refrigerated Coolers
- Body Material: Galvanized Steel
- Country of Origin: United States
- MPN: MF200
- Accessory Type: Mounting Options

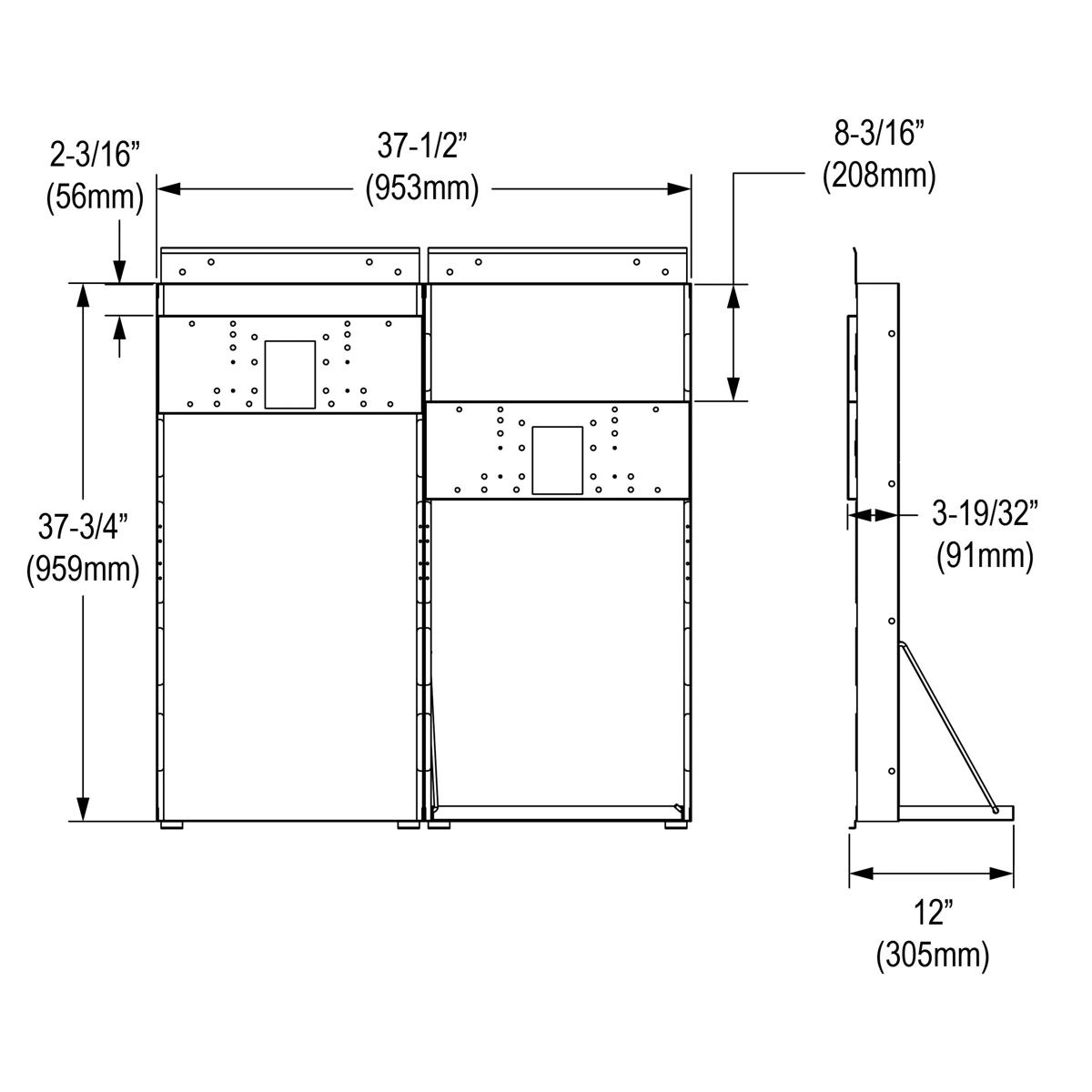

- Overall Length (in): 37.5
- Overall Width (in): 12.0
- Overall Height (in): 37.75
Product Information
Details
| Series | MF200 | Device Type | Mounting Frame for Bi-level In-wall Refrigerated Coolers |
| Body Material | Galvanized Steel | Accessory Type | Mounting Options |
| Baa | USA | Overall height in | 37.75 in |
| Overall length in | 37.5 in | Overall width in | 12.0 in |
Compare with similar products
| Accessory Type | Mounting Options
| Mounting Options
| Mounting Options
| Mounting Options
| Mounting Options
| Mounting Options
|
| Series | MF200
| EFBLIVSC
| MFWSF110
| MFWSF100
| MFWS210
| MFWS200
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | — | |||||
| Install Sheet | ||||||
| Device Type | Mounting Frame for Bi-level In-wall Refrigerated Coolers
| ezH2O Liv Filter Box Kit
| Mounting Frame for Single-station In-wall Refrigerated SwirlFlo Bottle Filling Stations
| Mounting Frame for Single-station In-wall Non-refrigerated SwirlFlo Bottle Filling Stations
| Mounting Frame for Bi-level In-wall Refrigerated SwirlFlo Bottle Filling Stations
| Mounting Frame for Bi-level In-wall Non-refrigerated Bottle Filling Stations With Integral Fountain
|
| Body Material | Galvanized Steel
| Stainless Steel
| Galvanized Steel
| Galvanized Steel
| Galvanized Steel
| Galvanized Steel
|
