Specifications
Description

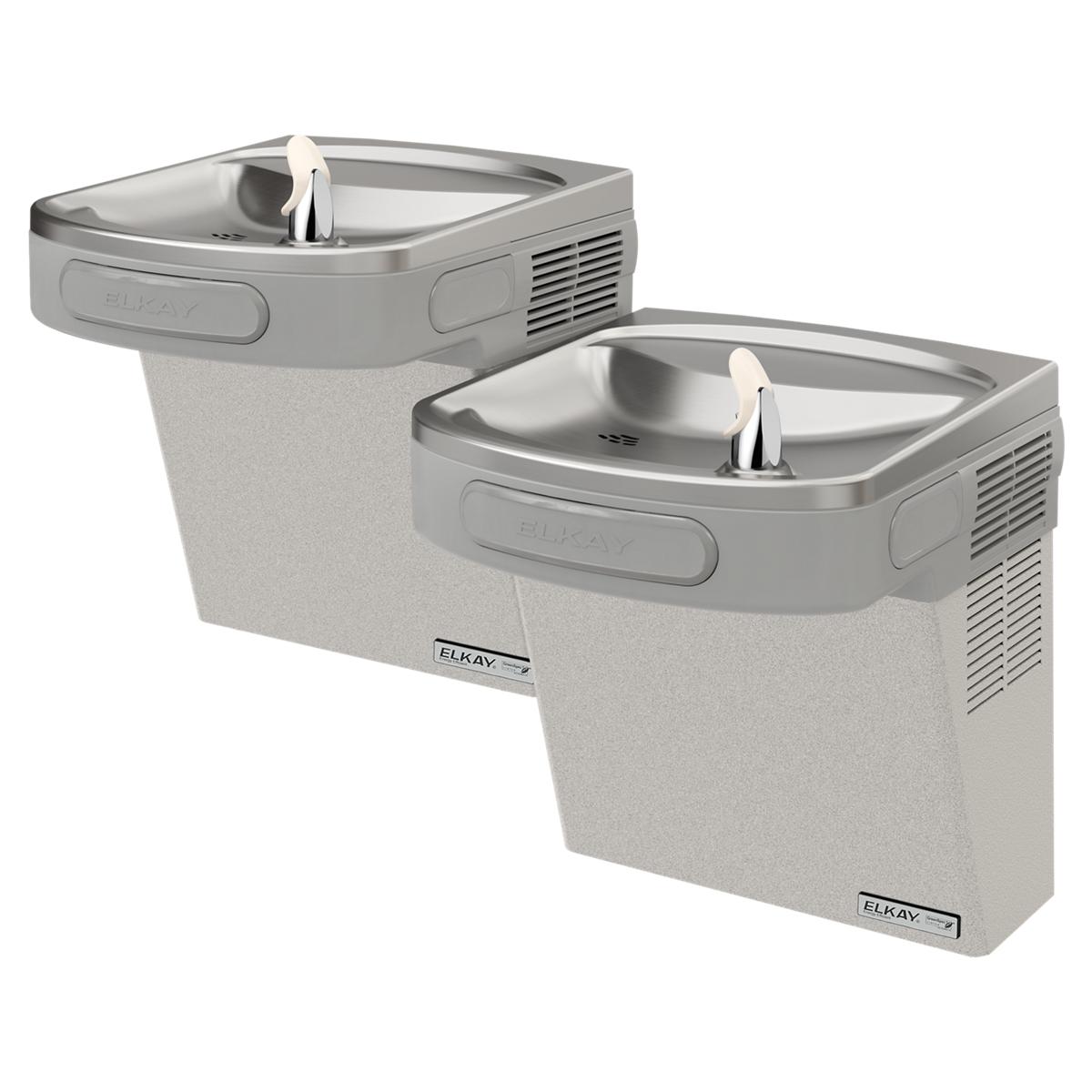

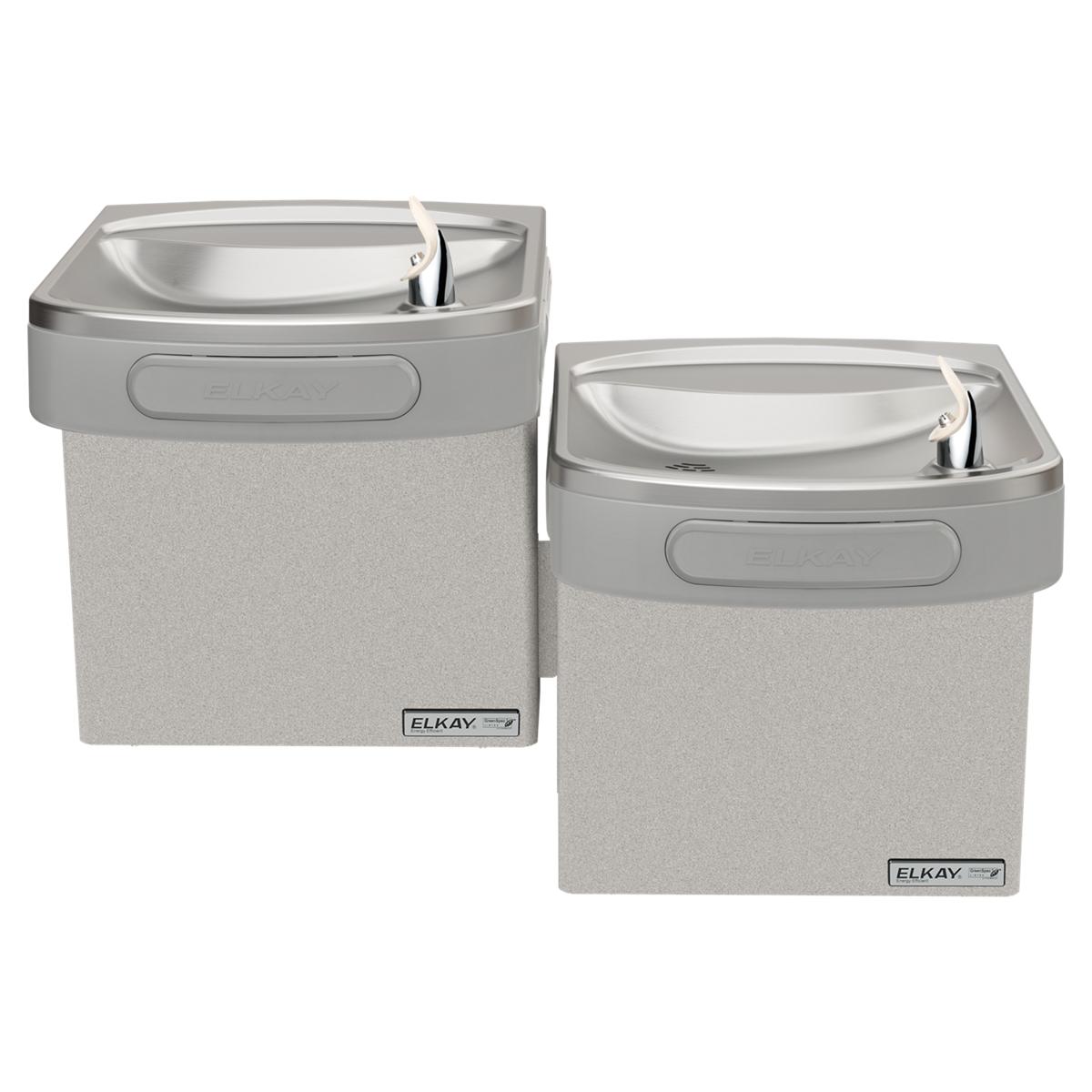

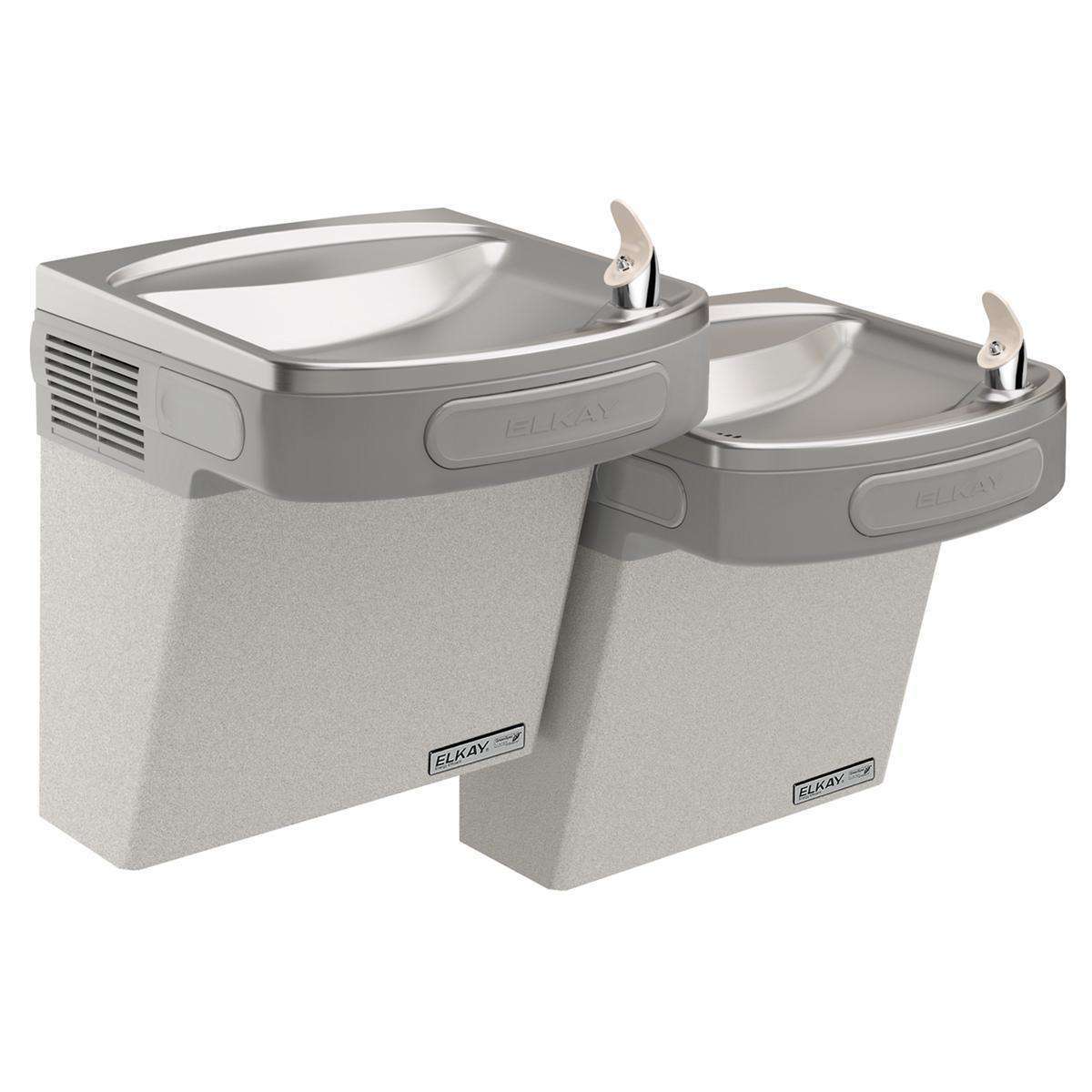

The Elkay LZSTLG8LC is a filtered bi-level water cooler, wall-mount, 8.0 GPH. This model is certified lead-free for potable-water installations.
The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
Features
- High-performance compressor and insulation greatly reduces energy consumption.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Electronic bubbler push bars for easy activation.
- Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
- Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Equipped with StreamSaver low-flow bubbler.
- This product demonstrates a commitment to sustainability.
- Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Vinyl clad finish is durable and attractive.
Common Questions
- Is this unit filtered?
- Yes, it ships with an integrated filter cartridge.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 370W.
- How does this mount?

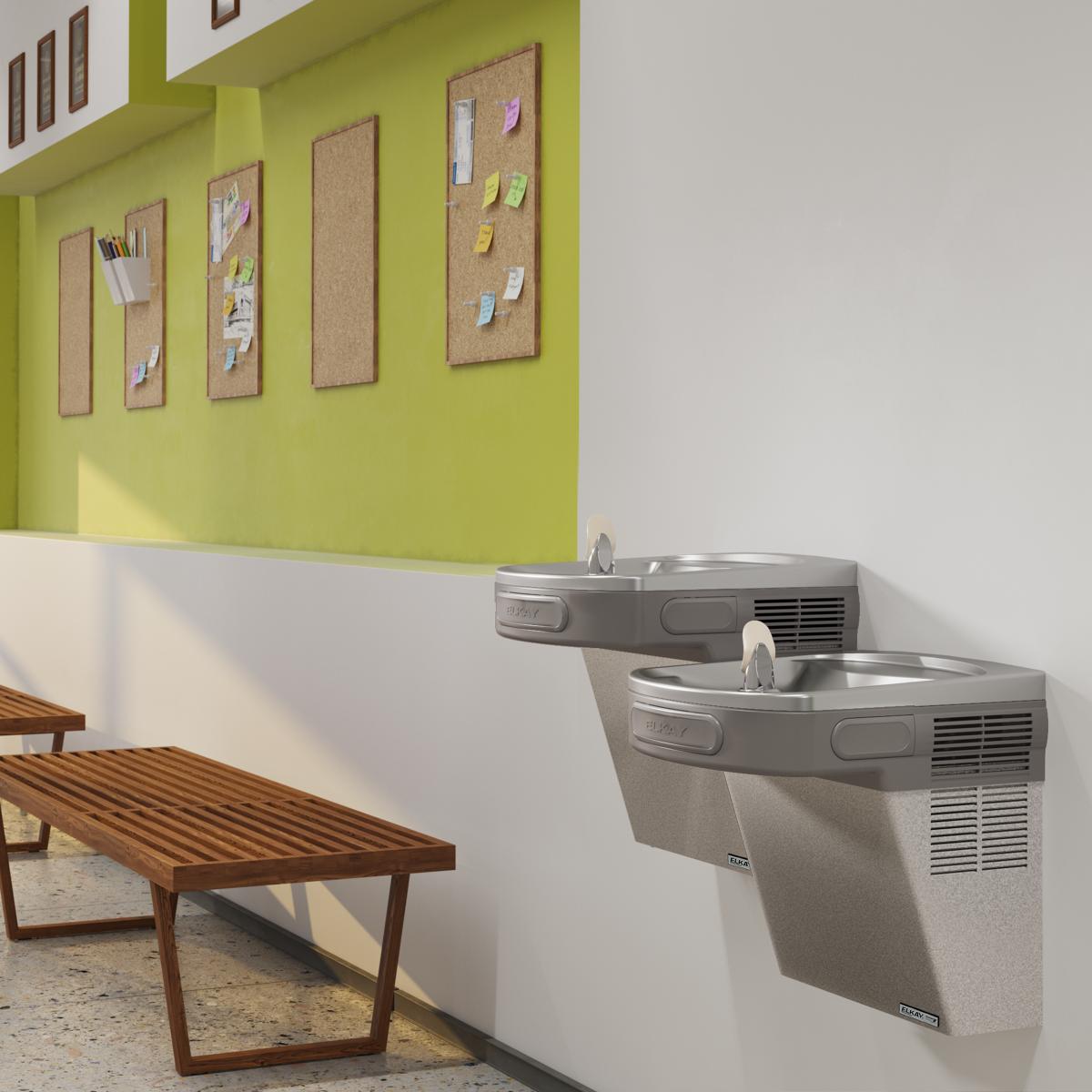

- Wall-Mount installation.
Specifications
- Type: Wall Mount Bi-level Versatile ADA Cooler Filtered Refrigerated Light Gray Granite
- Operation: Pushbar
- Country of Origin: United States
- MPN: LZSTLG8LC
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Chilling Capacity (GPH): 8.0
- Refrigerated: Yes
- Filtered: Yes
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Flexi-Guard StreamSaver
- Electrical Requirement: 115V/60Hz
- Rated Watts: 370
- Full Load Amps: 5.0
- Installation Location: Indoor
- Overall Length (in): 36.75
- Overall Width (in): 19.0
- Overall Height (in): 25.3125
Product Information
Details
| Series | LZSTLG8LC | Device Type | Wall Mount Bi-level Versatile ADA Cooler Filtered Refrigerated Light Gray Granite |
| Lead Free | Yes | Operation | Pushbar |
| Baa | USA | Electrical requirement | 115V/60Hz |
| Full load amps | 5.0 | Installation location | Indoor |
| Overall height in | 25.3125 in | Overall length in | 36.75 in |
| Overall width in | 19.0 in | Rated watts | 370 |
| Bilevel | Yes | Bubbler style | Flexi-Guard StreamSaver |
| Chilling capacity gph | 8.0 | Filtered | Yes |
| Refrigerated | Yes | Stations | 2 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | NSF-42 |
| NSF-53 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Series | LZSTLG8LC
| LZOOSTL8SC
| LZOOSTL8LC
| EZOOSTL8LC
| LZOTL8WSSK
| LZOTL8WSLK
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Wall Mount Bi-level Versatile ADA Cooler Filtered Refrigerated Light Gray Granite
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Stainless
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Light Gray
| Dual Hands-free Activation Bi-level ADA Cooler Non-filtered Refrigerated Light Gray
| ezH2O Bottle Filling Station with Bi-Level ADA Cooler Hands Free Activation Refrigerated Stainless
| ezH2O Bottle Filling Station with Bi-Level ADA Cooler Hands Free Activation Filtered Refrigerated Light Gray
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | — | Stainless Steel
| — | — | Stainless Steel
| — |
| Operation | Pushbar
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
|
