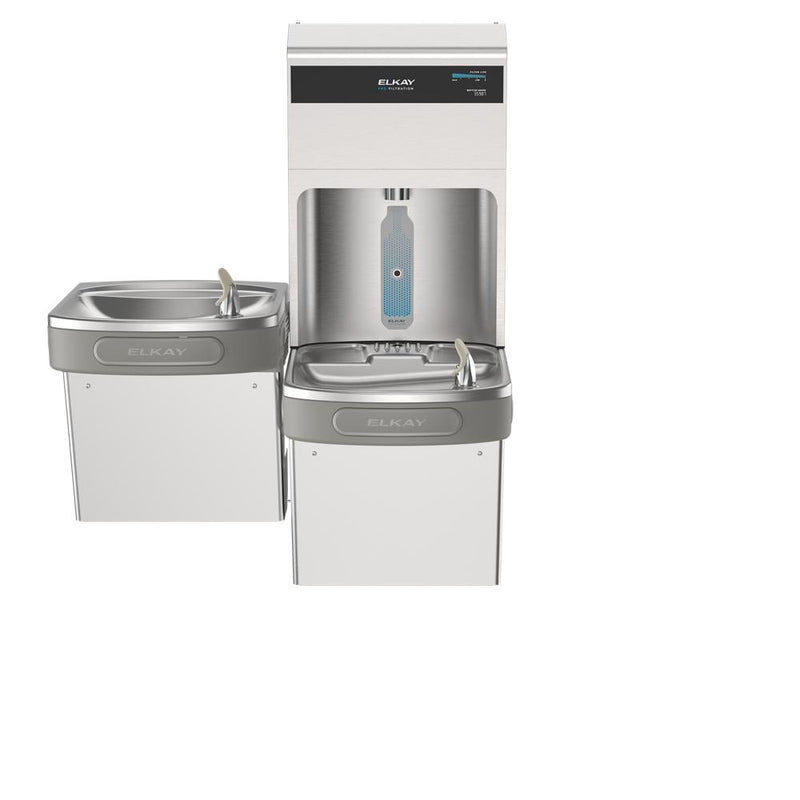

Elkay Pro Filtration Bottle Filling Station & Bi-Level ADA Cooler Non-Ref SS Gray Total PFAS** + UV Filtration LZSTLDWSSPRO-FLP4-UV

The Elkay LZSTLDWSSPRO-FLP4-UV is a filtered bi-level bottle filling station, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.

Elkay Pro Filtration™ Bottle Filling Station & Bi-Level ADA Cooler Non-Ref SS Gray Total PFAS** + UV Filtration. Features shall include Antimicrobial*, Alcove Light, Automatic Filter Flush, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Pro Filtration System, Real Drain, Stainless Steel Alcove, Top Mount Quick Filter Change, Visual Filter Monitor, Cloud Connected Device, UV Protection, Tempered Glass Display Cover, Total PFAS + Lead Filter. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s).

Features

• Certified Filtration: Certified by IAPMO R&T to NSF/ANSI 42, 53 and
• Top-Access Filter Replacement: Change filters in seconds from the
• High Capacity Filtration: Delivers filter life capacity that exceeds
• Smart Connected: Remotely track filter status, anticipate maintenance,
• Automated Filter Startup: Recognizes new filters, automatically resets
• Interactive Display: Blue LCD display shows remaining filter capacity
• Advanced filtration designed to reduce total PFAS, featuring a 4,000-

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

Is this refrigerated?

No, this unit dispenses ambient-temperature water only.

What electrical supply does it need?

115V/60Hz, 5W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Elkay Pro Filtration™ Bottle Filling Station & Bi-Level ADA Cooler
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LZSTLDWSSPRO-FLP4-UV
• Certifications: ADA, NSF-372, NSF-42, NSF-53
• Lead-Free: Yes
• Refrigerated: No
• Filtered: Yes
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 5
• Installation Location: Indoor
• Overall Length (in): 36.75
• Overall Width (in): 19.0
• Overall Height (in): 46.875
