Specifications
Description

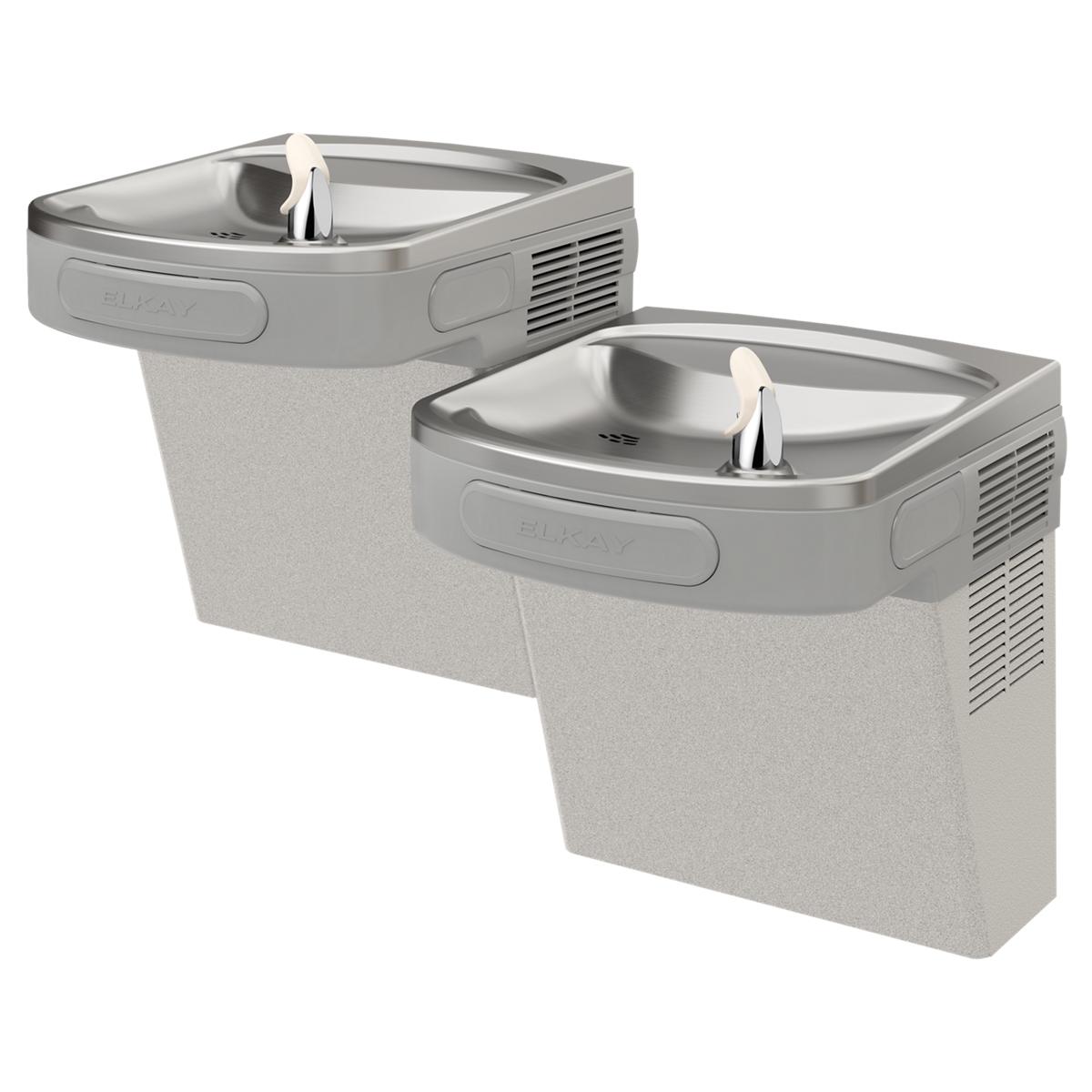

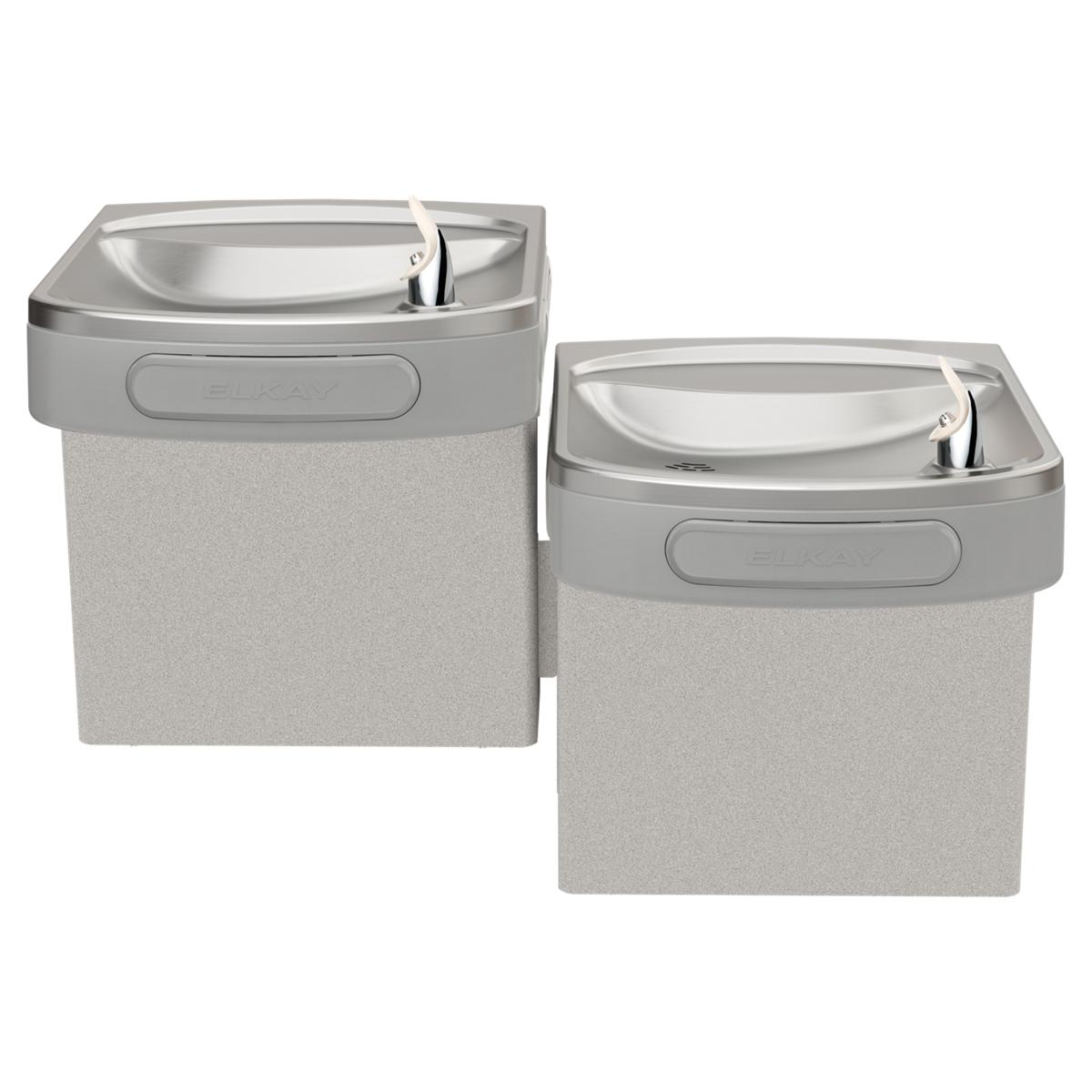

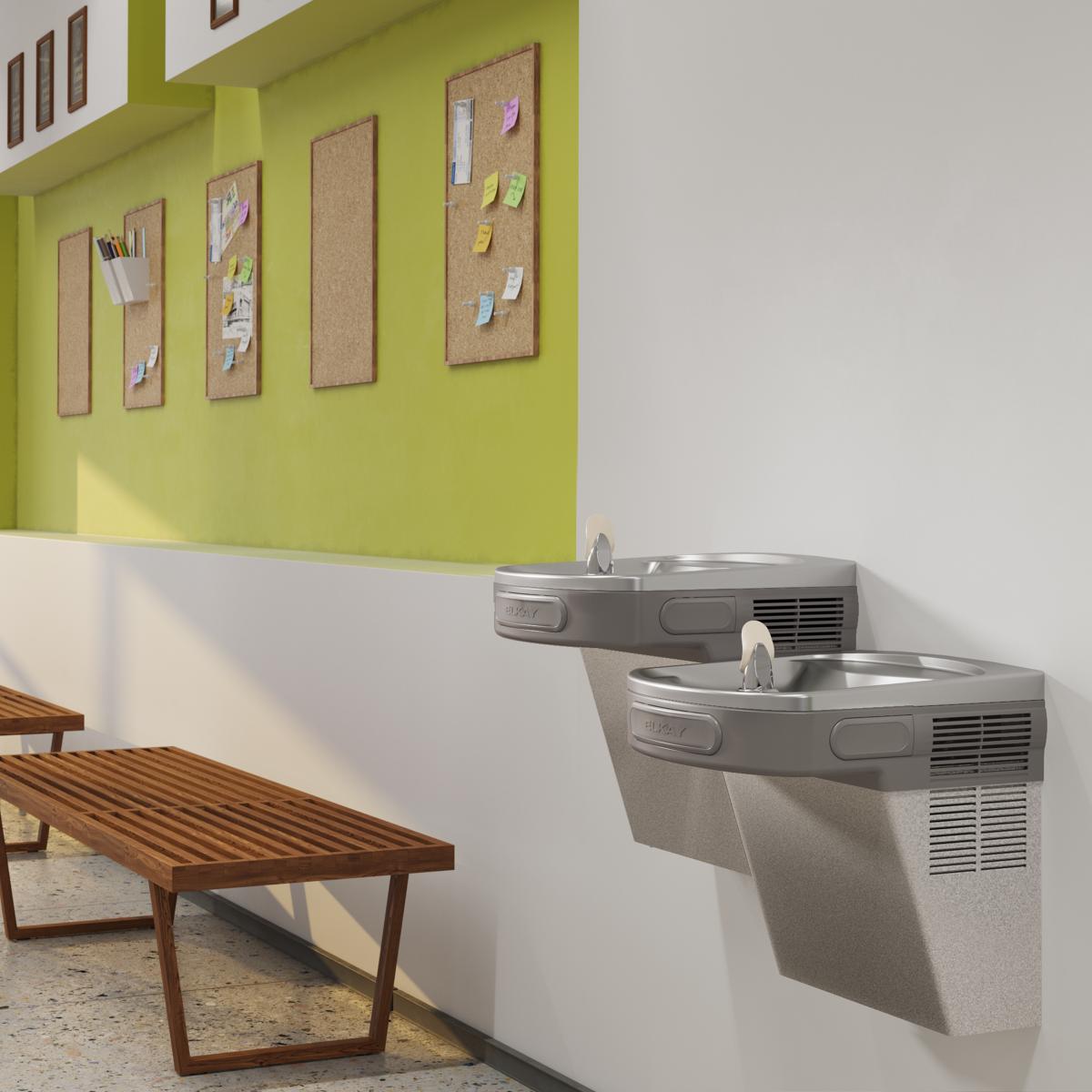

The Elkay LZSTLDDLC is a filtered bi-level water cooler, wall-mount. This model is certified lead-free for potable-water installations.
The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
Features
- Attractive, contemporary design matches modern architecture.
- Electronic bubbler push bars for easy activation.
- Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Vinyl clad finish is durable and attractive.
- Rated for indoor use.
Common Questions
- Is this unit filtered?
- Yes, it ships with an integrated filter cartridge.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- Is this refrigerated?
- No, this unit dispenses ambient-temperature water only.
- What electrical supply does it need?
- 115V/60Hz, 15W.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: Wall Mount Versatile Bi-level ADA Cooler Filtered Non-refrigerated Light Gray Granite
- Operation: Pushbar
- Country of Origin: United States
- MPN: LZSTLDDLC
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Refrigerated: No
- Filtered: Yes
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Flexi-Guard Safety Bubbler
- Electrical Requirement: 115V/60Hz
- Rated Watts: 15
- Full Load Amps: 0.1
- Installation Location: Indoor
- Overall Length (in): 36.75
- Overall Width (in): 19.0
- Overall Height (in): 25.3125
Product Information
Details
| Series | LZSTLDDLC | Device Type | Wall Mount Versatile Bi-level ADA Cooler Filtered Non-refrigerated Light Gray Granite |
| Lead Free | Yes | Operation | Pushbar |
| Baa | USA | Electrical requirement | 115V/60Hz |
| Full load amps | 0.1 | Installation location | Indoor |
| Overall height in | 25.3125 in | Overall length in | 36.75 in |
| Overall width in | 19.0 in | Rated watts | 15 |
| Bilevel | Yes | Bubbler style | Flexi-Guard Safety Bubbler |
| Filtered | Yes | Stations | 2 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | NSF-42 |
| NSF-53 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Series | LZSTLDDLC
| LZOOSTL8SC
| LZOOSTL8LC
| EZOOSTL8LC
| LZOTL8WSSK
| LZOTL8WSLK
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Wall Mount Versatile Bi-level ADA Cooler Filtered Non-refrigerated Light Gray Granite
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Stainless
| Dual Hands-free Activation Bi-level ADA Cooler Filtered Refrigerated Light Gray
| Dual Hands-free Activation Bi-level ADA Cooler Non-filtered Refrigerated Light Gray
| ezH2O Bottle Filling Station with Bi-Level ADA Cooler Hands Free Activation Refrigerated Stainless
| ezH2O Bottle Filling Station with Bi-Level ADA Cooler Hands Free Activation Filtered Refrigerated Light Gray
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | — | Stainless Steel
| — | — | Stainless Steel
| — |
| Operation | Pushbar
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
|
