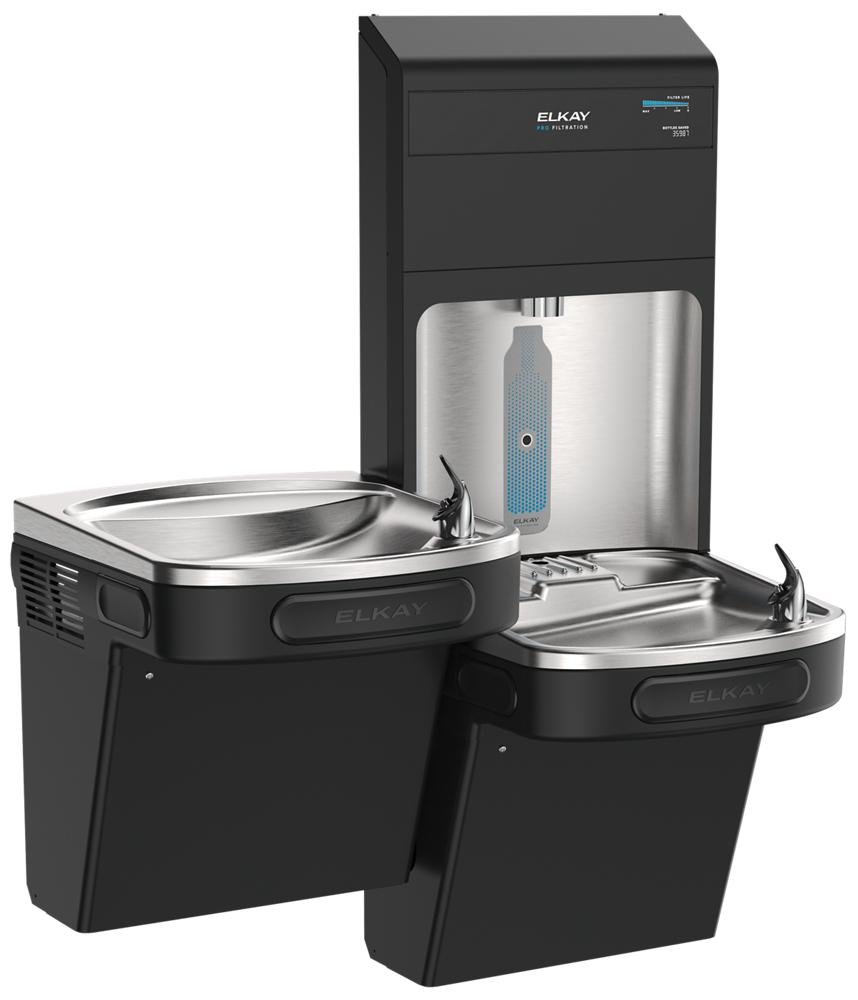

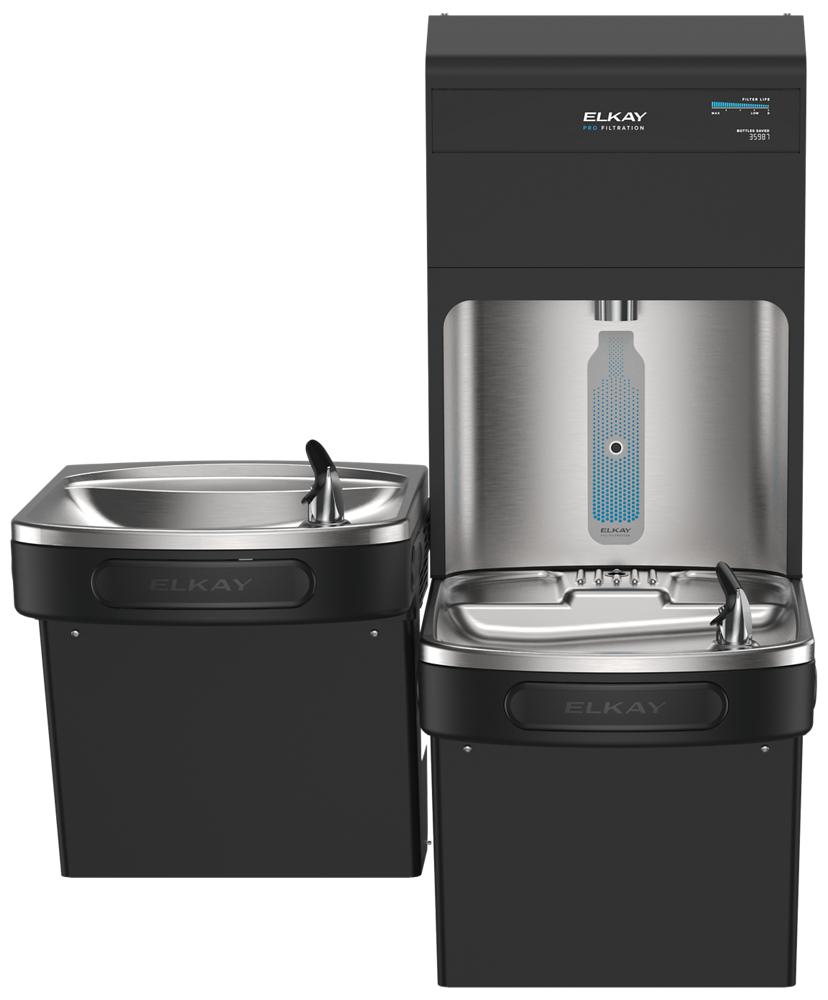

Elkay Pro Filtration Bottle Filling Station & Bi-Level ADA Cooler w/ UV-C LED -, Filtered, 8.0 GPH LZSTL8WSBPRO-UV

The Elkay LZSTL8WSBPRO-UV is a filtered bi-level bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

Elkay® Pro Filtration™ Bottle Filling Station & Bi-Level ADA Cooler w/ UV-C LED - Black. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor, Alcove Light, Pro Filtration System, Top Mount Quick Filter Change, Stainless Steel Alcove, Automatic Filter Flush, UV Protection. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Alcove Light
• Antimicrobial
• Automatic Filter Flush
• Automatic Filter Status Reset
• Energy Savings
• Green Ticker™
• Hands Free
• Laminar Flow
• Pro Filtration System
• Real Drain
• Stainless Steel Alcove
• Top Mount Quick Filter Change
• Visual Filter Monitor
• 115V/60Hz
• Dimensions
• L: 36-3/4IN
• H: 46-7/8IN
• Mounting Type
• Wall Mount (On Wall)
• Chilling Capacity
• Installation Location
• Shipping Dimensions
• L: 24-11/16IN
• W: 19-13/16IN
• H: 33-3/4IN
• Shipping Weight
• Included With Product
• Bottle Filler
• Water Cooler
• Ultra Capacity Filter

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 350W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Elkay® Pro Filtration™ Bottle Filling Station & Bi-Level ADA Cooler w/ UV-C LED - Black
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LZSTL8WSBPRO-UV
• Certifications: ADA, NSF-372, NSF-42, UL-399, UL
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: Yes
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 350
• Installation Location: Indoor
• Overall Length (in): 36.75
• Overall Width (in): 19.0
• Overall Height (in): 46.875
