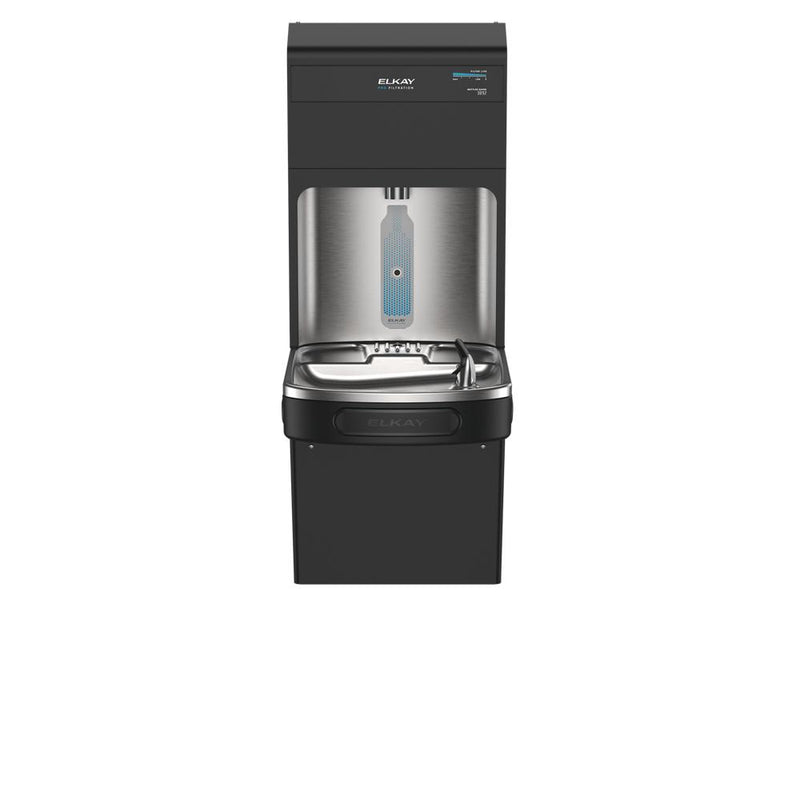

Elkay Pro Filtration Bottle Filling Station & Single ADA Cooler w/ Ultra Capacity Lead Filter -, Filtered LZSDWSBPRO

The Elkay LZSDWSBPRO is a filtered bottle filling station, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.

Elkay® Pro Filtration™ Bottle Filling Station & Single ADA Cooler w/ Ultra Capacity Lead Filter - Black. Features shall include Antimicrobial*, Alcove Light, Automatic Filter Flush, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Pro Filtration System, Real Drain, Stainless Steel Alcove, Top Mount Quick Filter Change, Visual Filter Monitor, Cloud Connected Device, Tempered Glass Display Cover. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Certified Filtration: Certified by IAPMO R&T to NSF/ANSI 42, 53 and 401 to reduce lead, microplastics, cysts, asbestos, turbidity, particulate class 1,
• Top-Access Filter Replacement: Change filters in seconds from the top- minimizing maintenance time and system disruption
• High Capacity Filtration: Delivers filter life capacity that exceeds industry standards, with options up to 20,000 gallons- extending uptime and
• Smart Connected: Remotely track filter status, anticipate maintenance, flush the unit, and monitor bottles saved for sustainability insights
• Automated Filter Startup: Recognizes new filters, automatically resets status lights, and flushes the waterway- reducing installation time and labor
• Interactive Display: Blue LCD display shows remaining filter capacity and 20oz bottles saved - helping teams stay ahead of maintenance and avoid
• 10,000-gallon ultra filter capacity helps extend uptime and reduce maintenance frequency— ideal for high-traffic environments

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Is this ADA compliant?

Yes, this model meets ADA / ICC A117.1 accessibility requirements.

Is this refrigerated?

No, this unit dispenses ambient-temperature water only.

What electrical supply does it need?

115V/60Hz, 5W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Elkay® Pro Filtration™ Bottle Filling Station & Single ADA Cooler w/
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LZSDWSBPRO
• Certifications: ADA, NSF-372, NSF-42, UL-399, UL
• Lead-Free: Yes
• Refrigerated: No
• Filtered: Yes
• Stations Served: 1
• Bi-Level: No
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 5
• Installation Location: Indoor
• Overall Length (in): 18.375
• Overall Width (in): 19.0
• Overall Height (in): 46.875
