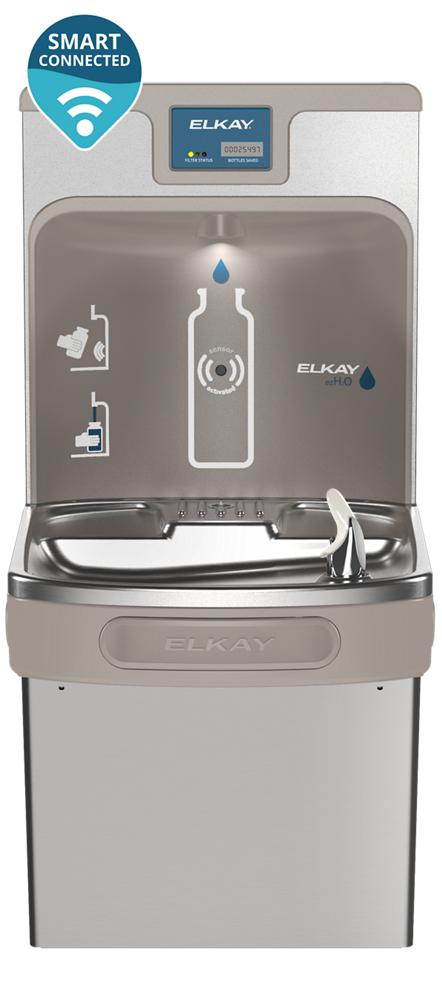

Elkay Enhanced Connected Bottle Filler & Single ADA Cooler Refrig Stainless High Capacity Lead Reduction Drop Down Wrapper LZS8WSSP-W1

The Elkay LZS8WSSP-W1 is a filtered bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body.

Enhanced Connected Bottle Filler & Single ADA Cooler Refrig Stainless High Capacity Lead Reduction Drop Down Wrapper . Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80  F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Visual Filter Monitor, Real Drain, Quick Filter Change, Laminar Flow, Hands Free, Green Ticker™, Filtered, FillSafe™, Energy Savings, Cloud Connected Device, Chilled Water, Automatic Filter Status Reset, Antimicrobial*, Alcove Light. Furnished with Flexi-Guard ® Safety bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Compressor: Hermetically -sealed, reciprocating type, single phase.
• Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is
• Cooling Unit: Combination tube -tank type. Continuous copper tubing
• Refrigerant Control: Refrigerant R -134a is controlled by
• Temperature Control: Easily accessible enclosed adjustable thermostat
• Drop-down wrapper provides easy access to filter from front and side
• The included 6,000-gallon filter is tested and certified to NSF 42, 53
• Connected dashboard lets facility managers monitor filter status across
• Schedule flushing events from your desktop, with automatic record -
• Save time and effort by viewing Bottles Saved across all units in the
• Understand the volume of water consumed vs wasted at a glance,
• Touchless, sensor activation (bottle filler) designed for easy use; easy -
• Hermetically sealed refrigeration system provides chilled water
• Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal
• Intuitive series of blue LED filter status lights accurately displays filter
• System automatically recognizes new filter and updates LED lights
• Green Ticker™ informs user of number of 20 oz. plastic water bottles
• Key plastic components are manufactured with silver ion antimicrobial
• Low-energy LED light encourages use, assists with filling dark bottles
• One-box packaging so the cooler and bottle filler ship together *Antimicrobial claims are in reference to components manufactured

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Is this ADA compliant?

Yes, this model meets ADA / ICC A117.1 accessibility requirements.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 370W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: Enhanced Connected Bottle Filler & Single ADA Cooler Refrig
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LZS8WSSP-W1
• Certifications: ADA, NSF-42, UL-399, UL
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: Yes
• Stations Served: 1
• Bi-Level: No
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 370
• Installation Location: Indoor
• Overall Length (in): 18.375
• Overall Width (in): 19.0
• Overall Height (in): 39.4375
