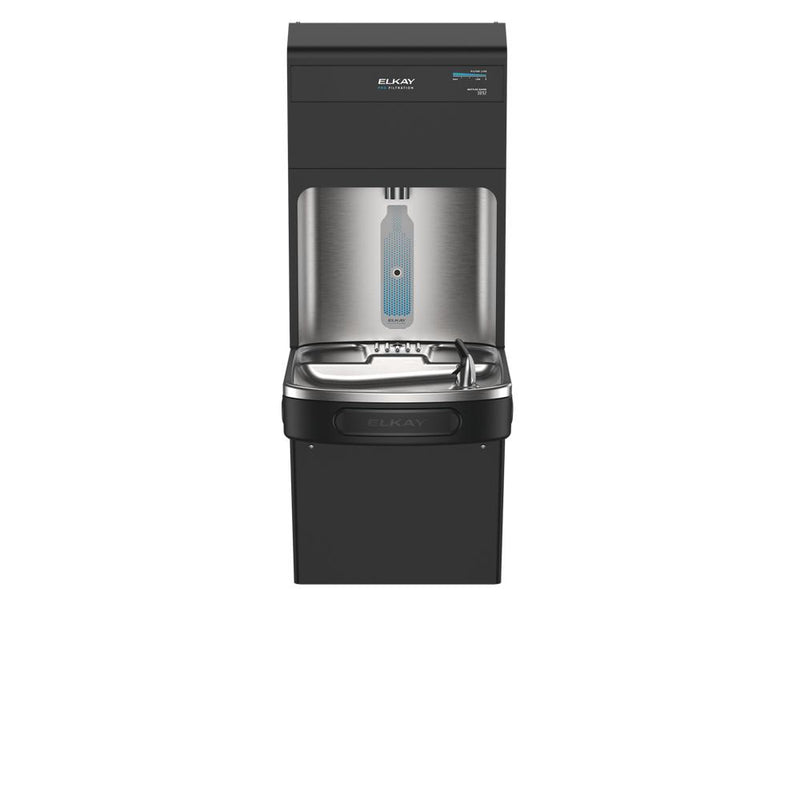

The Elkay LZS8WSBPRO-FLP4-FSR5 is a filtered bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.
Elkay® Pro Filtration™ Bottle Filling Station & Single ADA Cooler w/ Lead + Total PFAS** & Sediment Prefilter - Black. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Filtered, Green Ticker™, Automatic Filter Status Reset, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor, Energy Savings, Two Stage Filtration, Alcove Light, Pro Filtration System, Top Mount Quick Filter Change, Stainless Steel Alcove, Automatic Filter Flush, Total PFAS + Lead Filter. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
Features
- Compressor: Hermetically-sealed, reciprocating type, single phase.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is
- Cooling Unit: Combination tube-tank type. Continuous copper tubing
- Refrigerant Control: Refrigerant R-134a is controlled by
- Temperature Control: Easily accessible enclosed adjustable thermostat
- Certified Filtration: Certified by IAPMO R&T to NSF/ANSI 42, 53 and 401 to reduce lead, microplastics, cysts, asbestos, turbidity, particulate class 1,
- Top-Access Filter Replacement: Change filters in seconds from the top- minimizing maintenance time and system disruption
- High Capacity Filtration: Delivers filter life capacity that exceeds industry standards - extending uptime and reducing filter changeouts
- Smart Connected: Remotely track filter status, anticipate maintenance, flush the unit, and monitor bottles saved for sustainability insights
- Automated Filter Startup: Recognizes new filters, automatically resets status lights, and flushes the waterway- reducing installation time and labor
- Interactive Display: Blue LCD display shows remaining filter capacity and 20oz bottles saved - helping teams stay ahead of maintenance and avoid
- Advanced filtration designed to reduce Total PFAS***, featuring a 4,000-gallon capacity for targeted contaminant reduction. Stage 1 sediment
Common Questions
- Is this unit filtered?
- Yes, it ships with an integrated filter cartridge.
- Is this ADA compliant?
- Yes, this model meets ADA / ICC A117.1 accessibility requirements.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 352W.
- How does this mount?
- Wall-Mount installation.
Specifications
-
Type: Elkay® Pro Filtration™ Bottle Filling Station & Single ADA Cooler w/
-
Body Material: Stainless Steel
-
Operation: Sensor
-
MPN: LZS8WSBPRO-FLP4-FSR5
-
Certifications: ADA, NSF-372, NSF-42, NSF-53, UL-399, UL
-
Lead-Free: Yes
-
Chilling Capacity (GPH): 8.0
-
Refrigerated: Yes
-
Filtered: Yes
-
Stations Served: 1
-
Bi-Level: No
-
Bubbler Style: Flexi-Guard Safety Bubbler
-
Electrical Requirement: 115V/60Hz
-
Rated Watts: 352
-
Installation Location: Indoor
-
Overall Length (in): 18.375
-
Overall Width (in): 19.0
-
Overall Height (in): 46.875
