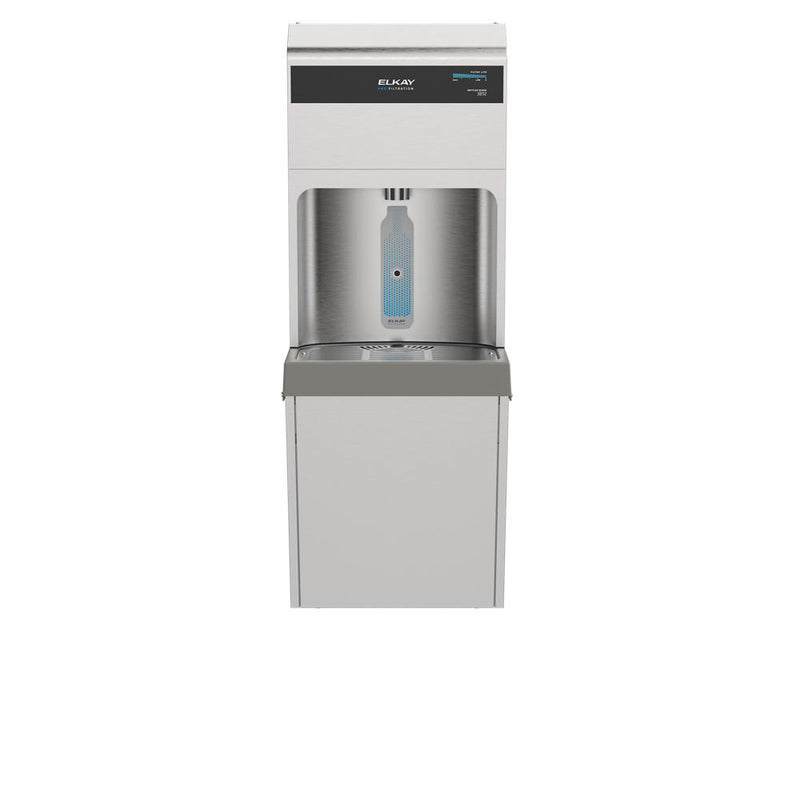

The Elkay LZ8WSSPRO is a filtered bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body.
Elkay® Pro Filtration™ Single ADA Bottle Filler Only w/ Ultra Capacity Lead Filter - SS. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Alcove Light, Antimicrobial*, Automatic Filter Flush, Automatic Filter Status Reset, Cloud Connected Device, Dual Filter, Filtered, Green Ticker™, Hands Free, Laminar Flow, Pro Filtration System, Real Drain, Stainless Steel Alcove, Tempered Glass Display Cover, Top Mount Quick Filter Change, Visual Filter Monitor. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
Features
- Compressor: Hermetically-sealed, reciprocating type, single phase.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is
- Cooling Unit: Combination tube-tank type. Continuous copper tubing
- Refrigerant Control: Refrigerant R-134a is controlled by
- Temperature Control: Easily accessible enclosed adjustable thermostat
- Certified Filtration: Certified to NSF/ANSI 42, 53 & 401 to reduce lead, total PFAS, microplastics, copper, asbestos, and more
- Top-Access Filter Replacement: Change filters in seconds from the top- minimizing maintenance time and system disruption
- High Capacity Filtration: Delivers filter life capacity that exceeds industry standards, with options up to 20,000 gallons- extending uptime and
- Smart Connected: Remotely track filter status, anticipate maintenance, flush the unit, and monitor bottles saved for sustainability insights
- Automated Filter Startup: Recognizes new filters, automatically resets status lights, and flushes the waterway- reducing installation time and labor
- Interactive Display: Blue LCD display shows remaining filter capacity and 20oz bottles saved - helping teams stay ahead of maintenance and avoid
- 10,000-gallon ultra filter capacity helps extend uptime and reduce maintenance frequency— ideal for high-traffic environments
Common Questions
- Is this unit filtered?
- Yes, it ships with an integrated filter cartridge.
- Is this ADA compliant?
- Yes, this model meets ADA / ICC A117.1 accessibility requirements.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 15W.
- How does this mount?
- Wall-Mount installation.
Specifications
-
Type: Elkay® Pro Filtration™ Single ADA Bottle Filler Only w/ Ultra
-
Body Material: Stainless Steel
-
Operation: Sensor
-
MPN: LZ8WSSPRO
-
Certifications: ADA, NSF-42, UL-399, UL
-
Chilling Capacity (GPH): 8.0
-
Refrigerated: Yes
-
Filtered: Yes
-
Stations Served: 1
-
Bi-Level: No
-
Bubbler Style: No Bubbler
-
Electrical Requirement: 115V/60Hz
-
Rated Watts: 15
-
Installation Location: Indoor
-
Overall Length (in): 18.0
-
Overall Width (in): 11.9375
-
Overall Height (in): 48.5625
