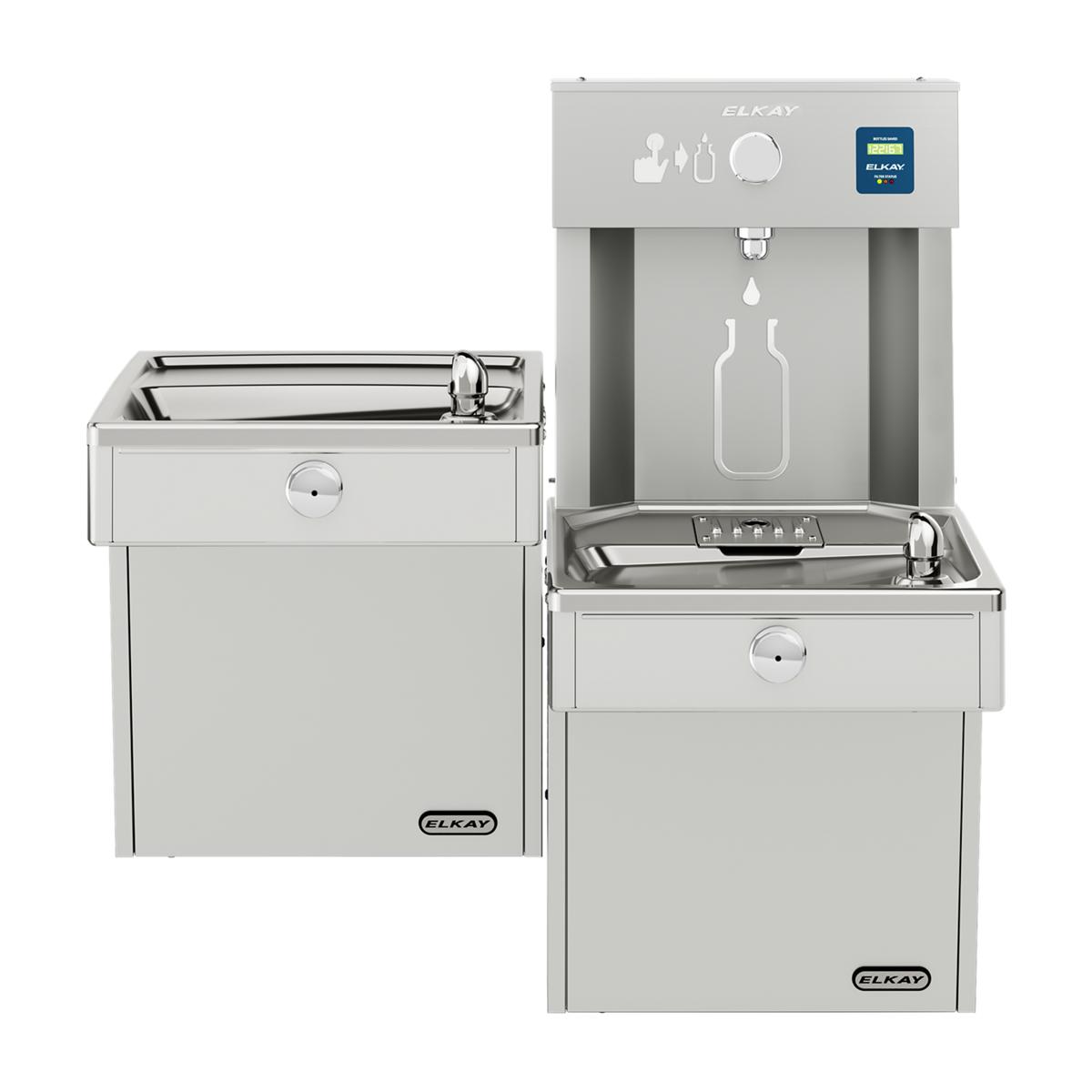

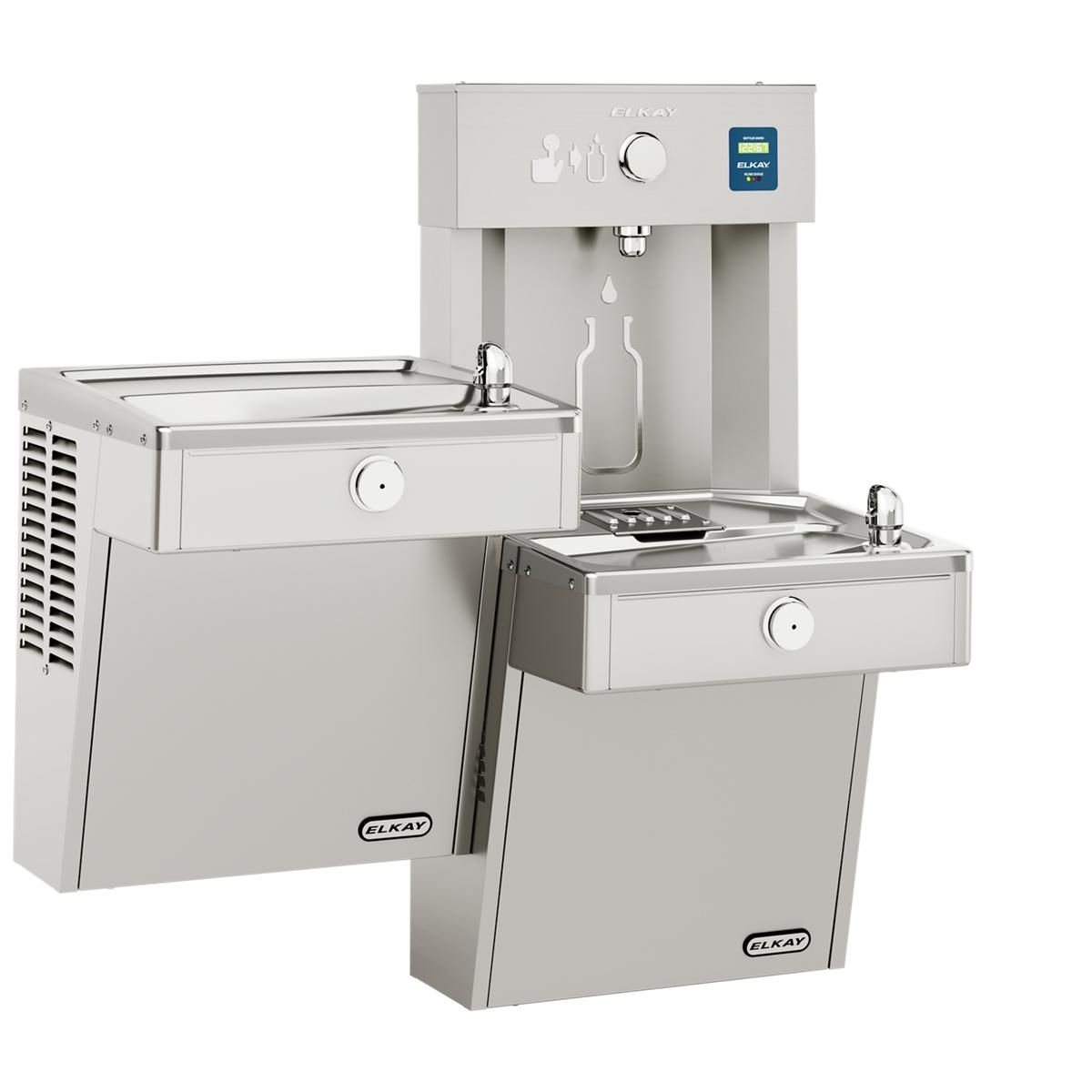

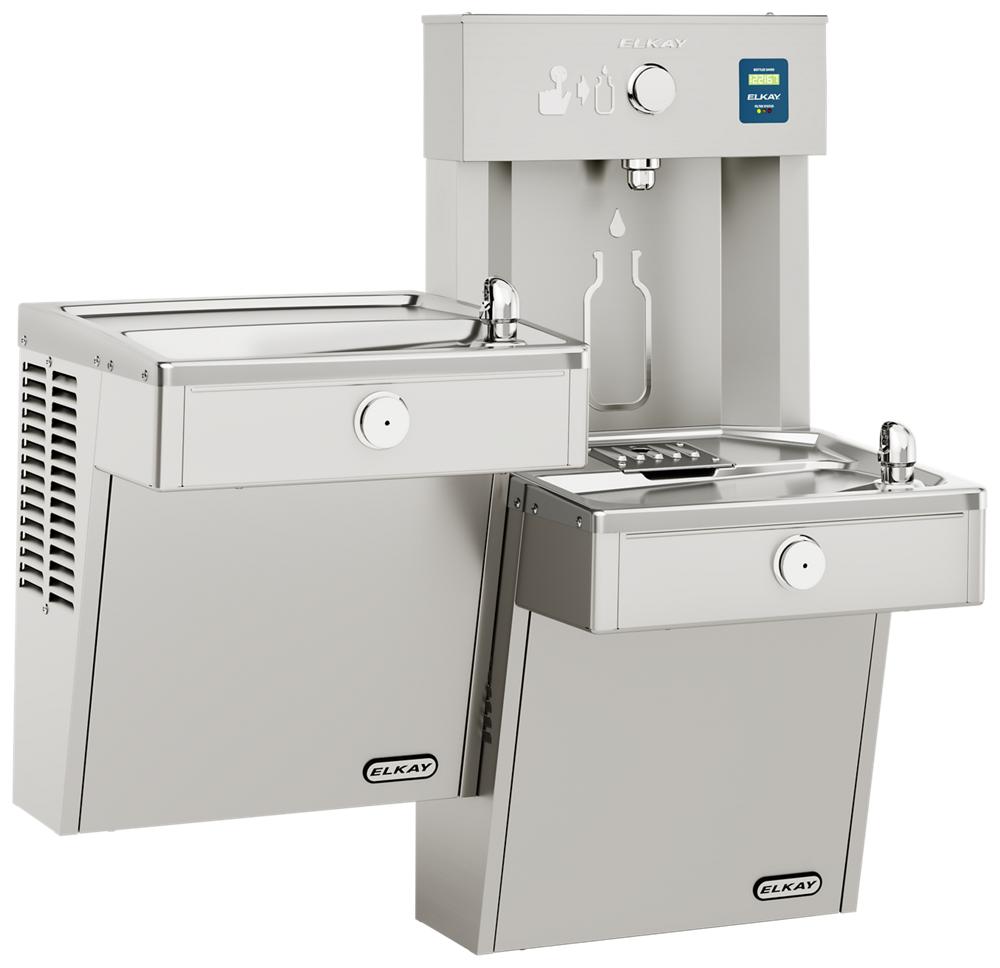

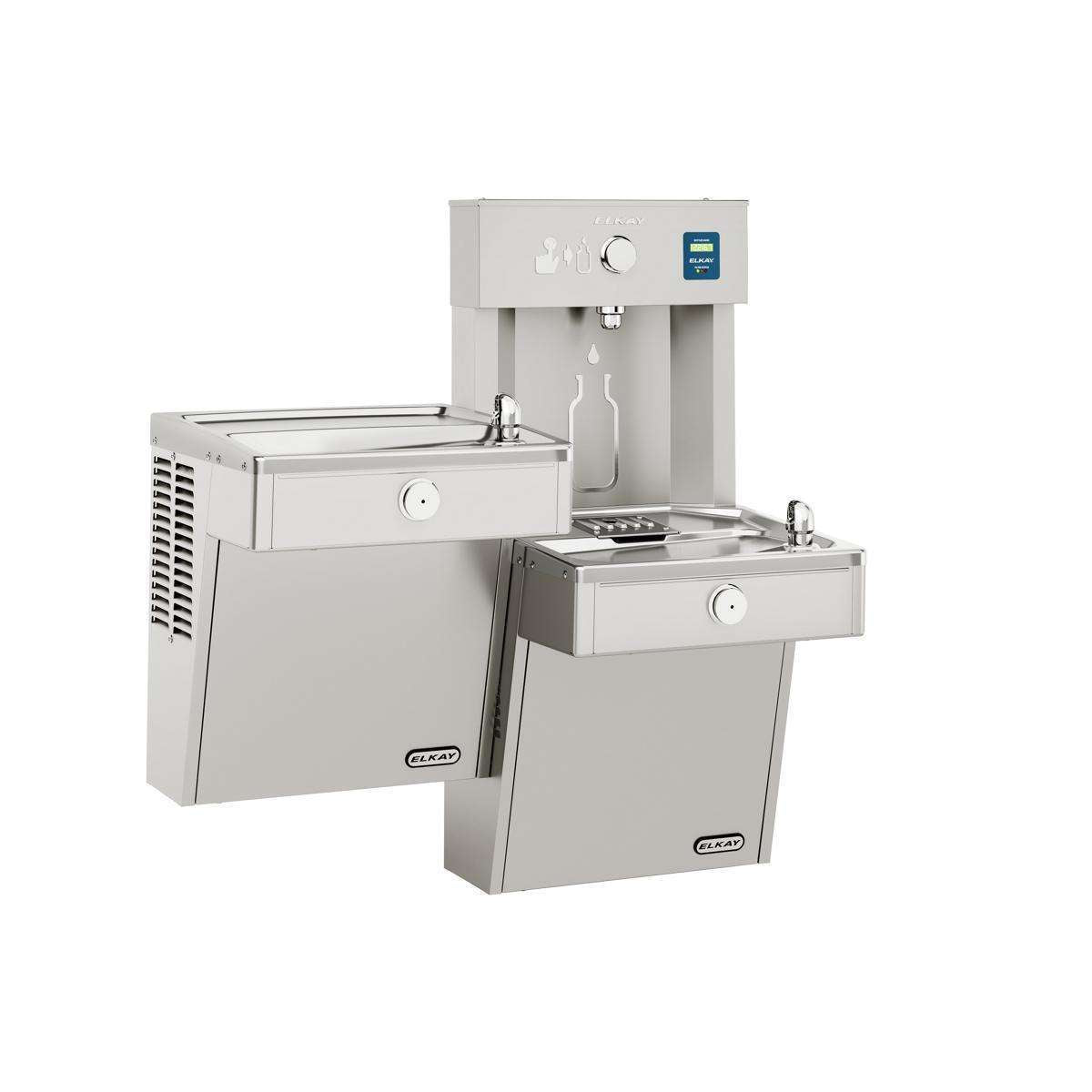

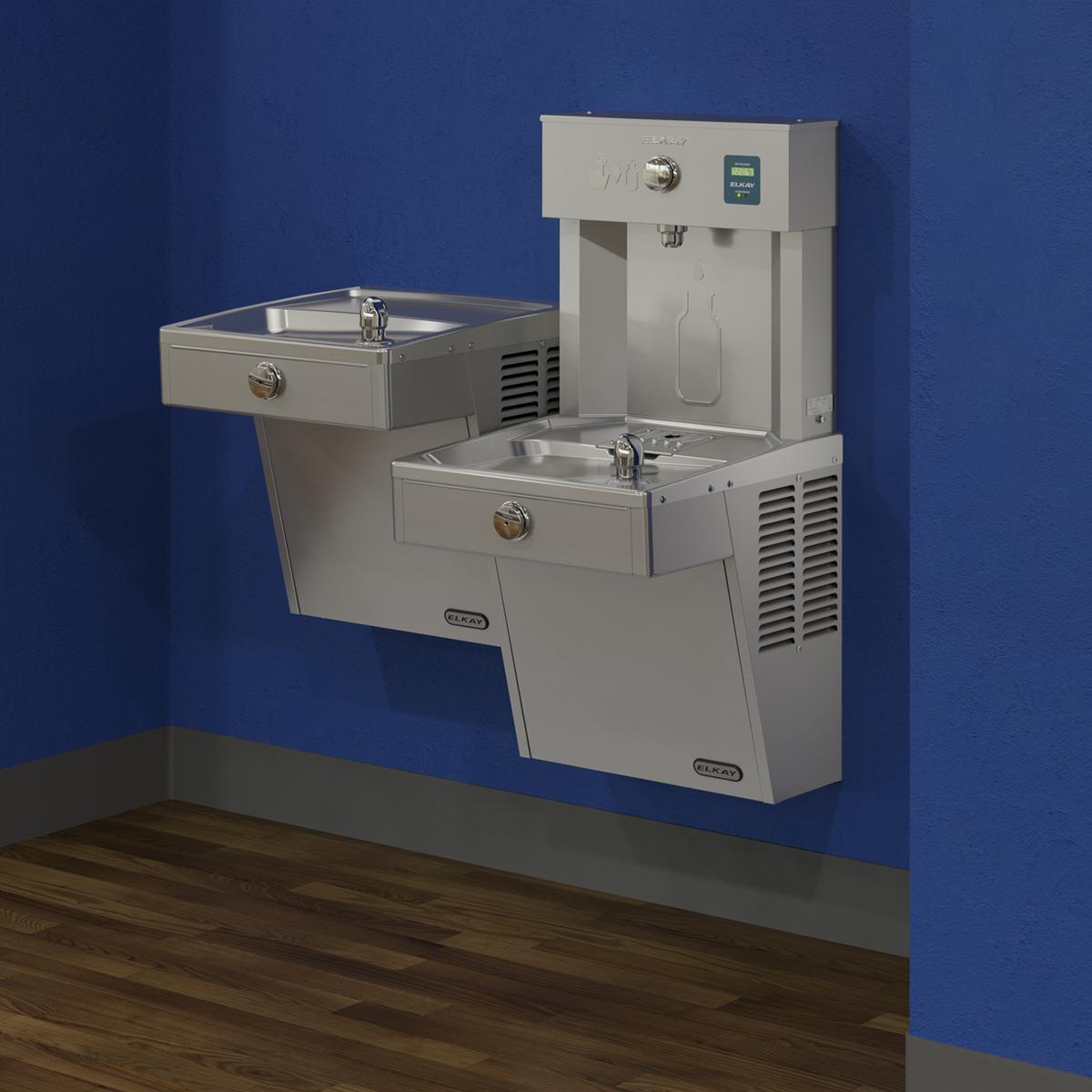

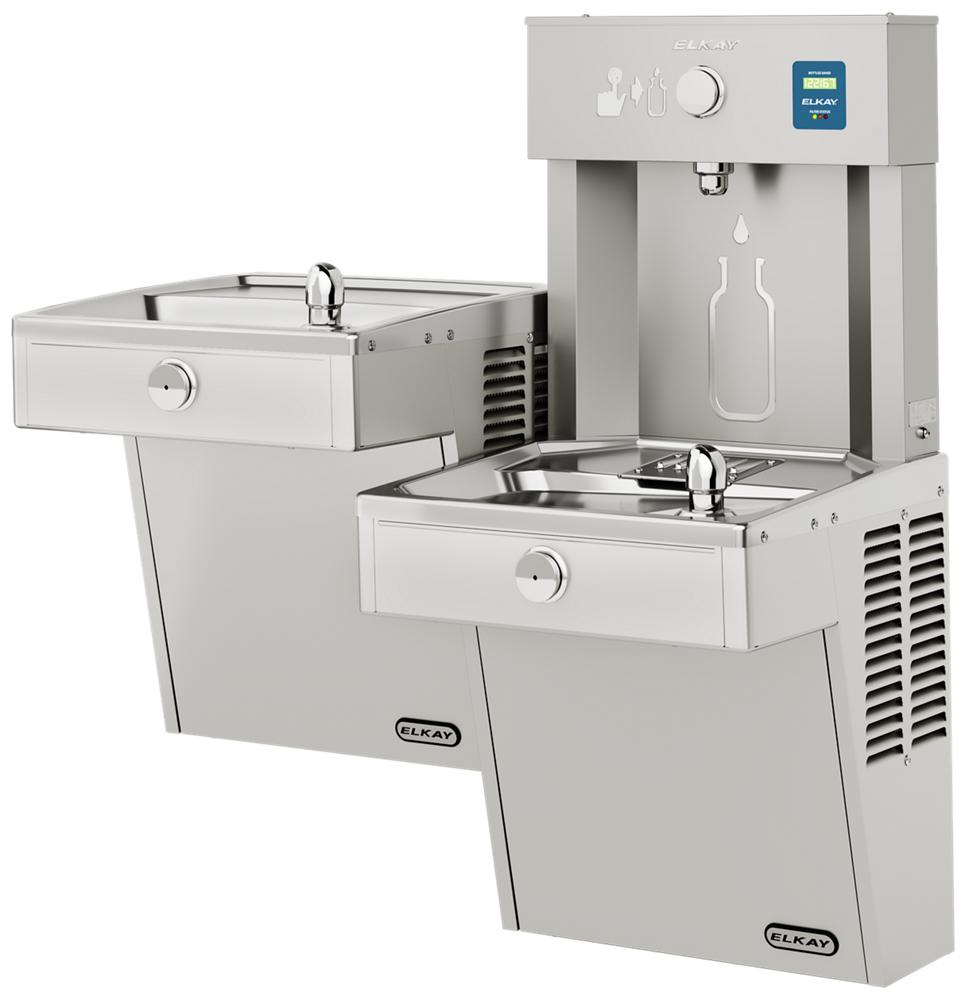

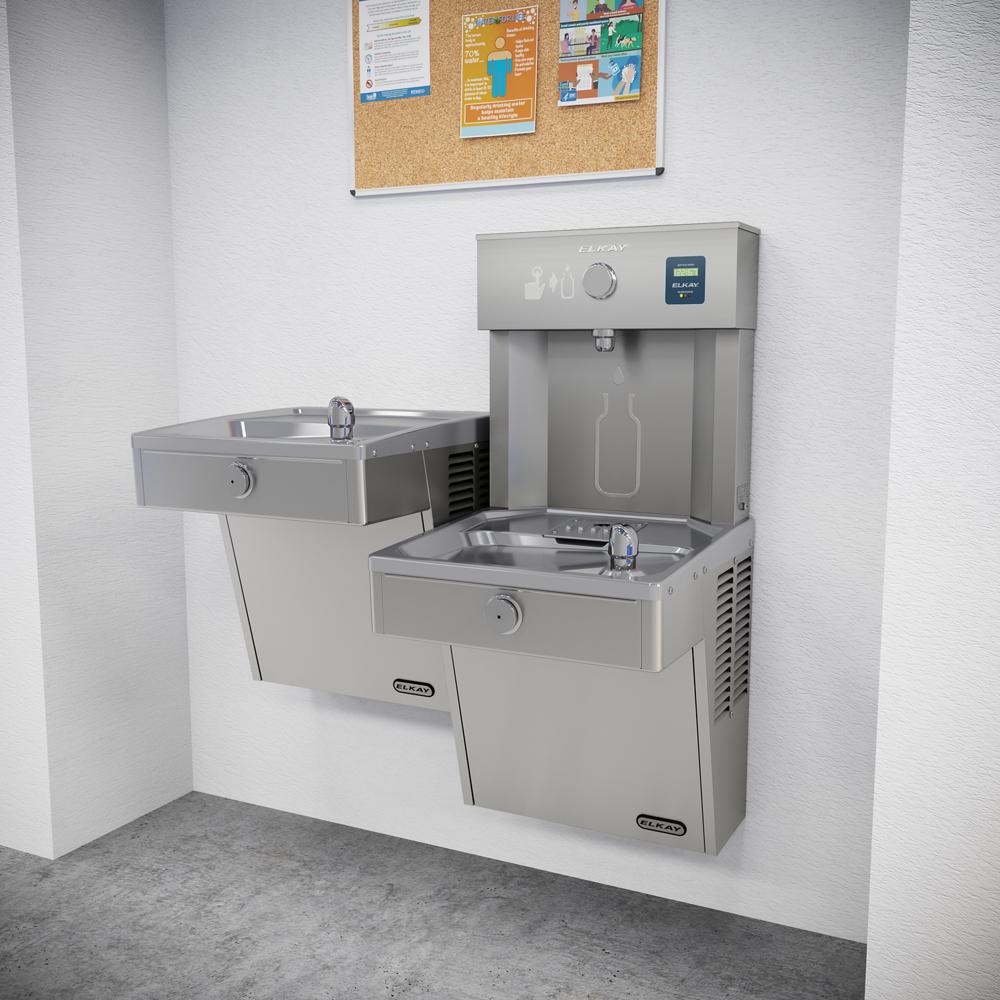

Elkay ezH2O Vandal-Resistant Bottle Filling Station & Bi-Level Cooler, Filtered, 8.0 GPH, Stainless Steel LVRCTL8WSK

The Elkay LVRCTL8WSK is a filtered bi-level bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation with automatic 20-second shut-off timer on bottle filler.

Features

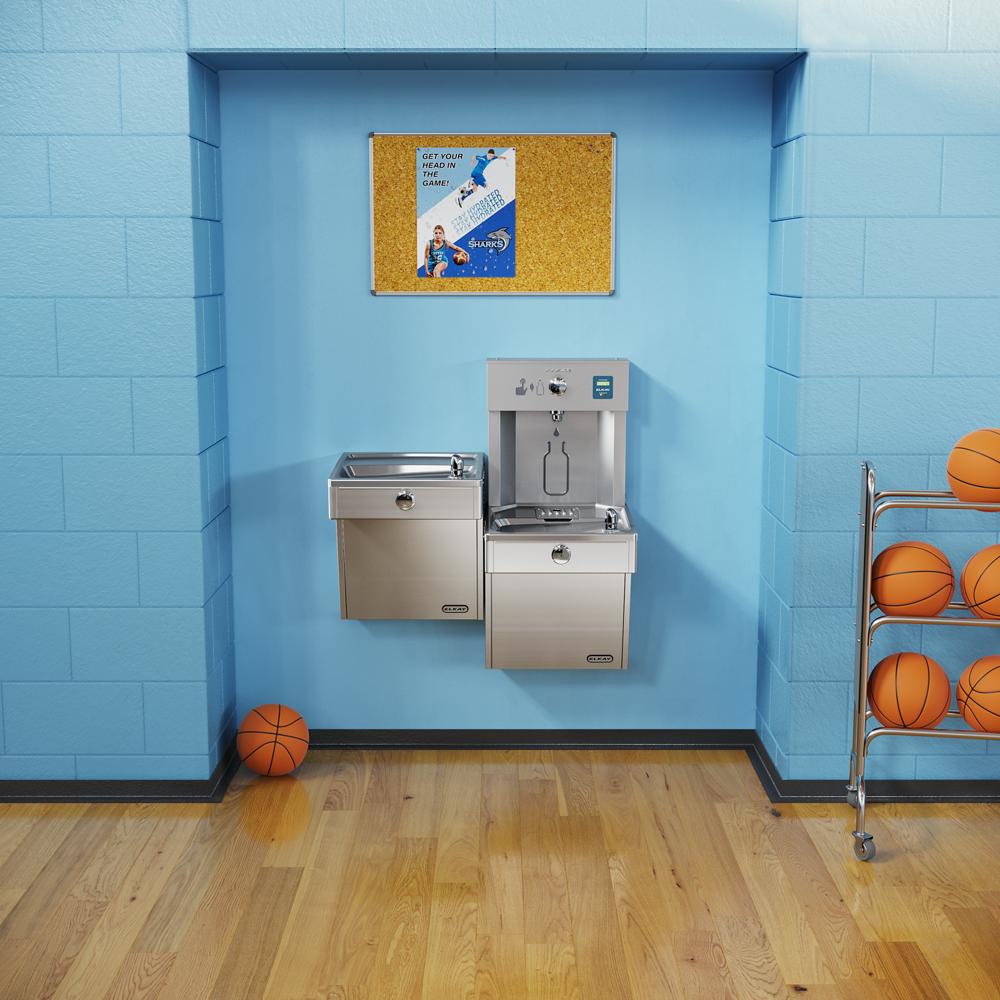

• Ideal for heavy-use installations such as educational and indoor recreational facilities.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
• Fill rate is 1.1 GPM.
• Visual filter monitor with LED filter status indicator for when filter change is necessary.
• The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
• Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
• Laminar flow provides clean fill with minimal splash.

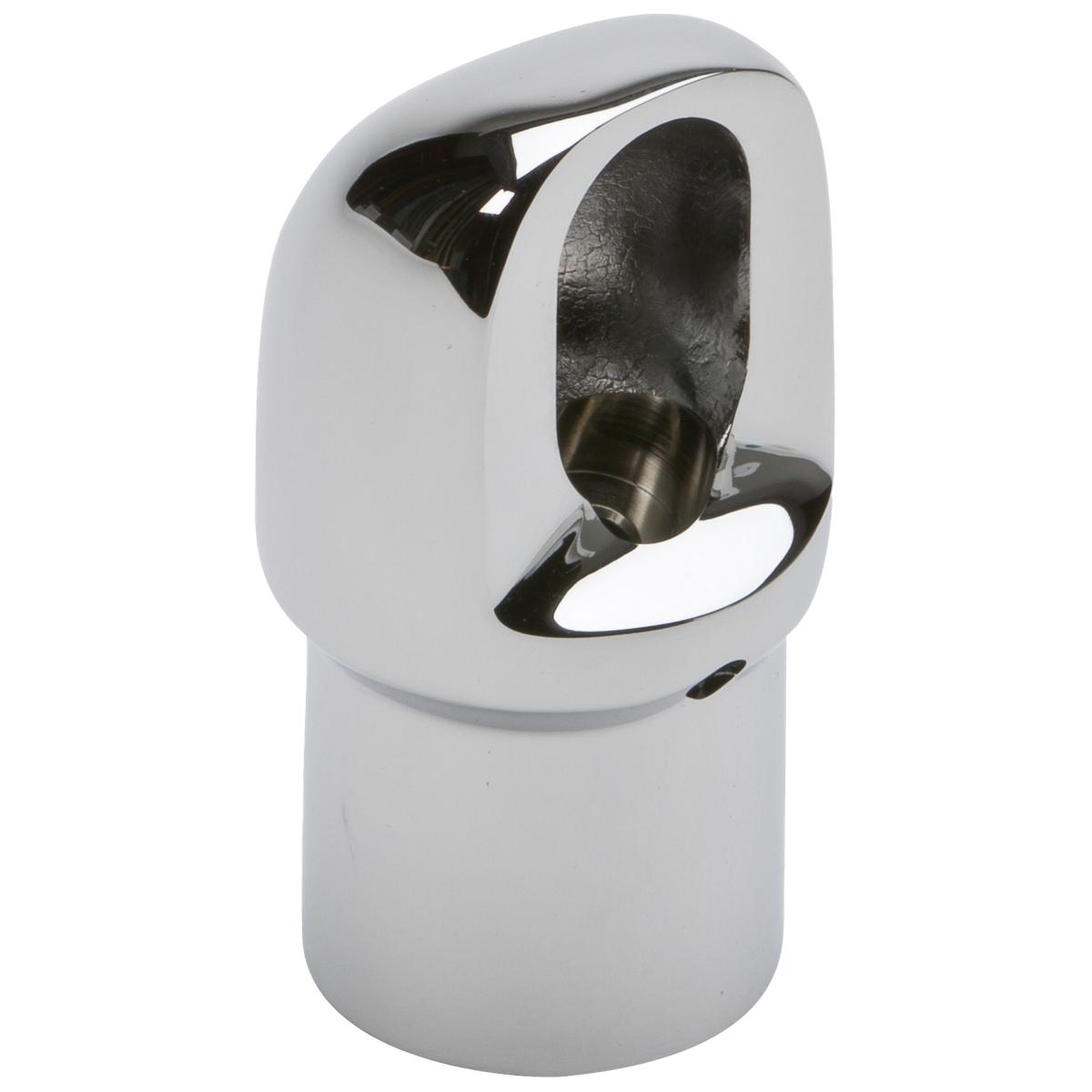

• Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
• Rated for indoor use.

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 370W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: ezH2O Vandal-Resistant Bottle Filling Station & Bi-Level Cooler Filtered Refrigerated Stainless
• Body Material: Stainless Steel
• Operation: Push Button
• Country of Origin: United States
• MPN: LVRCTL8WSK
• Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: Yes
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Vandal Resistant
• Electrical Requirement: 115V/60Hz
• Rated Watts: 370
• Full Load Amps: 1.0
• Installation Location: Indoor
• Overall Length (in): 36.125
• Overall Width (in): 18.625
• Overall Height (in): 38.8125
• Vandal Resistant: Yes
