Specifications
Description

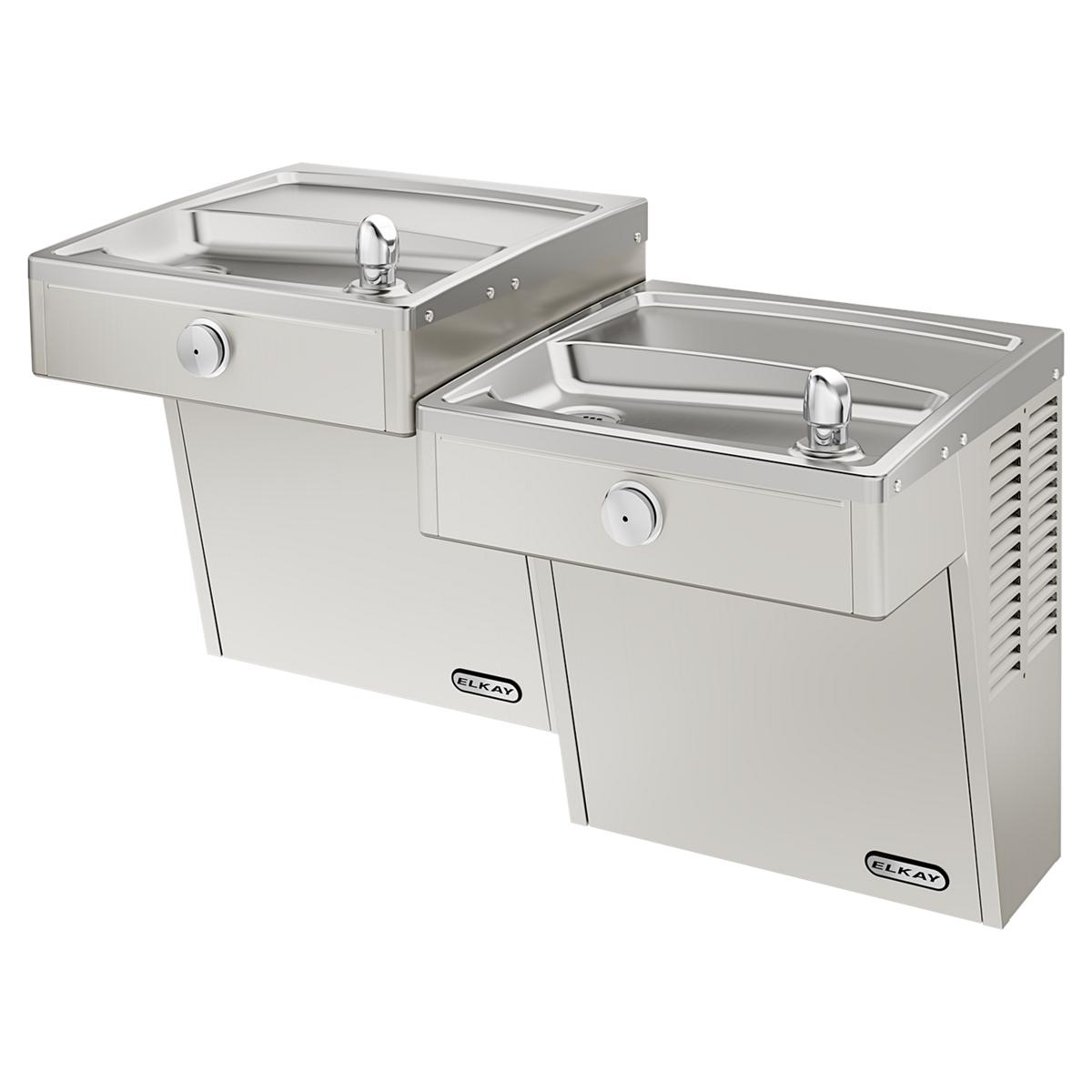

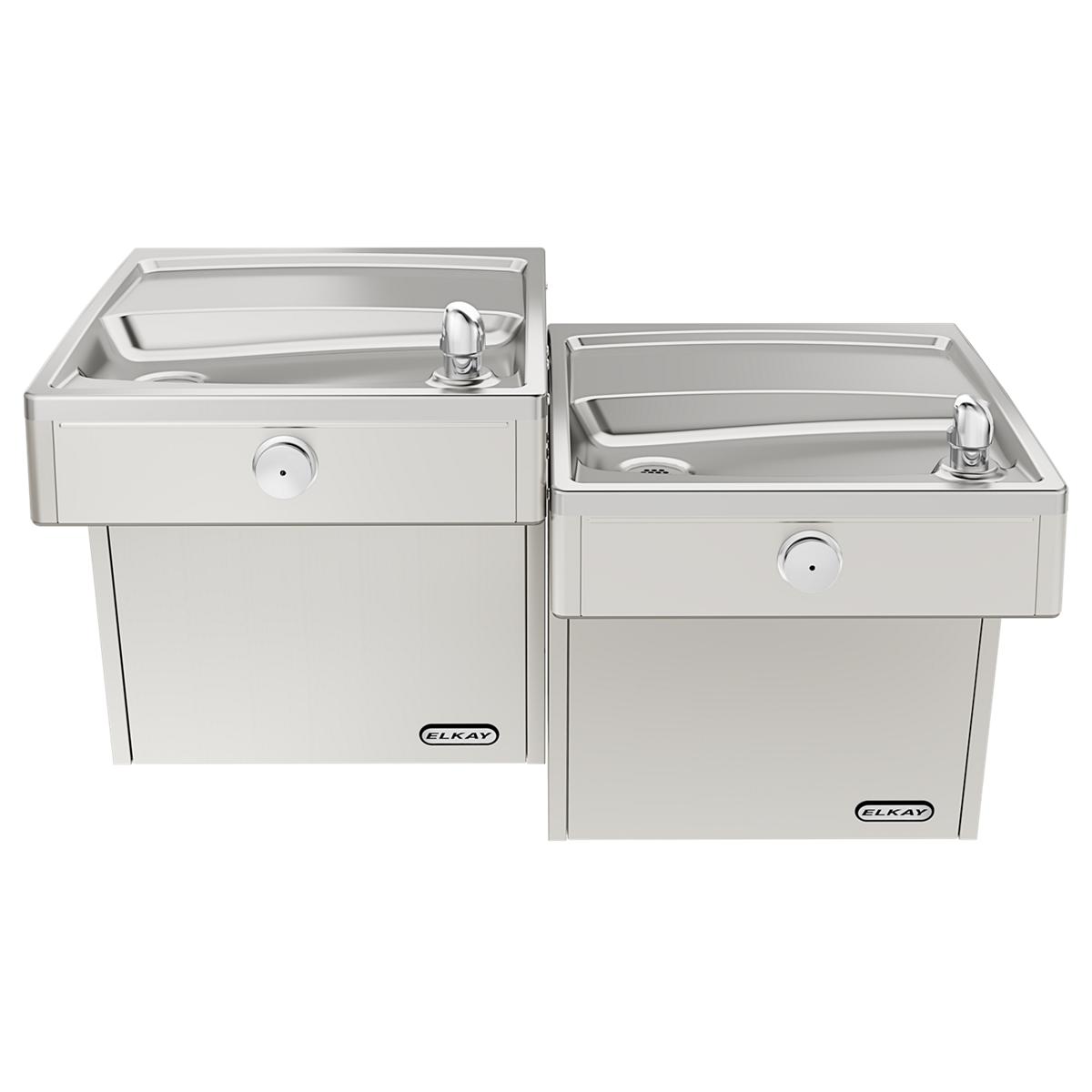

The Elkay LVRCTL8SC is a filtered bi-level water cooler, wall-mount, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.
Vandal-resistant wall-mount water cooler features tamper-resistant pushbutton activation and one-piece bubbler.
Features
- Classic design stainless steel cooler provides an attractive and durable product.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
- Stainless steel construction withstands abusive environments and resists stains.
- Tamper-resistant fasteners and vent screens help protect against vandalism.
- Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Filter systems certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Rated for indoor use.
Common Questions
- Is this unit filtered?
- Yes, it ships with an integrated filter cartridge.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 575W.
- How does this mount?
- Wall-Mount installation.
Specifications
- Type: Wall Mount Vandal Resistant Bi-level ADA Cooler Filtered Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Push Button
- Country of Origin: United States
- MPN: LVRCTL8SC
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Chilling Capacity (GPH): 8.0
- Refrigerated: Yes
- Filtered: Yes
- Stations Served: 2
- Bi-Level: Yes
- Bubbler Style: Vandal Resistant
- Electrical Requirement: 115V/60Hz
- Rated Watts: 575
- Full Load Amps: 5.0
- Installation Location: Indoor
- Overall Length (in): 36.3125
- Overall Width (in): 18.625
- Overall Height (in): 27.125
- Vandal Resistant: Yes
Product Information
Details
| Series | LVRCTL8SC | Device Type | Wall Mount Vandal Resistant Bi-level ADA Cooler Filtered Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Push Button | Baa | USA |
| Electrical requirement | 115V/60Hz | Full load amps | 5.0 |
| Installation location | Indoor | Overall height in | 27.125 in |
| Overall length in | 36.3125 in | Overall width in | 18.625 in |
| Rated watts | 575 | Vandal resistant | Yes |
| Bilevel | Yes | Bubbler style | Vandal Resistant |
| Chilling capacity gph | 8.0 | Filtered | Yes |
| Refrigerated | Yes | Stations | 2 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | NSF-42 |
| NSF-53 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Freeze Proof | — | — | — | — | Yes | Yes |
| Series | LVRCTL8SC
| VRC8S
| VRCTLDDSC
| VRCTLR8SC
| VRCTLFRDDSC
| VRCTLFR8SC
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Wall Mount Vandal Resistant Bi-level ADA Cooler Filtered Refrigerated Stainless
| Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless
| Wall Mount Vandal Resistant Bi-level ADA Cooler Non-filtered Non-refrigerated Stainless
| Wall Mount Vandal Resistant Bi-level Reverse ADA Cooler Non-filtered Refrigerated Stainless
| Wall Mount Vandal Resistant Bi-level ADA Cooler Frost Resistant Non-filtered Non-refrigerated Stainless
| Wall Mount Vandal Resistant Bi-level ADA Cooler Frost Resistant Non-filtered Refrigerated Stainless
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Operation | Push Button
| Push Button
| Push Button
| Push Button
| Push Button
| Push Button
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
|
