Description

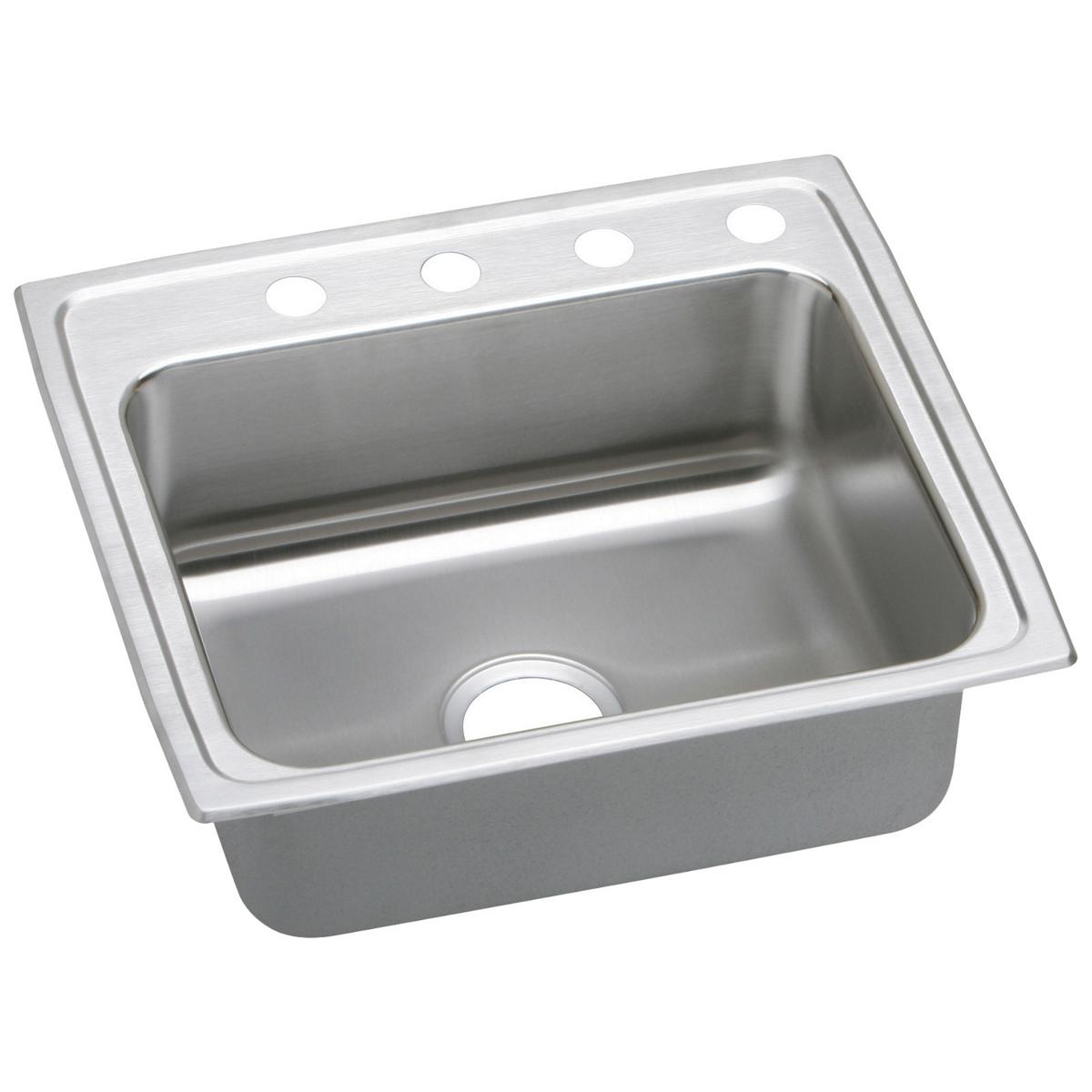

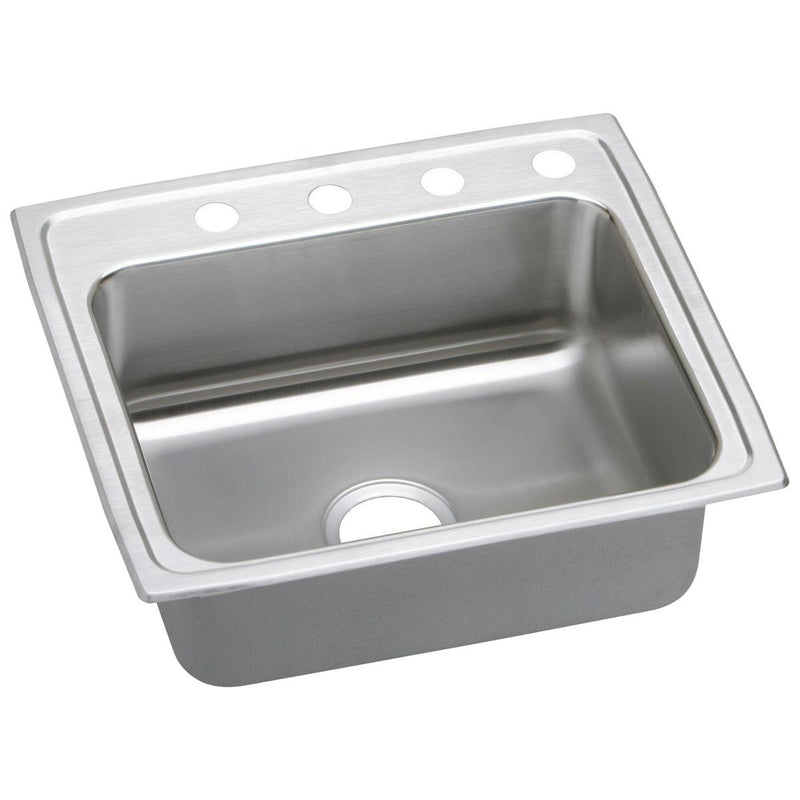

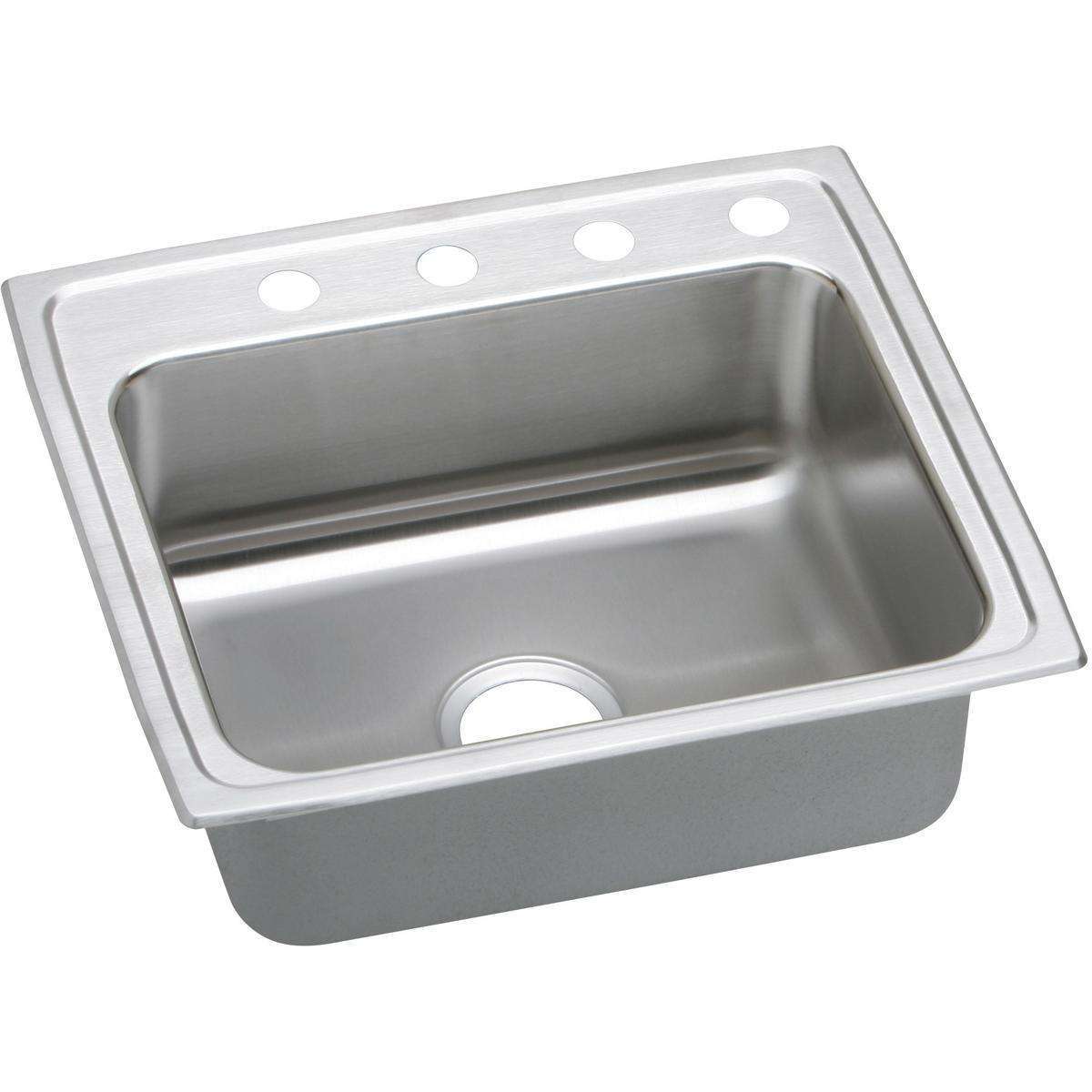

The Elkay LRADQ2219601 is a Lustertone Classic Stainless Steel 22" x 19-1/2" x 6", Single Bowl Drop-in ADA Sink. It features a stainless steel body.
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- SOUND GUARD® TECHNOLOGY: Large pads enhance sound-deadening performance for a quieter time at the sink.
- QUICK-CLIP MOUNTING SYSTEM: Quickly and securely install sink from above the counter with a series of clips that attach to laminate countertops.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
Common Questions
- What size cabinet does this need?
- A minimum 27" wide base cabinet.
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 1.
Specifications
- Type: Lustertone Classic Stainless Steel 22" x 19-1/2" x 6", Single Bowl Drop-in ADA Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: United States
- MPN: LRADQ2219601
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
- Number of Bowls: 1
- Minimum Cabinet Size (in): 27
- Bowl Dimensions: 18" x 14" x 5-7/8"
- Drain Location: Rear Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: No
- Mounting Hardware: Included for 3/4" (19mm) countertop
- Mount Type: Drop-In
- Coating / Finish: Lustrous Satin
- Faucet Holes: 1
- Overall Length (in): 22.0
- Overall Width (in): 19.5
- Overall Height (in): 6.0

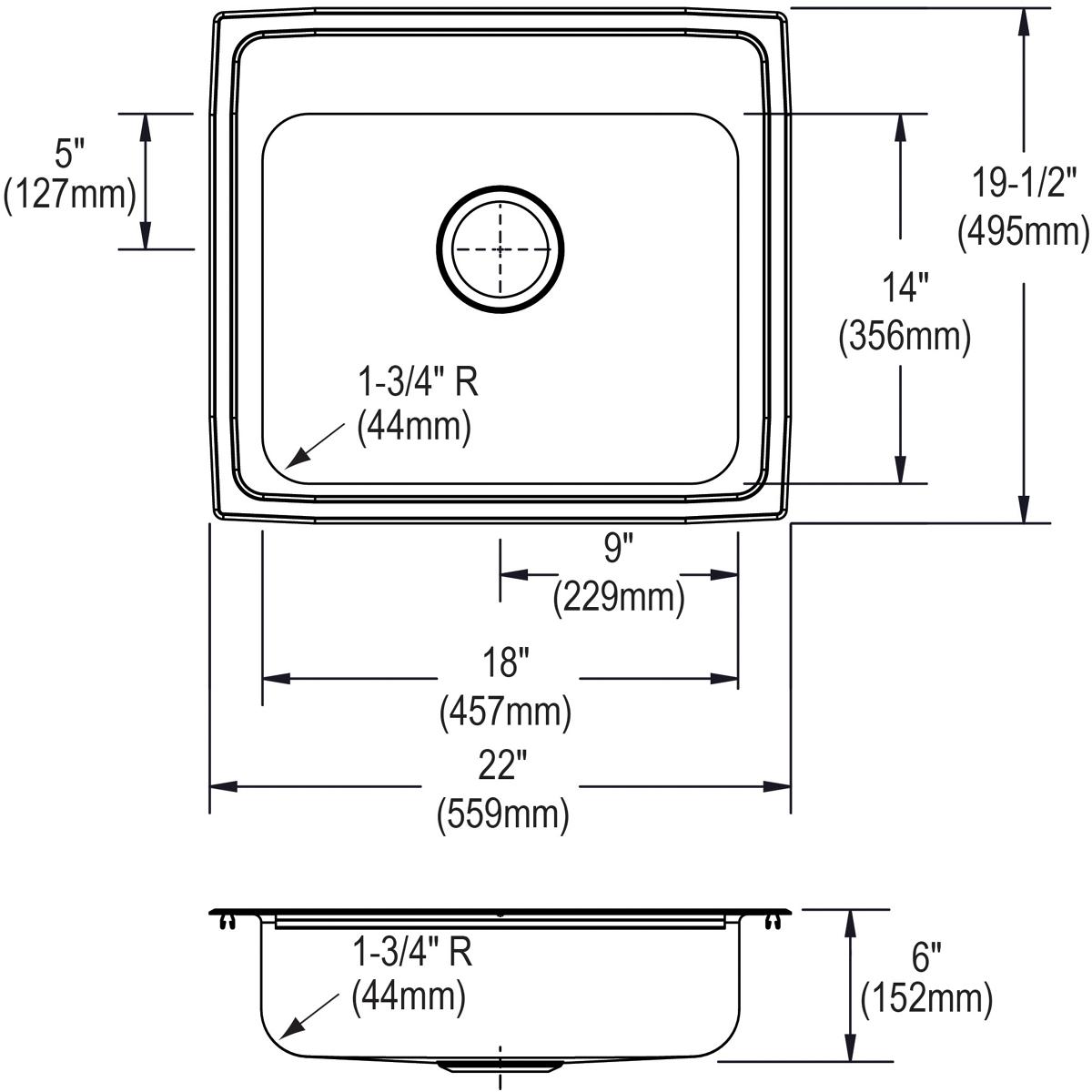

- Countertop Cutout: 21-3/8" x 18-7/8" (543mm x 479mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001255.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | LRADQ221960 | Device Type | Lustertone Classic Stainless Steel 22" x 19-1/2" x 6", Single Bowl Drop-in ADA Sink |
| Body Material | Stainless Steel | Baa | USA |
| Coating | Lustrous Satin | Hole count | 1 |
| Mount type | Drop-In | Overall height in | 6.0 in |
| Overall length in | 22.0 in | Overall width in | 19.5 in |
| Bowl count | 1 | Bowl dimensions | 18" x 14" x 5-7/8" |
| Countertop cutout dim | 21-3/8" x 18-7/8" (543mm x 479mm) with 1-1/2" (38mm) corner radius | Cutout template url | View |
| Drain location | Rear Center | Gauge | 18 |
| Minimum cabinet size in | 27 | Mounting hardware | Included for 3/4" (19mm) countertop |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
| ADA | — |
