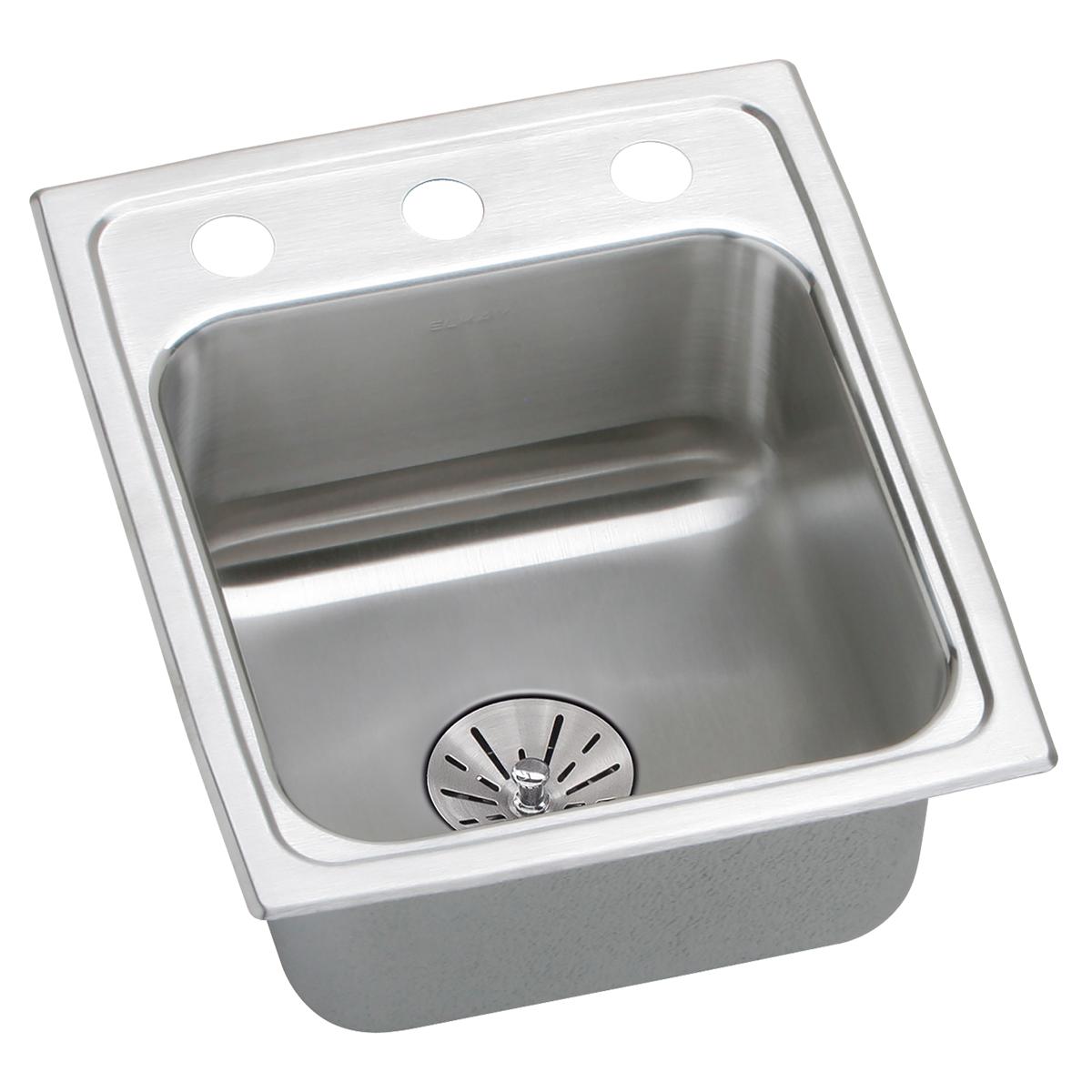

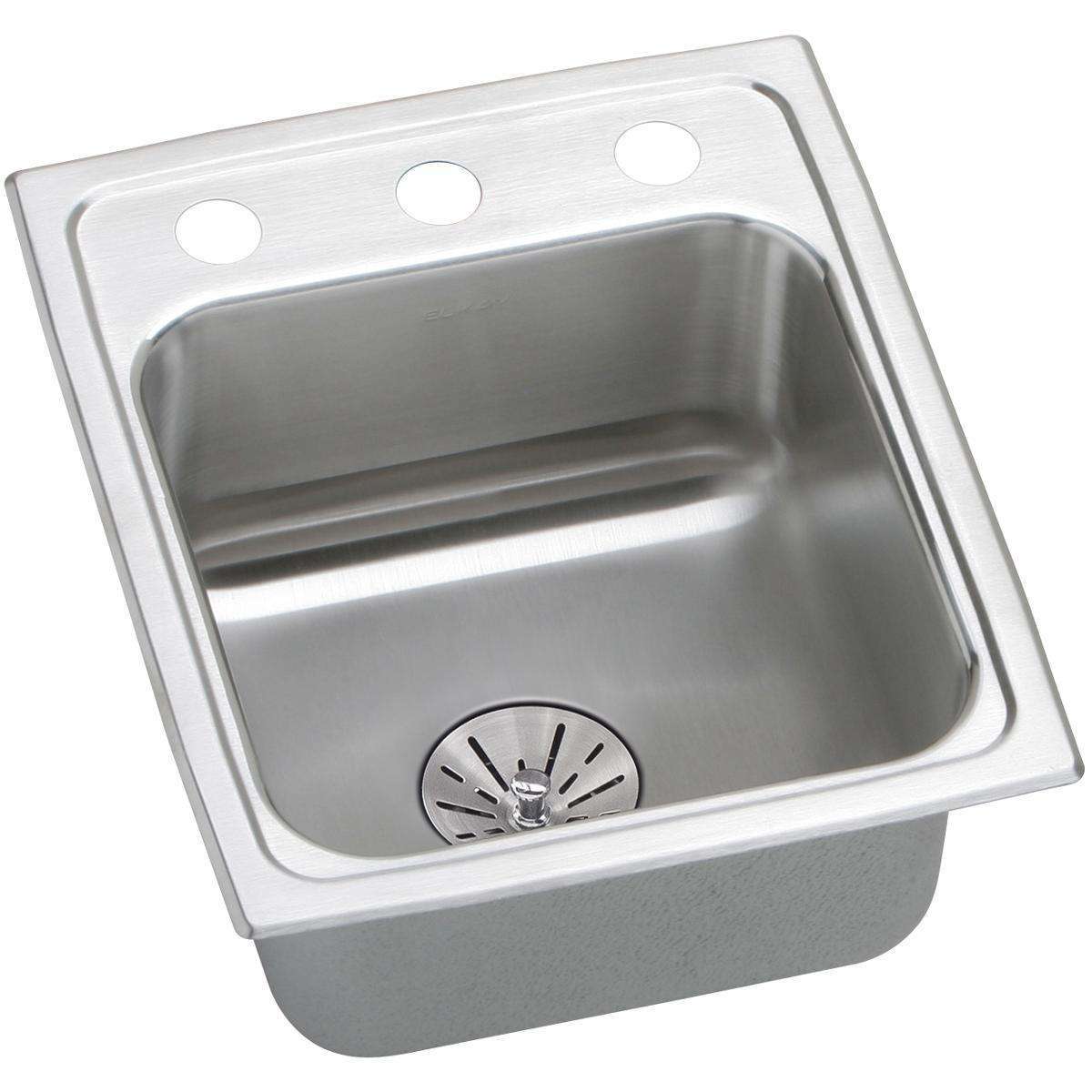

Elkay Lustertone Classic Stainless Steel 15" x 17-1/2" x 6-1/2", Single Bowl Drop-in ADA Sink with Perfect Drain LRADQ151765PD3

The Elkay LRADQ151765PD3 is a Lustertone Classic Stainless Steel 15" x 17-1/2" x 6-1/2", 3-Hole Single Bowl Drop-in ADA Sink with Perfect Drain and Quick-clip. It features a stainless steel body.

An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.

Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
• REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
• DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• SOUND GUARD® TECHNOLOGY: Large pads enhance sound-deadening performance for a quieter time at the sink.
• QUICK-CLIP MOUNTING SYSTEM: Quickly and securely install sink from above the counter with a series of clips that attach to laminate countertops.
• CABINET SIZE: Minimum cabinet size for this sink is 18".
• INCLUDES: One LKPD1 Perfect Drain and strainer.

Common Questions

What size cabinet does this need?

A minimum 18" wide base cabinet.

Undermount or drop-in?

This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.

Is this ADA compliant?

Yes, this model meets ADA accessibility requirements for bowl depth.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: 3.

Specifications

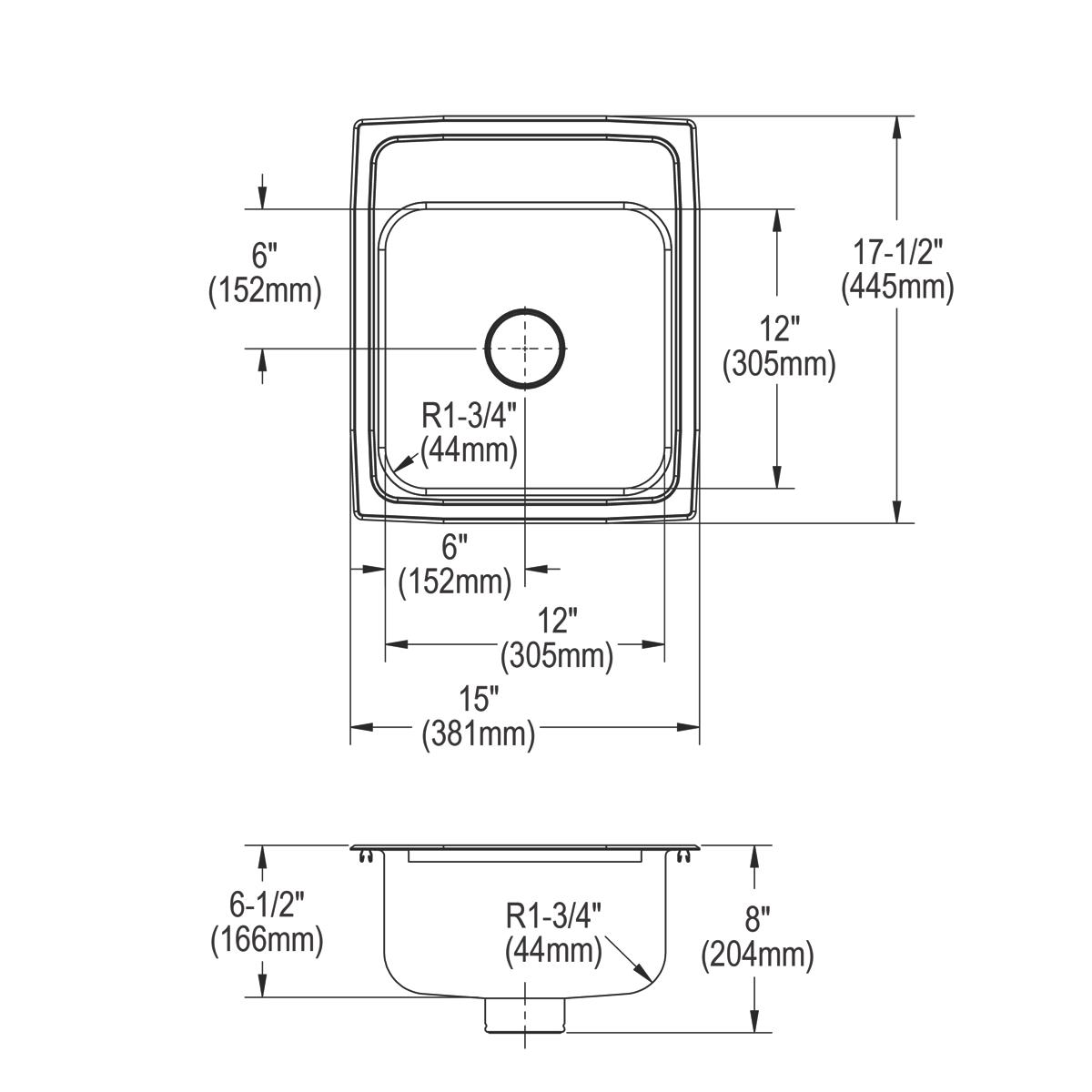

• Type: Lustertone Classic Stainless Steel 15" x 17-1/2" x 6-1/2", 3-Hole Single Bowl Drop-in ADA Sink with Perfect Drain and Quick-clip
• Outlet Size: 3-3/8"
• Body Material: Stainless Steel
• MPN: LRADQ151765PD3
• Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
• Number of Bowls: 1
• Minimum Cabinet Size (in): 18
• Bowl Dimensions: 12" x 12" x 6-3/8"
• Drain Location: Center
• Gauge: 18
• Sound Deadening: Bottom only pads
• Template Included: No
• Mounting Hardware: Included for 3/4" (19mm) countertop
• Drain Style: Flush-Mount Gap-Free
• Mount Type: Drop-In
• Coating / Finish: Lustrous Satin
• Faucet Holes: 3
• Overall Length (in): 15.0
• Overall Width (in): 17.5
• Overall Height (in): 8.0
• Kit Includes: One LKPD1 Perfect Drain and strainer
• Countertop Cutout: 14-3/8" x 16-7/8" (365mm x 429mm) with 1-1/2" (38mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001273.dxf
