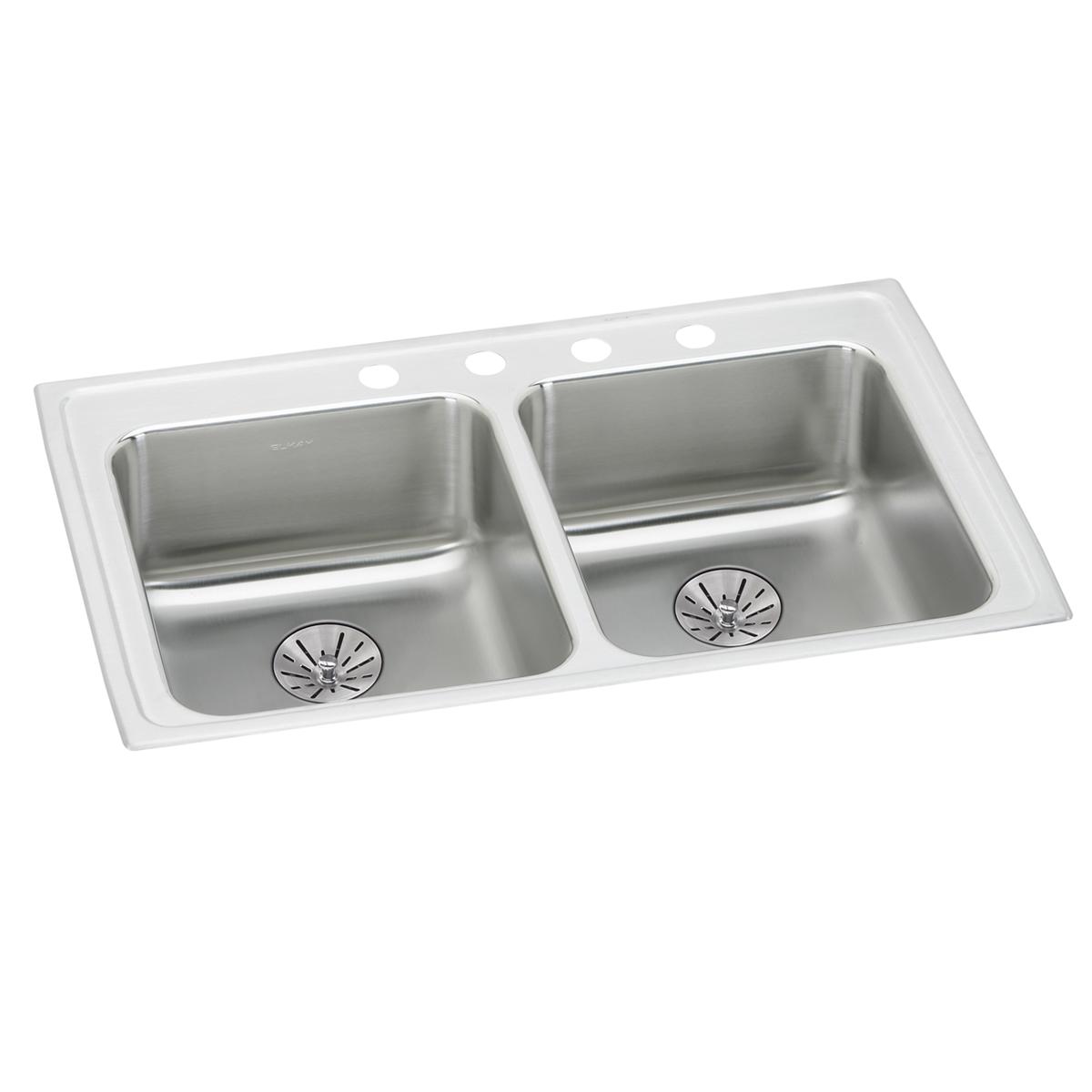

Elkay Lustertone Classic Stainless Steel 33" x 19-1/2" x 6-1/2", 1-Hole Double Bowl Drop-in ADA Sink w/Perfect Drain LRAD331965PD1

The Elkay LRAD331965PD1 is a Lustertone Classic Stainless Steel 33" x 19-1/2" x 6-1/2", 1-Hole Double Bowl Drop-in ADA Sink w/Perfect Drain. It features a stainless steel body.

An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.

Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
• REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
• DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
• SOUND GUARD® TECHNOLOGY: Large pads enhance sound-deadening performance for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• CABINET SIZE: Minimum cabinet size for this sink is 36".
• INCLUDES: Two LKPD1 Perfect Drains and strainers.

Common Questions

What size cabinet does this need?

A minimum 36" wide base cabinet.

Undermount or drop-in?

This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.

Is this ADA compliant?

Yes, this model meets ADA accessibility requirements for bowl depth.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: 1.

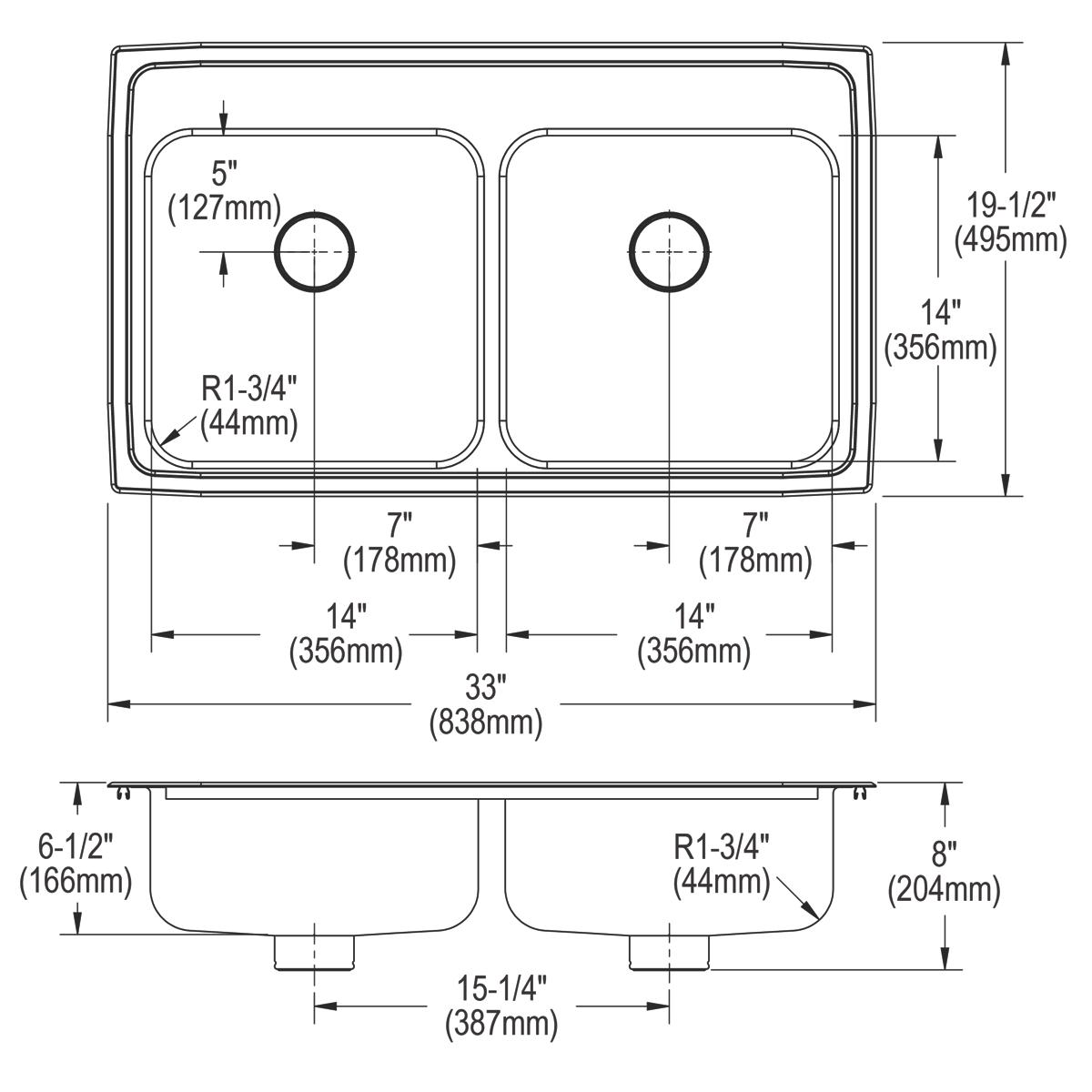

Specifications

• Type: Lustertone Classic Stainless Steel 33" x 19-1/2" x 6-1/2", 1-Hole Double Bowl Drop-in ADA Sink w/Perfect Drain
• Outlet Size: 3-3/8"
• Body Material: Stainless Steel
• MPN: LRAD331965PD1
• Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
• Number of Bowls: 2
• Bowl Configuration: Equal Double
• Minimum Cabinet Size (in): 36
• Bowl Dimensions: 14" x 14" x 6-3/8";14" x 14" x 6-3/8"
• Drain Size, Bowl 2 (in): 3.375
• Drain Location: Rear Center
• Gauge: 18
• Sound Deadening: Bottom only pads
• Template Included: No
• Mounting Hardware: Part # 64090014 included for countertops up to 3/4" (19mm) thick
• Drain Style: Flush-Mount Gap-Free
• Mount Type: Drop-In
• Coating / Finish: Lustrous Satin
• Faucet Holes: 1
• Overall Length (in): 33.0
• Overall Width (in): 19.5
• Overall Height (in): 8.0
• Kit Includes: Two LKPD1 Perfect Drains and strainers.
• Countertop Cutout: 32-3/8" x 18-7/8" (822mm x 479mm) with 1-1/2" (38mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001276.dxf
