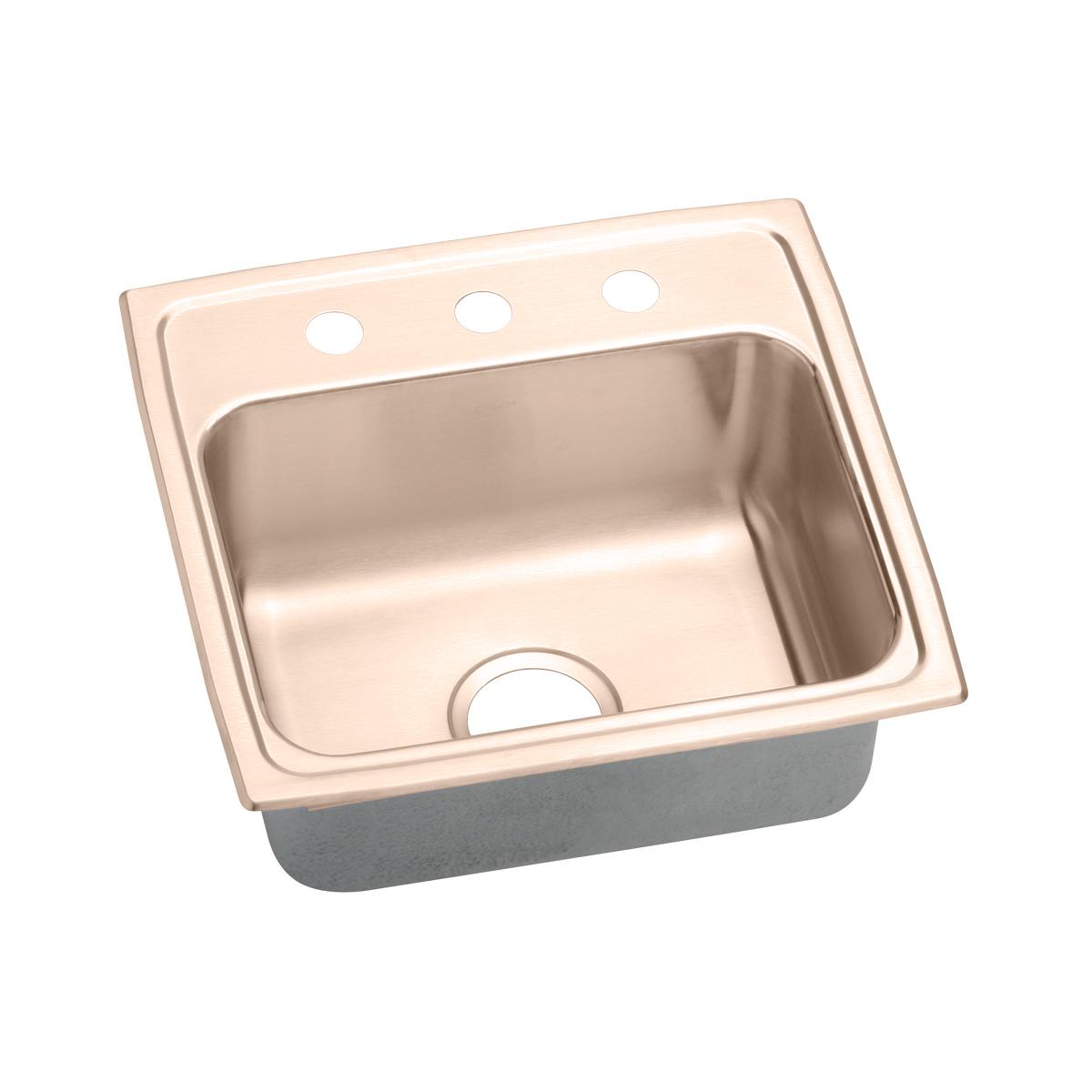

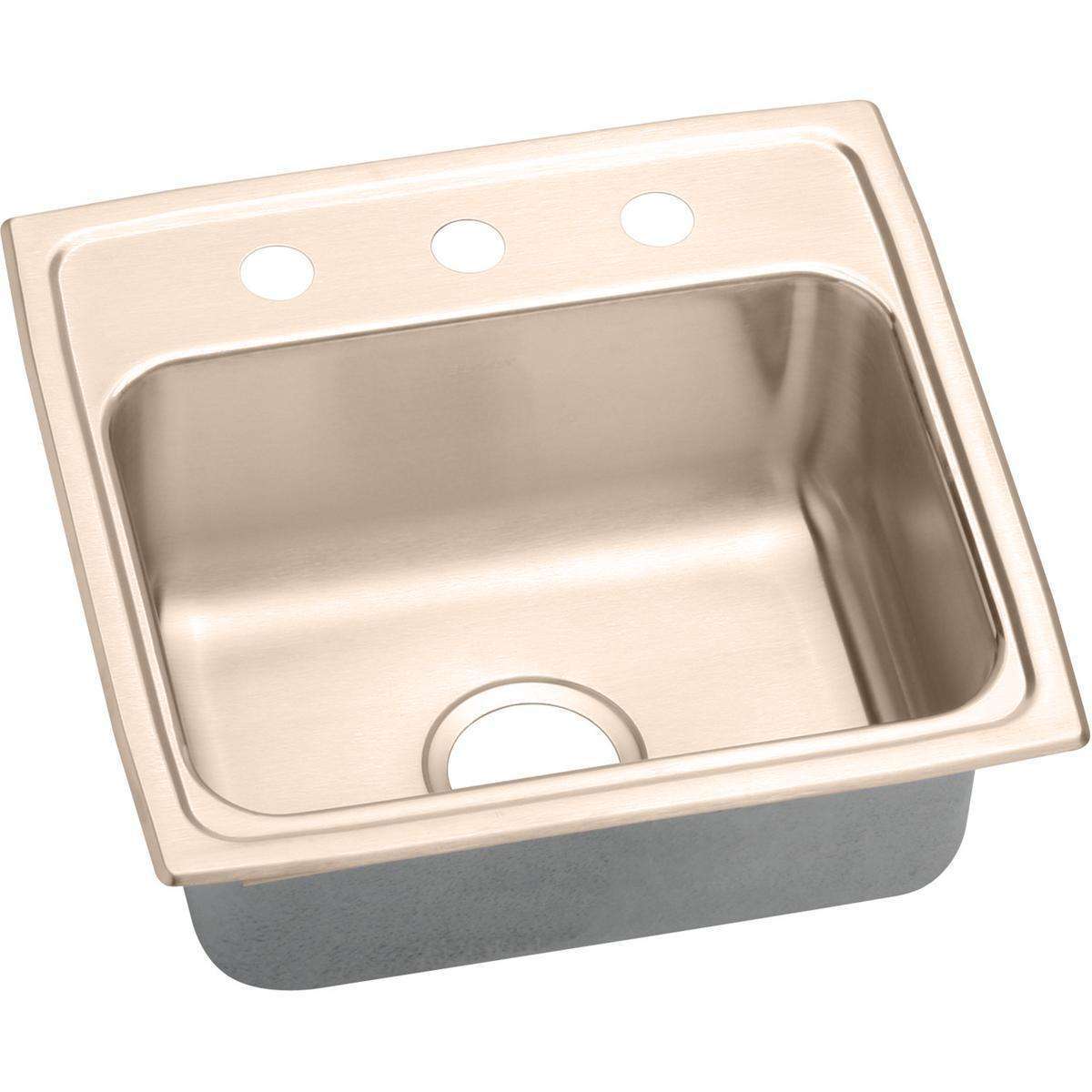

The Elkay LR19193-CU is a CuVerro Antimicrobial Copper 19-1/2" x 19" x 7-1/2", 3-Hole Single Bowl Drop-in Sink. It features a cuverro antimicrobial copper body.
Founded in 1920, Elkay offers high-quality plumbing products for home and commercial applications. From kitchen sinks and faucets to bottle filling stations, our products are right where you are, right when you need us. We are powered by practical ingenuity, combining the style you want with the function you need. Elkay is proud to be America's No. 1 selling kitchen sink company.
Features
- ANTIMICROBIAL COPPER: Registered by the U.S. Environmental Protection Agency to continuously kill more than 99.9% of bacteria within two hours.
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 24".
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- ABOUT ELKAY: Elkay has been family-owned and -operated since 1920. We offer high-quality plumbing products to make your daily routines easier.
Common Questions
- What size cabinet does this need?
- A minimum 24" wide base cabinet.
- Undermount or drop-in?
- This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 3.
Specifications
- Type: CuVerro Antimicrobial Copper 19-1/2" x 19" x 7-1/2", 3-Hole Single Bowl Drop-in Sink
- Outlet Size: 3-1/2"
- Body Material: CuVerro Antimicrobial Copper
- Country of Origin: United States
- MPN: LR19193-CU
- Certifications: IAPMO, CSA B45.12/IAPMO Z402
- Number of Bowls: 1
- Minimum Cabinet Size (in): 24
- Bowl Dimensions: 16" x 13-1/2" x 7-3/8"
- Drain Location: Center
- Gauge: 18
- Sound Deadening: Bottom only pads
- Template Included: No
- Mounting Hardware: Part # 64090012 included for countertops up to 3/4" (19mm) thick
- Mount Type: Drop-In
- Coating / Finish: Lustrous Satin
- Faucet Holes: 3
- Overall Length (in): 19.5
- Overall Width (in): 19.0
- Overall Height (in): 7.5

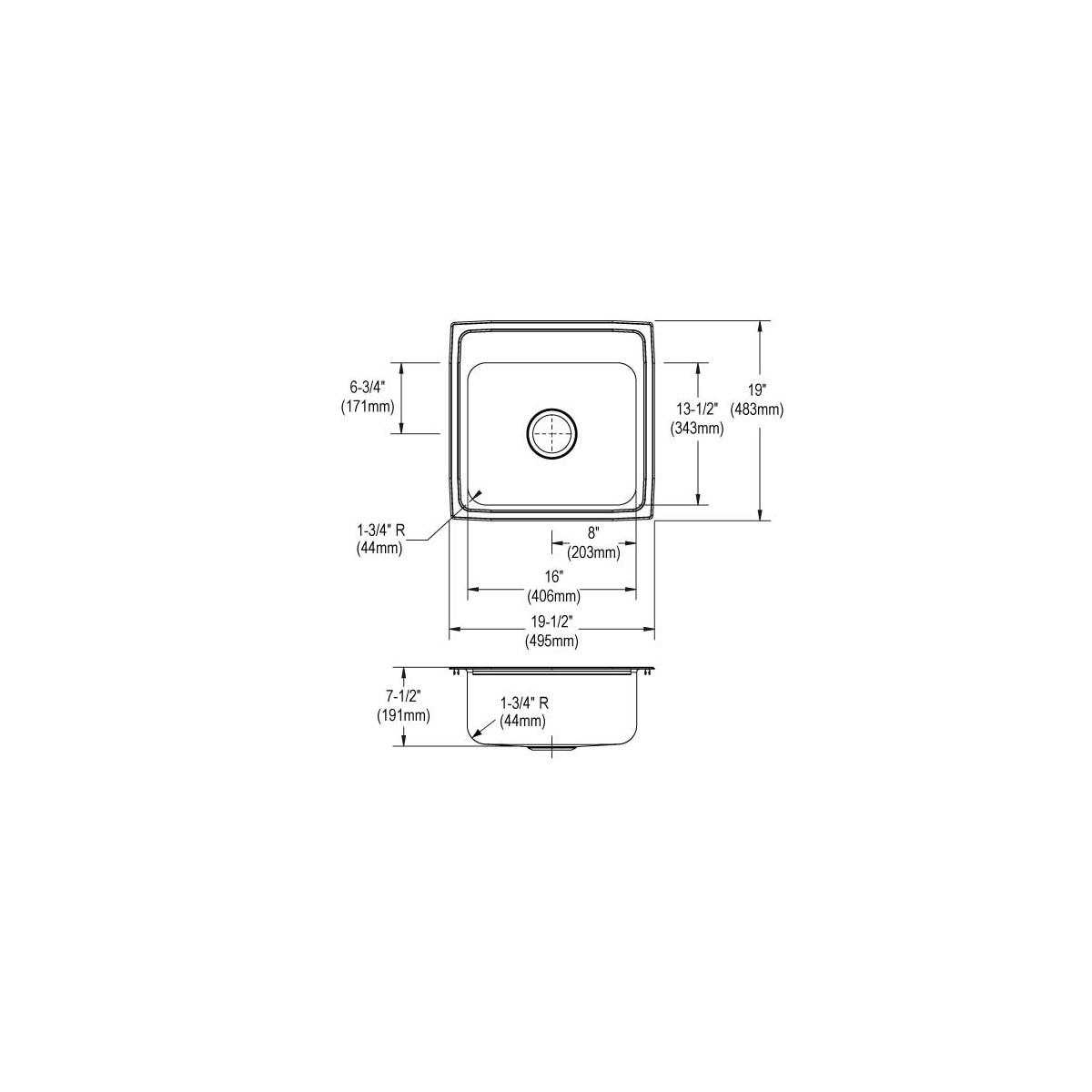

- Countertop Cutout: 18-7/8" x 18-3/8" (479mm x 467mm) with 1-1/2" (38mm) corner radius
- Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001259.dxf
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | LR1919-CU | Device Type | CuVerro Antimicrobial Copper 19-1/2" x 19" x 7-1/2", 3-Hole Single Bowl Drop-in Sink |
| Body Material | CuVerro Antimicrobial Copper | Baa | USA |
| Coating | Lustrous Satin | Hole count | 3 |
| Mount type | Drop-In | Overall height in | 7.5 in |
| Overall length in | 19.5 in | Overall width in | 19.0 in |
| Bowl count | 1 | Bowl dimensions | 16" x 13-1/2" x 7-3/8" |
| Countertop cutout dim | 18-7/8" x 18-3/8" (479mm x 467mm) with 1-1/2" (38mm) corner radius | Cutout template url | View |
| Drain location | Center | Gauge | 18 |
| Minimum cabinet size in | 24 | Mounting hardware | Part # 64090012 included for countertops up to 3/4" (19mm) thick |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| IAPMO | CSA B45.12/IAPMO Z402 |
Compare with similar products
| Series | LR1919-CU
| LRAD131665-CU
| DLR172210-CU
|
| Country Of Origin | United States
| United States
| United States
|
| Spec Sheet | |||
| Install Sheet | |||
| Device Type | CuVerro Antimicrobial Copper 19-1/2" x 19" x 7-1/2", 3-Hole Single Bowl Drop-in Sink
| CuVerro Antimicrobial Copper 13" x 16" x 6-1/2", 1-Hole Single Bowl Drop-in ADA Sink
| CuVerro Antimicrobial Copper 17" x 22" x 10-1/8", 2-Hole Single Bowl Drop-in Sink
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | CuVerro Antimicrobial Copper
| CuVerro Antimicrobial Copper
| CuVerro Antimicrobial Copper
|
| Certifications | IAPMO, CSA B45.12/IAPMO Z402
| IAPMO, CSA B45.12/IAPMO Z402, ADA
| IAPMO, CSA B45.12/IAPMO Z402
|
