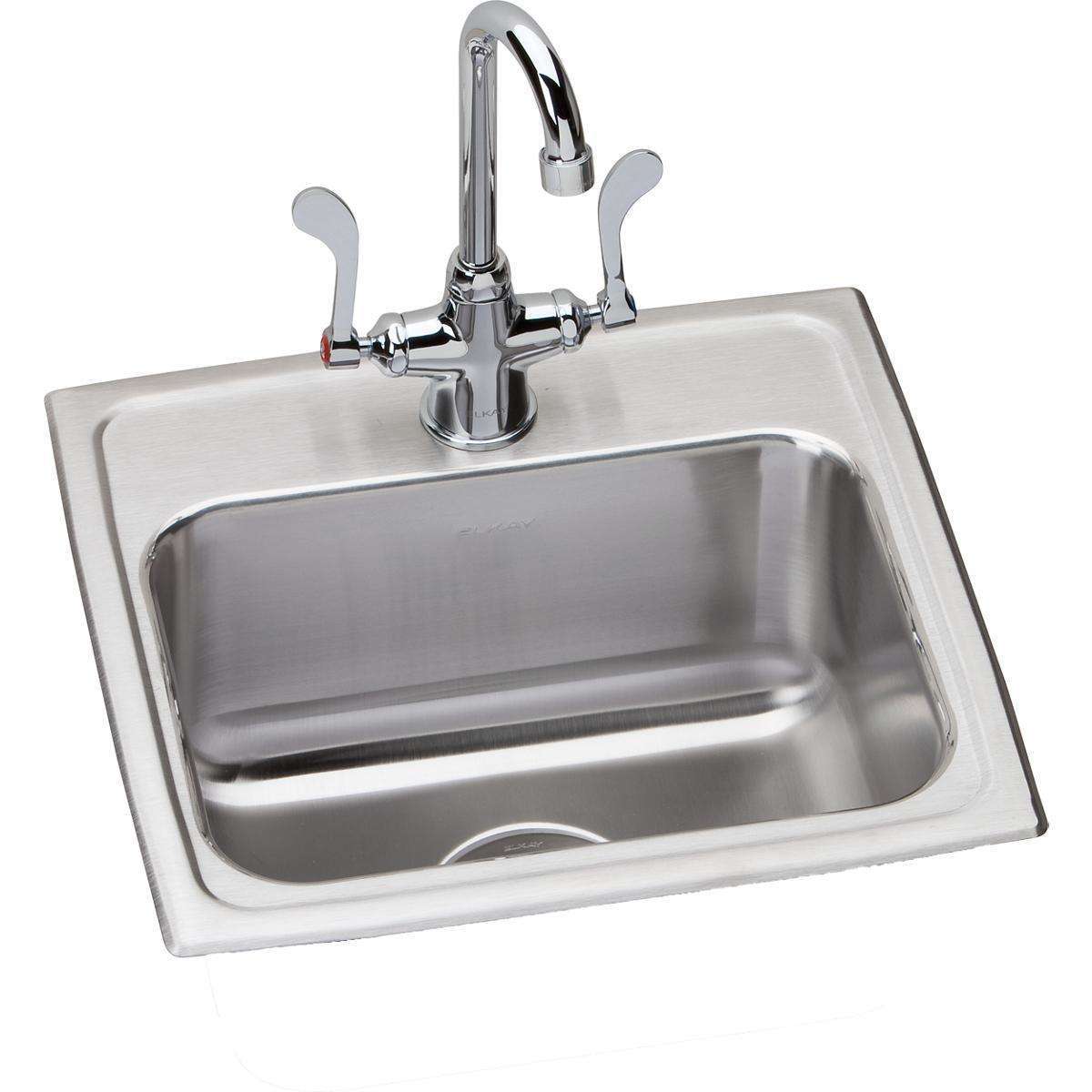

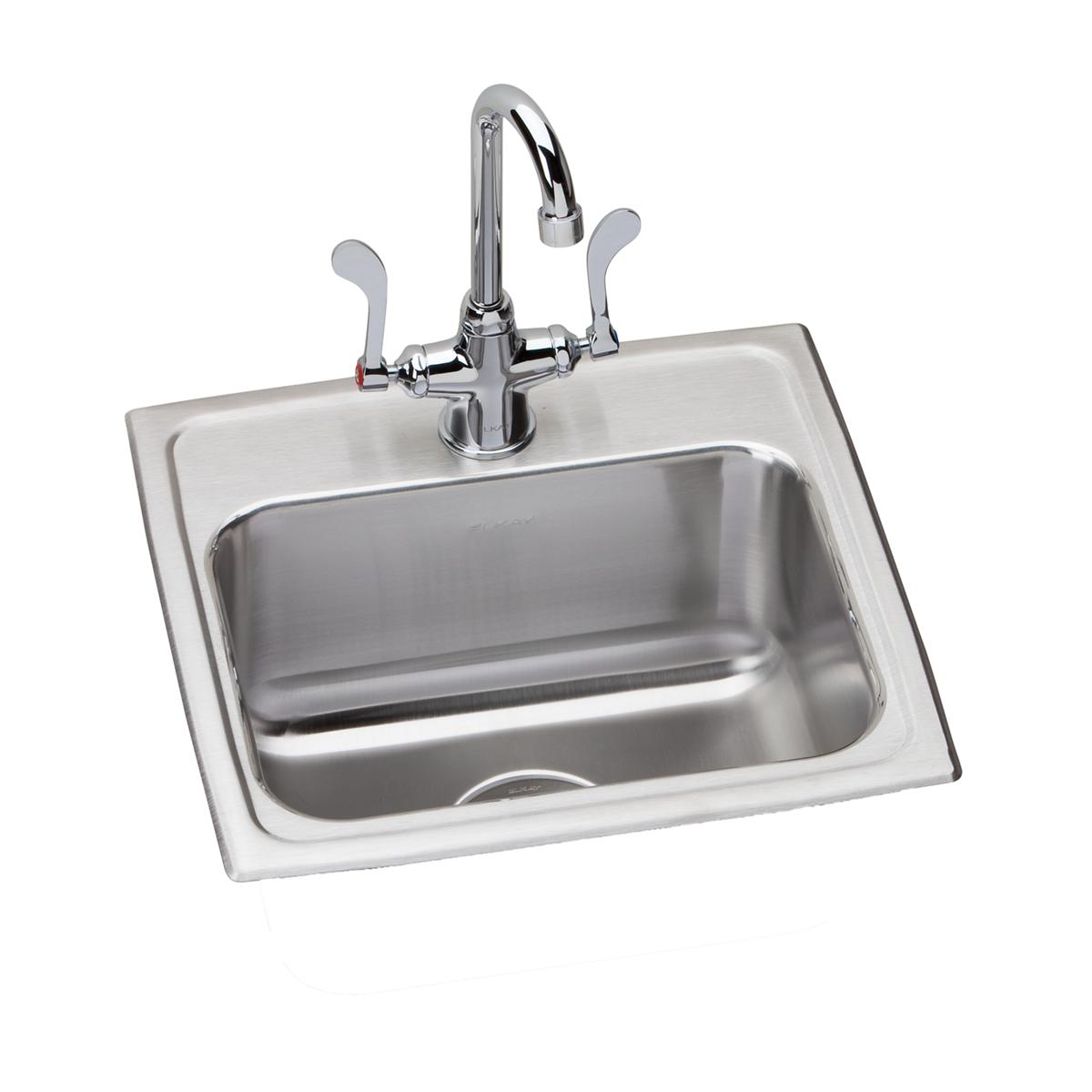

Elkay Lustertone Classic Stainless Steel 17" x 16" x 7-5/8", 1-Hole Single Bowl Drop-in Sink + Faucet Kit LR1716SC

The Elkay LR1716SC is a Lustertone Classic Stainless Steel 17" x 16" x 7-5/8", 1-Hole Single Bowl Drop-in Sink + Faucet Kit. It features a stainless steel body.

An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.

Features

• REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
• DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
• DRAIN OPENING: Sink drain opening measures 3-1/2".
• CABINET SIZE: Minimum cabinet size for this sink is 21".
• KIT INCLUDES: LR17161 sink, LK500GN04T4SC faucet, LK500 drain; conveniently packaged together to save you time.

Common Questions

What size cabinet does this need?

A minimum 21" wide base cabinet.

Undermount or drop-in?

This is a drop-in (top-mount) sink -- it rests on top of the counter through a cutout, with the rim visible, and needs no fabricator.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: 1.

What is included in the kit?

This kit includes: LK500GN04T4SC faucet, LK18B drain, LK500 P-trap..

Specifications

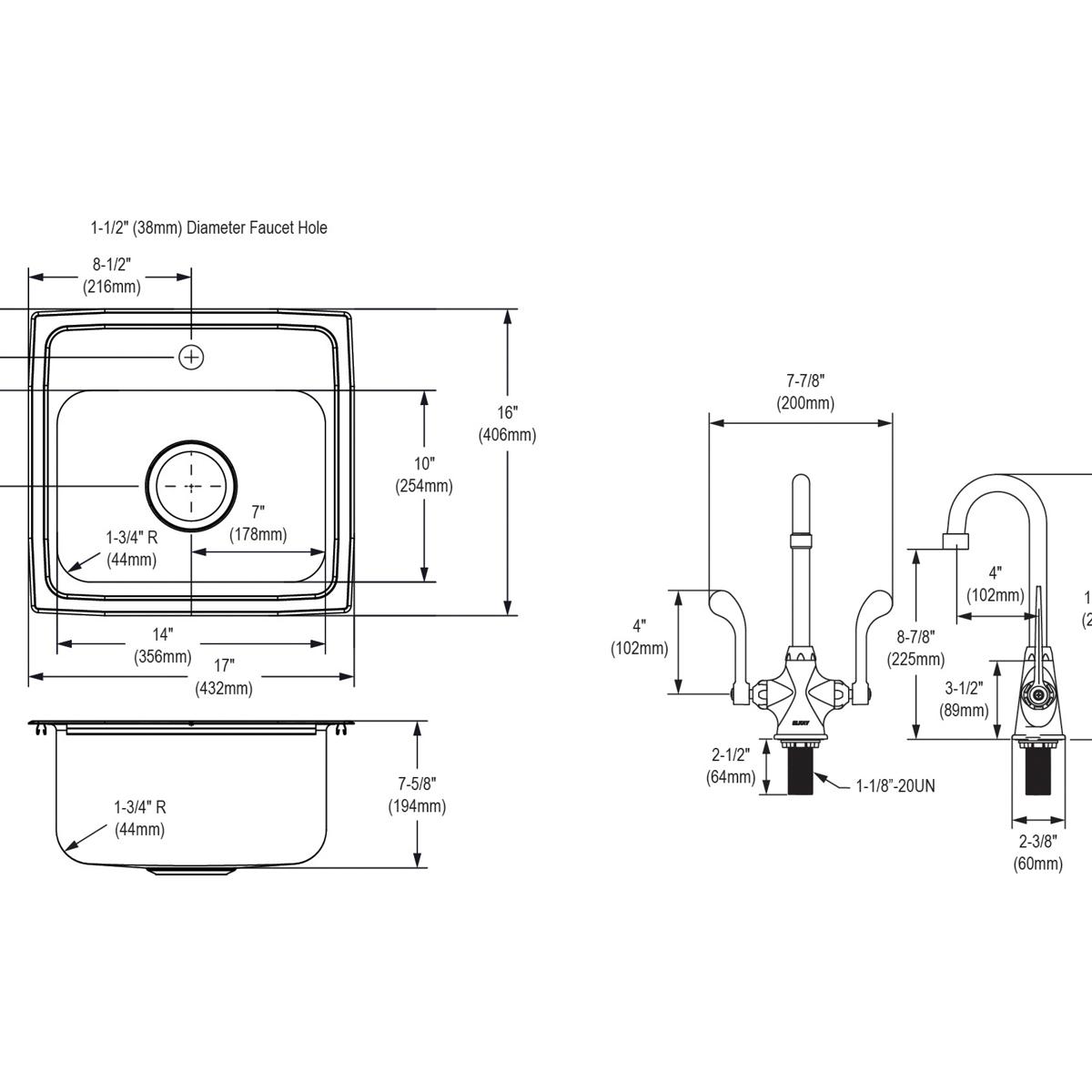

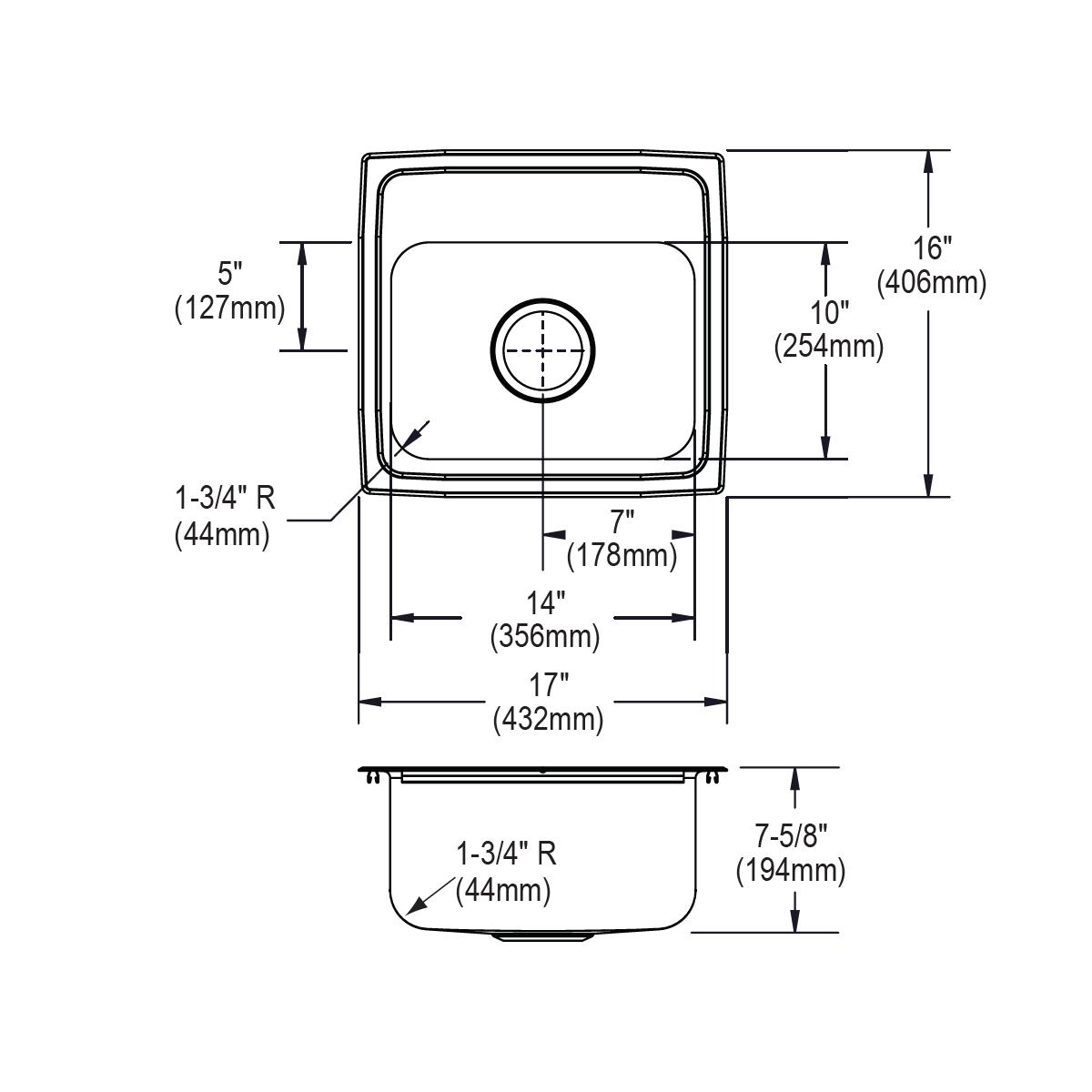

• Type: Lustertone Classic Stainless Steel 17" x 16" x 7-5/8", 1-Hole Single Bowl Drop-in Sink + Faucet Kit
• Outlet Size: 3-1/2"
• Body Material: Stainless Steel
• MPN: LR1716SC
• Certifications: ASME A112.19.3/CSA B45.4
• Number of Bowls: 1
• Minimum Cabinet Size (in): 21
• Bowl Dimensions: 14" x 10" x 7-1/2"
• Drain Location: Center
• Gauge: 18
• Sound Deadening: Sides and Bottom pads
• Template Included: No
• Mounting Hardware: Part # 64090010 included for countertops up to 3/4" (19mm) thick
• Mount Type: Drop-In
• Coating / Finish: Lustrous Satin
• Faucet Holes: 1
• Overall Length (in): 17.0
• Overall Width (in): 16.0
• Overall Height (in): 7.625
• Kit Includes: LK500GN04T4SC faucet, LK18B drain, LK500 P-trap.
• Countertop Cutout: 16-3/8" x 15-3/8" (416mm x 391mm) with 1-1/2" (38mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001269.dxf
