Elkay Lustertone Classic Stainless Steel 33" x 22" x 9", 1-Hole 60/40 Double Bowl Dual Mount Sink with Perfect Drain LKHSR2509RPD1

The Elkay LKHSR2509RPD1 is a Lustertone Classic Stainless Steel 33" x 22" x 9", 1-Hole 60/40 Double Bowl Dual Mount Sink with Perfect Drain. It features a stainless steel body.

An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.

Features

• PERFECT DRAIN: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain.
• REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
• SLIM RIM: Install sink as a drop-in or undermount; ultra thin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
• CABINET SIZE: Minimum cabinet size for this sink is 36".
• INCLUDES: Two LKPD1 Perfect Drains and strainers.

Common Questions

What size cabinet does this need?

A minimum 36" wide base cabinet.

What does 18-gauge mean?

18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has sides and bottom pads for added quiet.

Will my faucet fit?

Check your existing hole pattern against this sink's drilling: 1.

What is included in the kit?

This kit includes: Two LKPD1 Perfect Drains and strainers..

Specifications

• Type: Lustertone Classic Stainless Steel 33" x 22" x 9", 1-Hole 60/40 Double Bowl Dual Mount Sink with Perfect Drain
• Outlet Size: 3-3/8"
• Body Material: Stainless Steel
• MPN: LKHSR2509RPD1
• Certifications: ASME A112.19.3/CSA B45.4, IAPMO
• Number of Bowls: 2
• Bowl Configuration: Offset 60/40
• Minimum Cabinet Size (in): 36

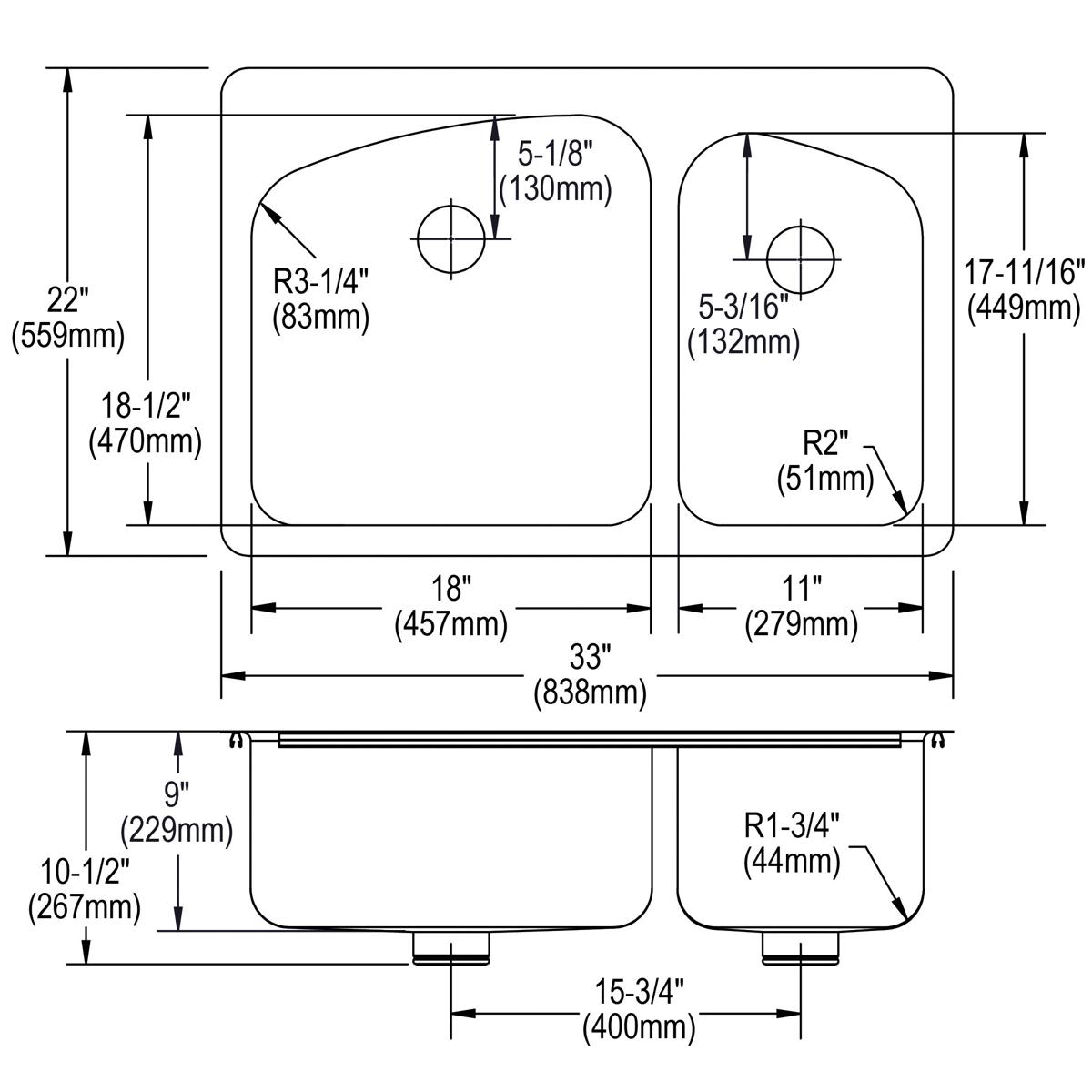

• Bowl Dimensions: 18" x 18-1/2" x 9";11" x 17-11/16" x 9"
• Drain Size, Bowl 2 (in): 3.375
• Drain Location: Rear Center
• Gauge: 18
• Sound Deadening: Sides and Bottom pads
• Template Included: No
• Mounting Hardware: Part # 64090022 included for drop-in installation for countertops up to 3/4" (19mm) thick.
• Drain Style: Flush-Mount Gap-Free
• Mount Type: Dual-Mount
• Coating / Finish: Lustrous Satin
• Faucet Holes: 1
• Overall Length (in): 33.0
• Overall Width (in): 22.0
• Overall Height (in): 10.5
• Kit Includes: Two LKPD1 Perfect Drains and strainers.
• Countertop Cutout: 32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000000358.dxf
