Similar products
Specifications
Description

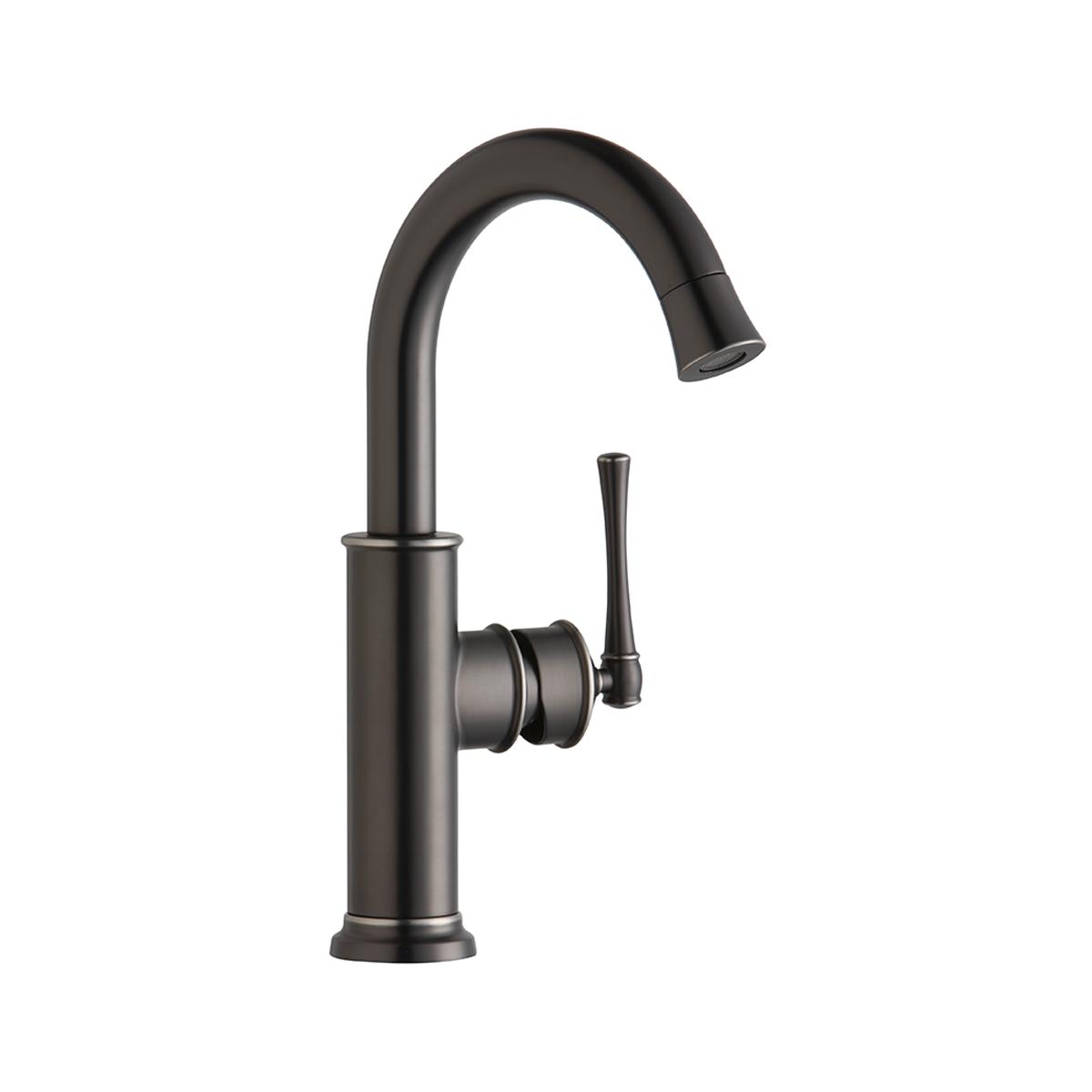

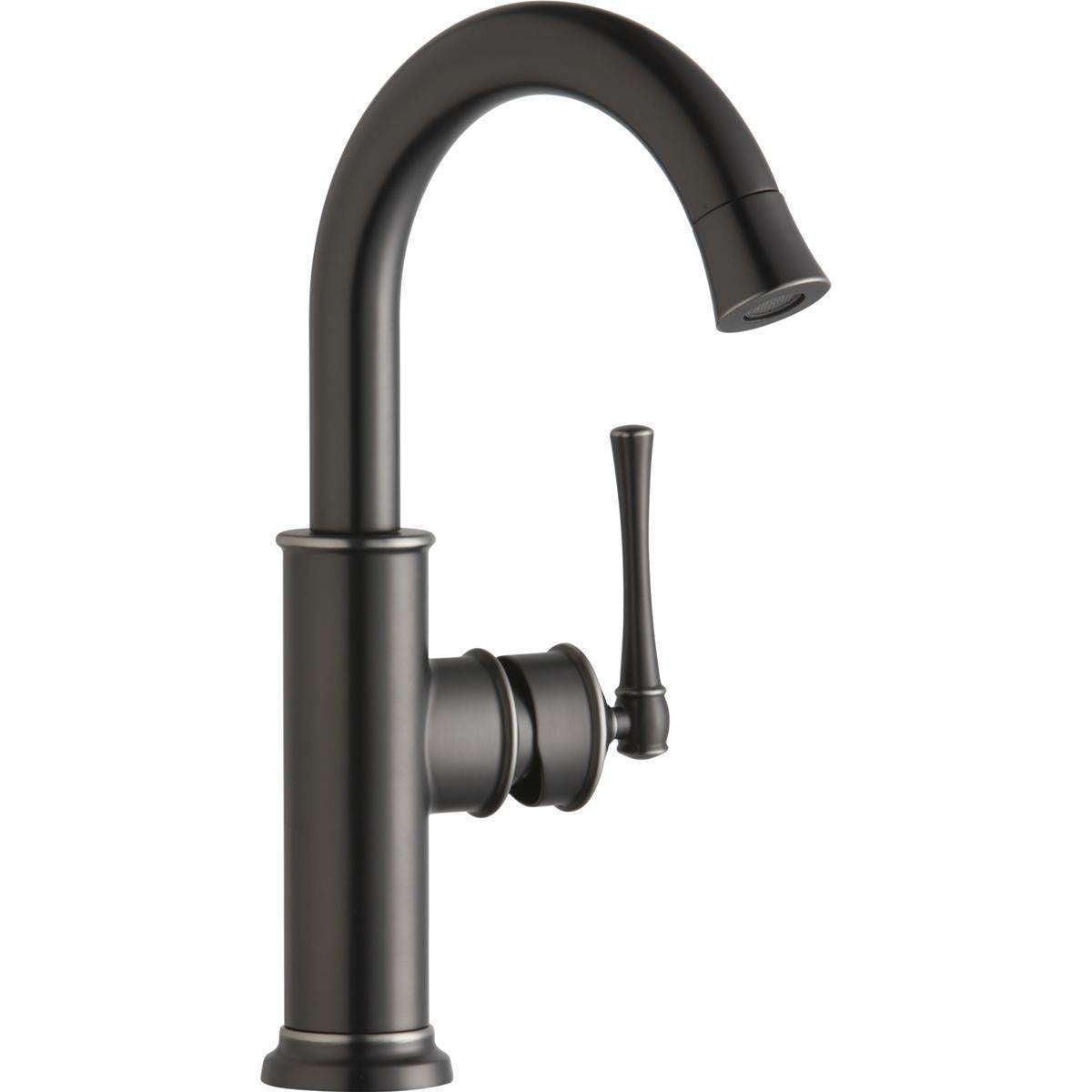

The Elkay LKEC2012AS is a lead-free bar/prep faucet with a arc tube spout. It delivers 1.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Like the American spirit, the Explore kitchen faucet collection by Elkay was founded on classic ideals transformed by individual interpretation. Select from convenient features like pull-down and pull-out sprays. Available in a variety of finishes to complement your decor such as Chrome, Lustrous Steel and Antique Steel.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS WATERWAYS: Built for long-term durability.
- INCLUDES TWO AERATORS: Comes installed with 1.5 GPM water-saving aerator; optional 2.2 GPM aerator insert included.
- REMOVABLE CARTRIDGE: Allows for easy repair and replacement of cartridge.
- FORWARD-ONLY HANDLE(S): Handle(s) rotates forward only so there is no interference with the backsplash.
- 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.
- 2.5" MAX THICKNESS: Faucet can be installed in countertops up to 2.5" thick.
Common Questions
- Is this faucet ADA compliant?
- Yes, it meets ADA / ANSI ICC A117.1 accessibility requirements.
- Will this fit my existing sink holes?
- This faucet requires 1 deck hole.
Specifications
- Type: Explore Single Hole Bar Faucet with Forward Only Lever Handle Antique Steel
- Inlet Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Country of Origin: China
- MPN: LKEC2012AS
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: Single-Hole
- Spout Type: Arc Tube
- Deck Clearance (in): 10.125
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Antique Steel
- Flow Rate (GPM): 1.5
- Faucet Holes: 1

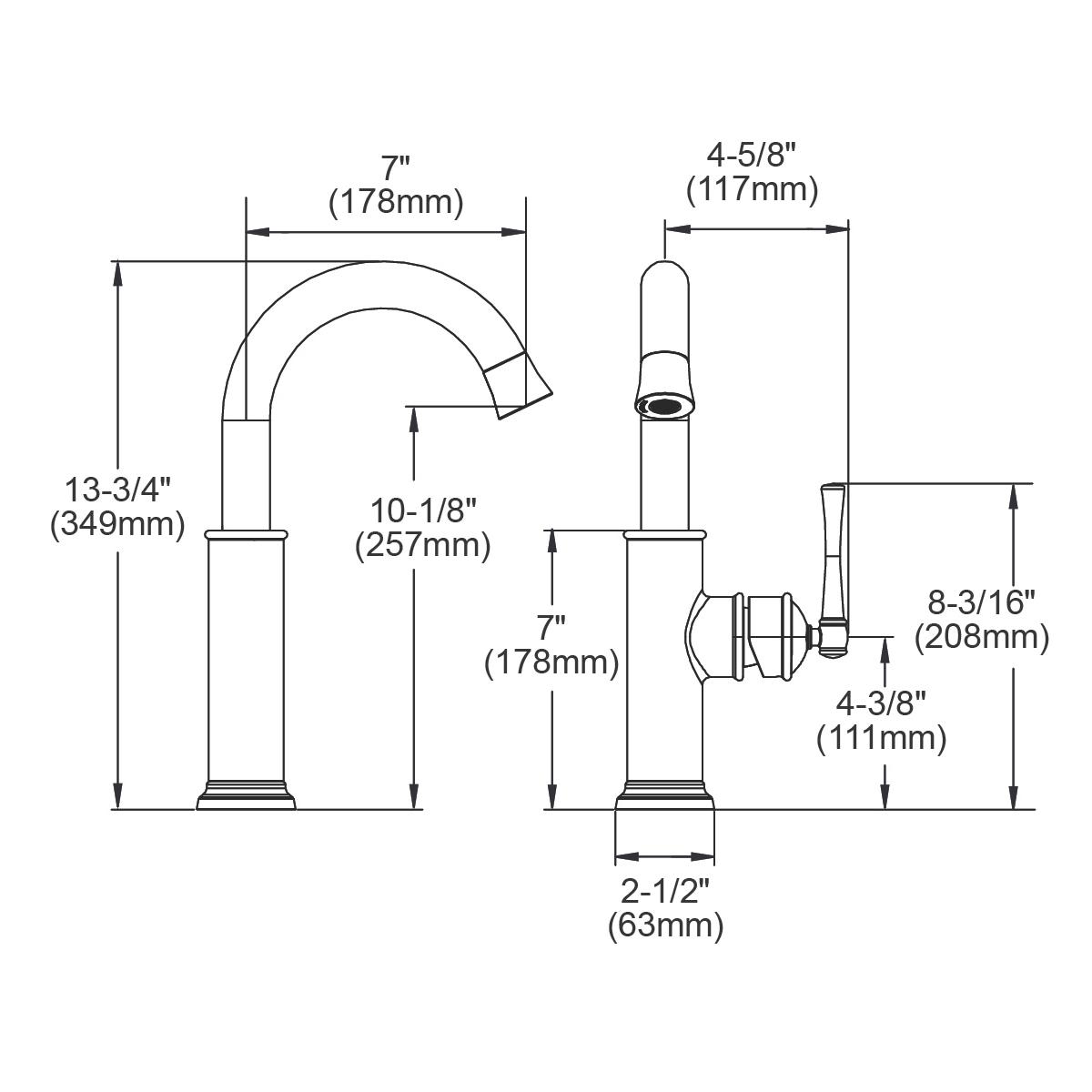

- Overall Length (in): 9.0
- Overall Width (in): 2.5
- Overall Height (in): 16.5
- Spout Reach (in): 7.0
- Spout Height (in): 13.75
- Handles: 1
Product Information
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
Details
| Series | LKEC2012 | Device Type | Explore Single Hole Bar Faucet with Forward Only Lever Handle Antique Steel |
| Lead Free | Yes | Body Material | Brass |
| Coating | Antique Steel | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Hole count | 1 |
| Mount type | Deck-Mount | Overall height in | 16.5 in |
| Overall length in | 9.0 in | Overall width in | 2.5 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | Single-Hole |
| Deck clearance in | 10.125 | Handle count | 1 |
| Spout height in | 13.75 | Spout reach in | 7.0 |
| Spout type | Arc Tube | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
Compare with similar products
| Series | LKEC2012
| LK2477CR
| LKAV3032
| LKAV3032
| LKAV3032
| LKAV3032
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Explore Single Hole Bar Faucet with Forward Only Lever Handle Antique Steel
| Everyday Bar Deck Mount Faucet and Lever Handles Chrome
| Avado Single Hole Bar Faucet with Pull-down Spray and Lever Handle Matte Black
| Avado Single Hole Bar Faucet with Pull-down Spray and Lever Handle Lustrous Steel
| Avado Single Hole Bar Faucet with Pull-down Spray and Lever Handle Chrome
| Avado Single Hole Bar Faucet with Pull-down Spray and Lever Handle Black Stainless
|
| Inlet Size | 1/2"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| Compression
| Compression
| Compression
| Compression
| Compression
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
|
