Description

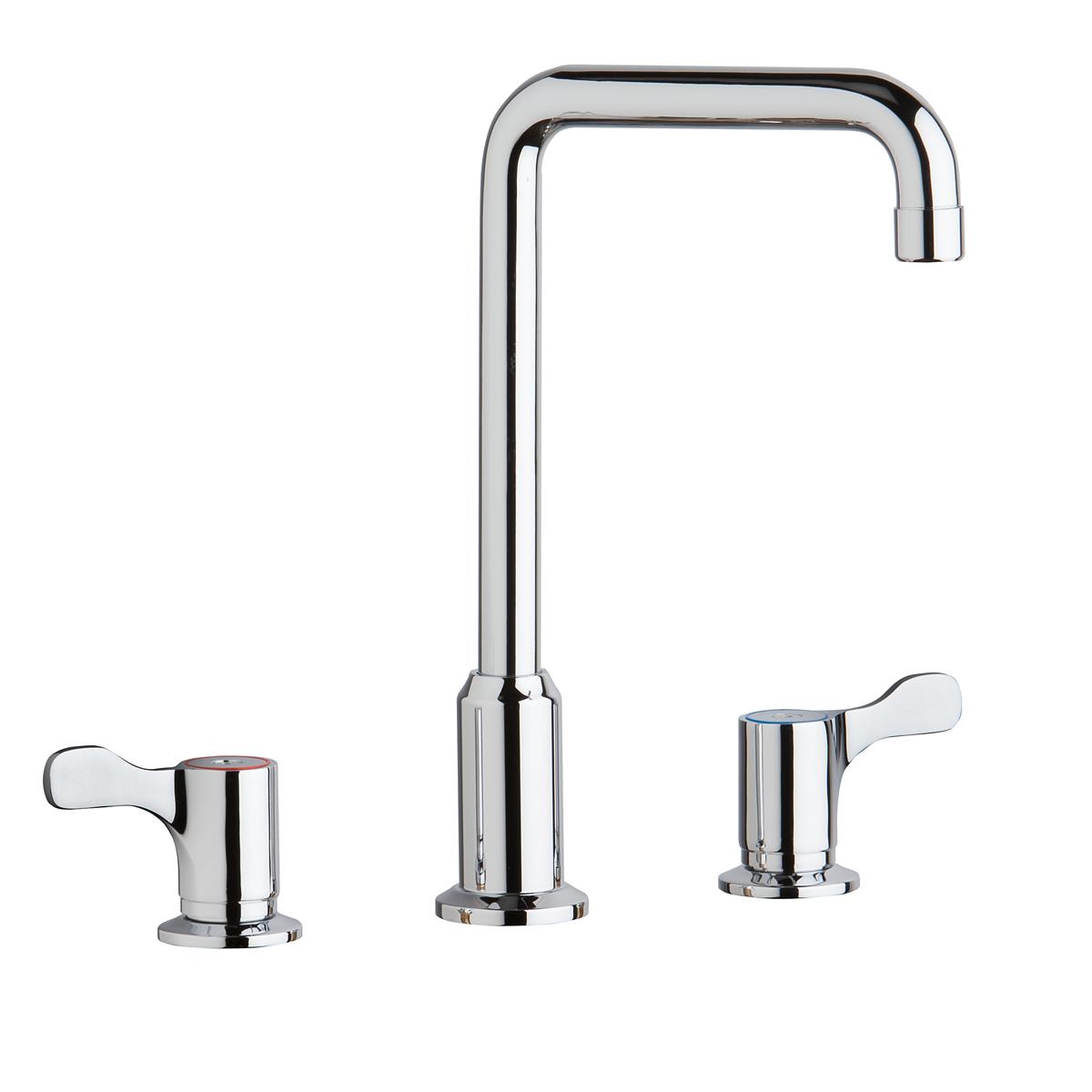

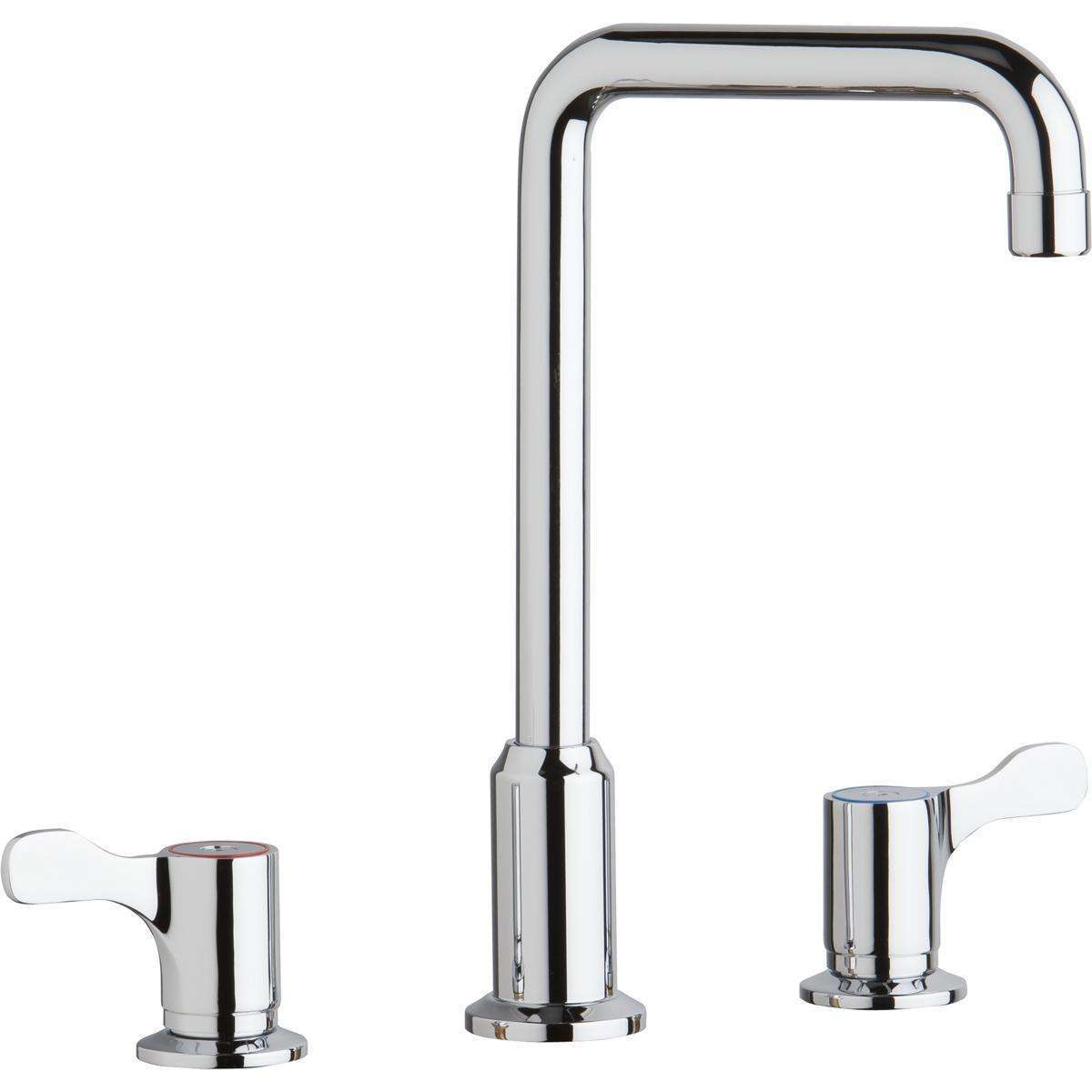

The Elkay LKDA2437C is a lead-free 8" centerset concealed deck mount faucet with arc tube spout and 2-5/8" lever handles chrome. It delivers 1.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- REMOVABLE CARTRIDGE: Allows for easy repair and replacement of cartridge.
- FULLY ROTATING SPOUT: Spout rotates a full 360 degrees; perfect for use in kitchen islands and bar/prep sinks.
- 3 FAUCET HOLES: Faucet designed to be installed using three faucet holes.
- 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread.
Common Questions
- What is the flow rate?
- 1.5 GPM as shipped.

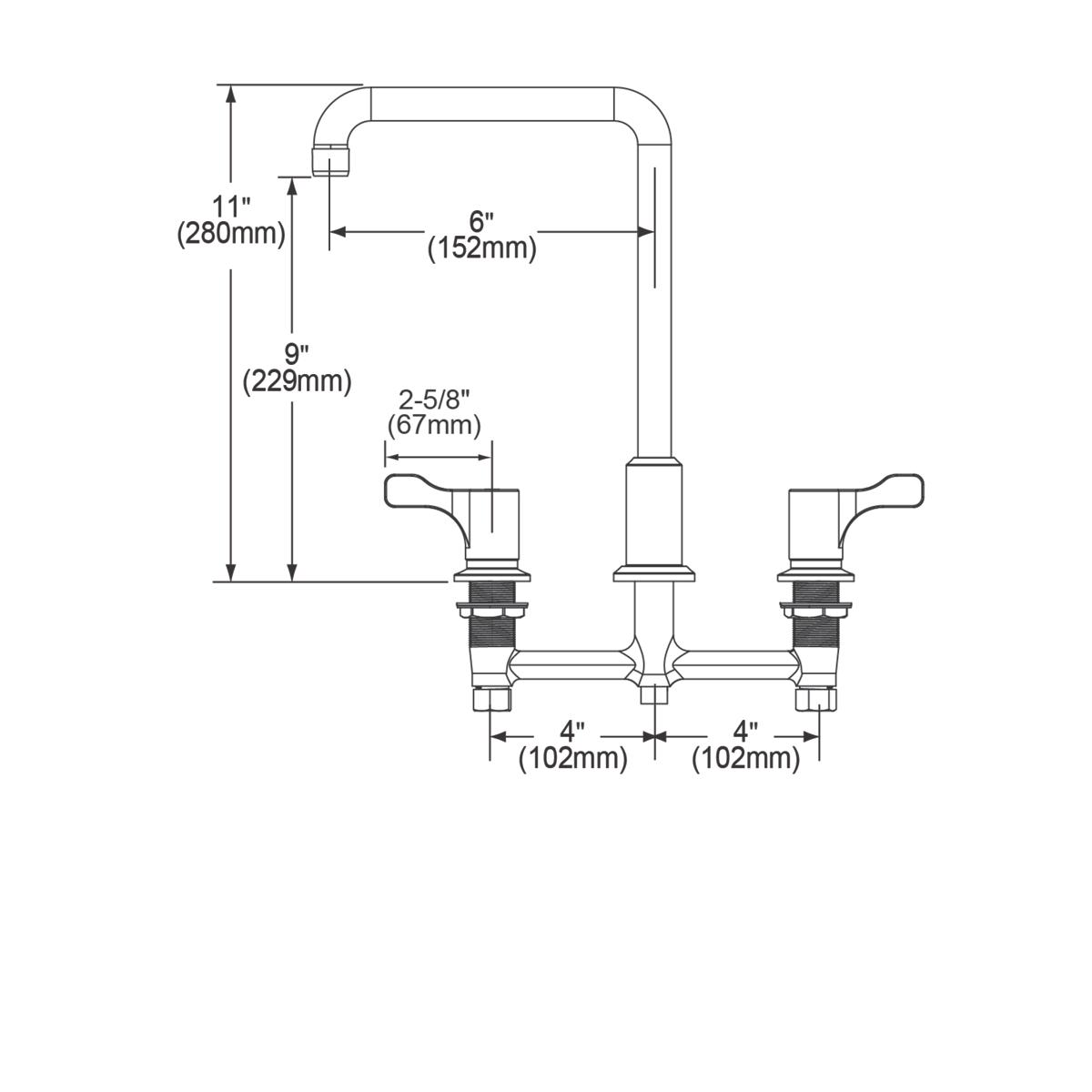

Specifications
- Type: 8" Centerset Concealed Deck Mount Faucet with Arc Tube Spout and 2-5/8" Lever Handles Chrome
- Inlet Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Country of Origin: China
- MPN: LKDA2437C
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: 8"
- Spout Type: Arc Tube
- Deck Clearance (in): 9.0
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Faucet Holes: 3
- Overall Length (in): 13.25
- Overall Width (in): 6.625
- Overall Height (in): 16.875
- Spout Reach (in): 6.0
- Spout Height (in): 11.0
- Handles: 2
- Handle Length (in): 2.625
Product Information
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
Details
| Series | LKDA2437C | Device Type | 8" Centerset Concealed Deck Mount Faucet with Arc Tube Spout and 2-5/8" Lever Handles Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Hole count | 3 |
| Mount type | Deck-Mount | Overall height in | 16.875 in |
| Overall length in | 13.25 in | Overall width in | 6.625 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Deck clearance in | 9.0 | Handle count | 2 |
| Handle length in | 2.625 | Spout height in | 11.0 |
| Spout reach in | 6.0 | Spout type | Arc Tube |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
Compare with similar products
| Series | LKDA2437C
| LK810LGN08T4
| LK810GN05T6
| LK800LGN08T4
| LK800LGN05T6
| LK800LGN05T4
|
| Country Of Origin | China
| United States
| China
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | 8" Centerset Concealed Deck Mount Faucet with Arc Tube Spout and 2-5/8" Lever Handles Chrome
| 8" Centerset with Exposed Deck Laminar Flow Faucet with 8" Gooseneck Spout 4" Wristblade Handles Chrome
| 8" Centerset with Exposed Deck Faucet with 5" Gooseneck Spout 6" Wristblade Handles Chrome
| 8" Centerset with Concealed Deck Laminar Flow Faucet with 8" Gooseneck Spout 4" Wristblade Handles Chrome
| 8" Centerset with Concealed Deck Laminar Flow Faucet with 5" Gooseneck Spout 6" Wristblade Handles Chrome
| 8" Centerset with Concealed Deck Laminar Flow Faucet with 5" Gooseneck Spout 4" Wristblade Handles Chrome
|
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 3/8"
| 3/8"
| 3/8"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| NPSM
| NPSM
| Compression
| Compression
| Compression
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
|
