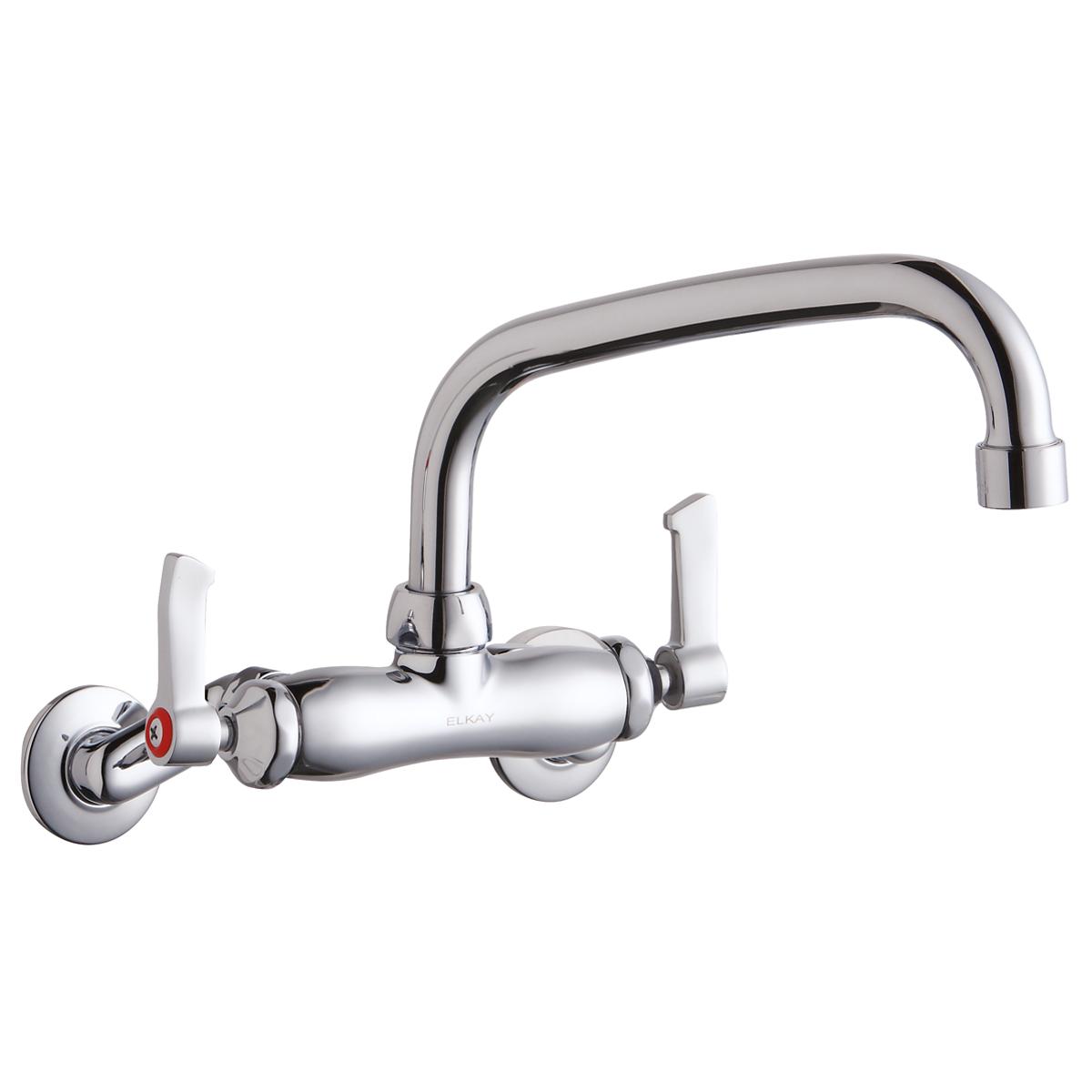

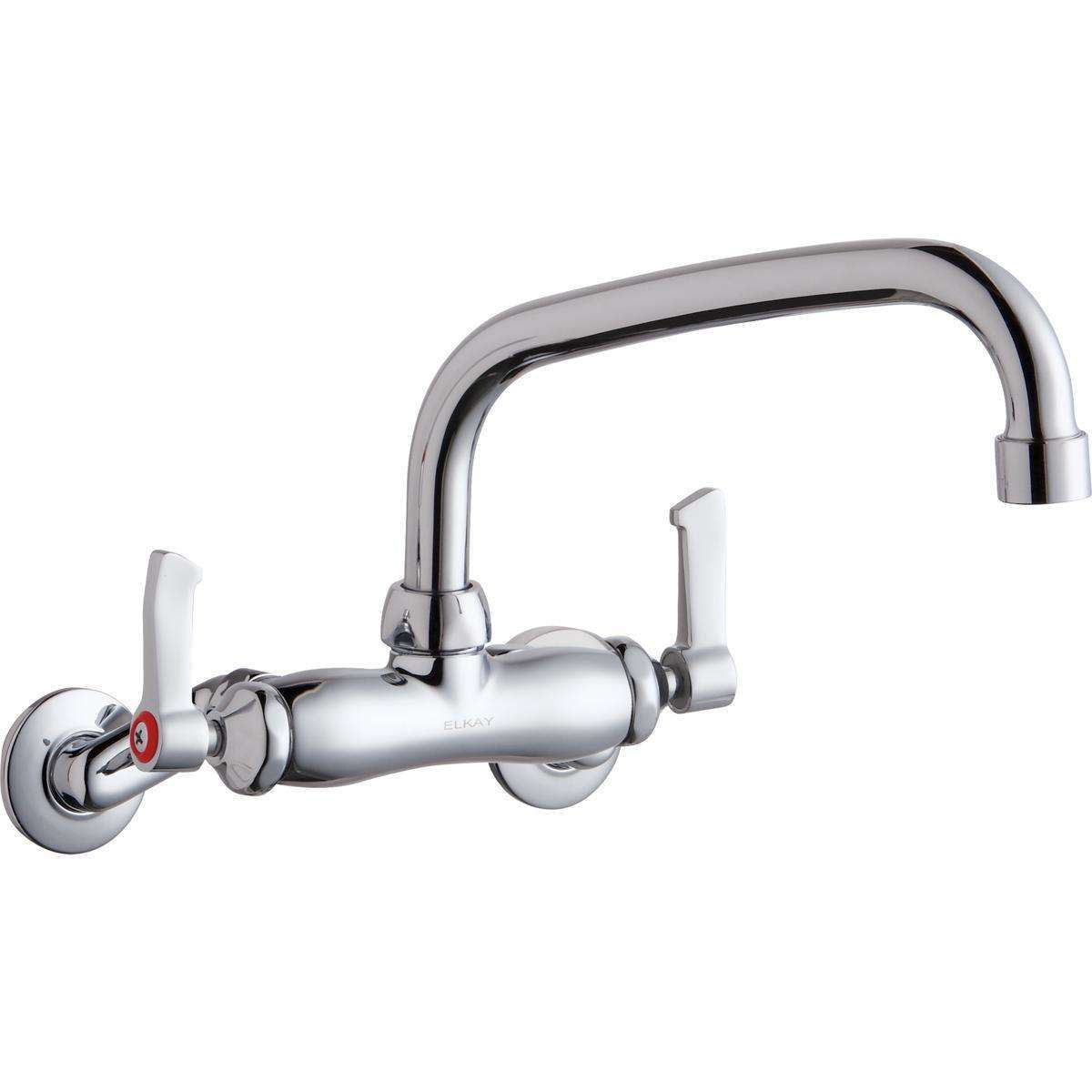

The Elkay LK945TS08L2T is a lead-free foodservice 3-8" adjustable centers wall mount faucet w/8" tube spout 2" lever handles 2" inlet chrome. It delivers 1.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- REMOVABLE CARTRIDGE: Allows for easy repair and replacement of cartridge.
- ADA COMPLIANT: Faucet is ADA compliant.
- 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes.
Common Questions
- What is the flow rate?
- 1.5 GPM as shipped.
Specifications
- Type: Foodservice 3-8" Adjustable Centers Wall Mount Faucet w/8" Tube Spout 2" Lever Handles 2" Inlet Chrome
- Connection: FNPT
- Body Material: Brass
- Country of Origin: China
- MPN: LK945TS08L2T
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Spout Type: Tube
- Deck Clearance (in): 2.0
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Faucet Holes: 2

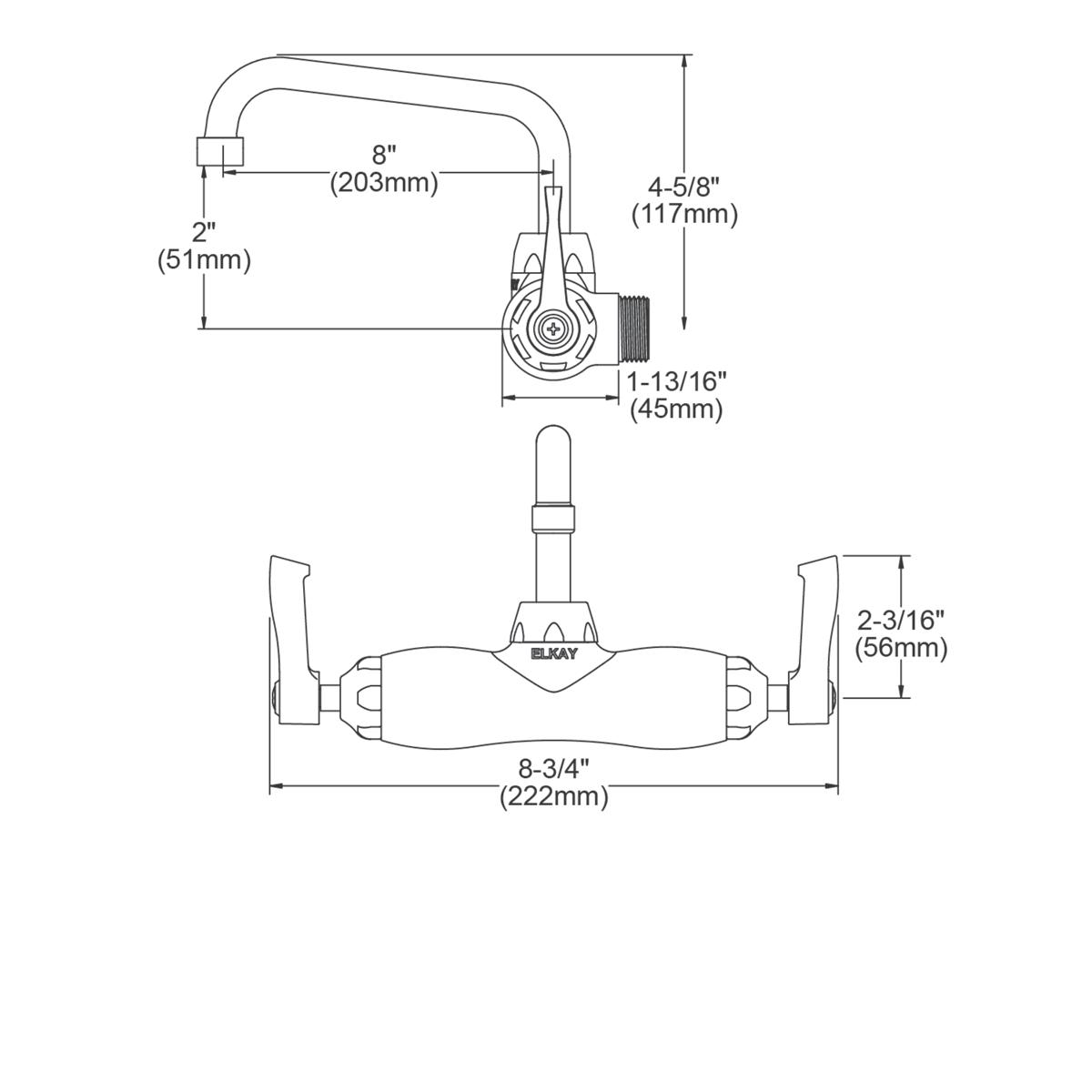

- Overall Length (in): 8.75
- Overall Width (in): 8.0
- Overall Height (in): 4.625
- Spout Reach (in): 8.0
- Spout Height (in): 4.625
- Handles: 2
- Handle Length (in): 2.0
Product Information
Dimensions
| End Connection | FNPT | — | — |
Details
| Series | LK945TS08L2T | Device Type | Foodservice 3-8" Adjustable Centers Wall Mount Faucet w/8" Tube Spout 2" Lever Handles 2" Inlet Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Hole count | 2 |
| Mount type | Wall-Mount | Overall height in | 4.625 in |
| Overall length in | 8.75 in | Overall width in | 8.0 in |
| Cartridge type | Ceramic 1/4-Turn | Deck clearance in | 2.0 |
| Handle count | 2 | Handle length in | 2.0 |
| Spout height in | 4.625 | Spout reach in | 8.0 |
| Spout type | Tube | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
