The Elkay LK940VS07T4S is a lead-free service/utility 8" centerset wall mount faucet w/7" vented spt 4" wristblade handles 1/2" offset inlets+stop. It delivers 4 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- 1/2" ADJUSTABLE INLETS WITH INTEGRAL STOPS: Adjustable water inlets with shutoffs that stop water flow at the faucet for easy maintenance.
- 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes.
Common Questions
- What is the flow rate?
- 4.0 GPM as shipped.
Specifications
- Type: Service/Utility 8" Centerset Wall Mount Faucet w/7" Vented Spt 4" Wristblade Handles 1/2" Offset Inlets+Stop
- Connection: FNPT
- Body Material: Brass
- Country of Origin: China
- MPN: LK940VS07T4S
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: 8"
- Spout Type: Vented
- Deck Clearance (in): 0.875
- Mount Type: Wall-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 4.0
- Faucet Holes: 2

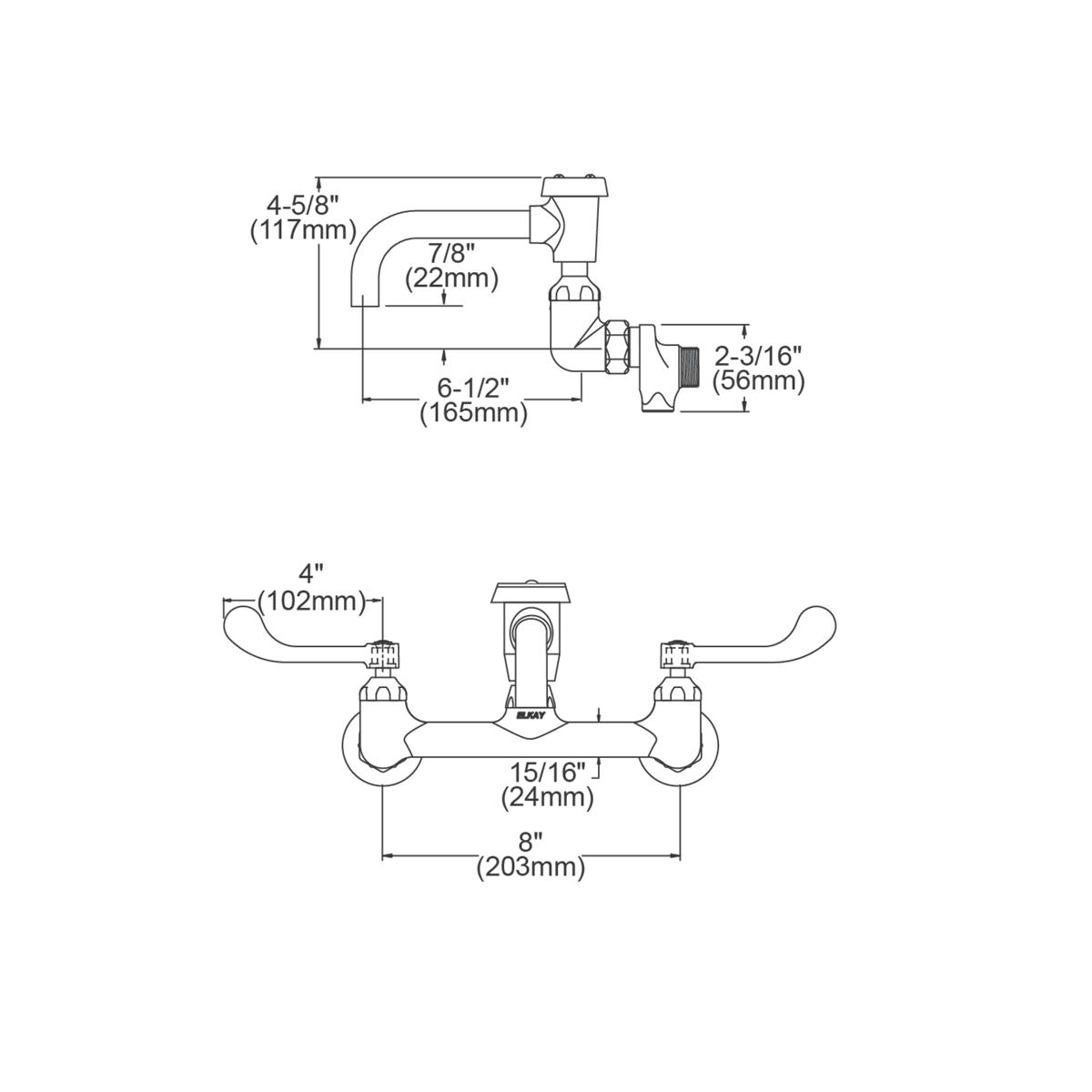

- Overall Length (in): 8.0
- Overall Width (in): 9.875
- Overall Height (in): 4.625
- Spout Reach (in): 6.5
- Spout Height (in): 4.625
- Handles: 2
- Handle Length (in): 4.0
Product Information
Dimensions
| End Connection | FNPT | — | — |
Details
| Series | LK940VS07T4S | Device Type | Service/Utility 8" Centerset Wall Mount Faucet w/7" Vented Spt 4" Wristblade Handles 1/2" Offset Inlets+Stop |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 4.0 GPM |
| Handle style | Wristblade | Hole count | 2 |
| Mount type | Wall-Mount | Overall height in | 4.625 in |
| Overall length in | 8.0 in | Overall width in | 9.875 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Deck clearance in | 0.875 | Handle count | 2 |
| Handle length in | 4.0 | Spout height in | 4.625 |
| Spout reach in | 6.5 | Spout type | Vented |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
Compare with similar products
| Series | LK940VS07T4S
| LK400
|
| Country Of Origin | China
| United States
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Service/Utility 8" Centerset Wall Mount Faucet w/7" Vented Spt 4" Wristblade Handles 1/2" Offset Inlets+Stop
| 4"-8-3/8" Adjustable Centers Wall Mount Faucet with Bucket Hook Spout 2" Lever Handles Rough Chrome
|
| Lead Free | Yes | Yes |
| End Connection | FNPT
| Compression
|
| Body Material | Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, ADA
|
