Description

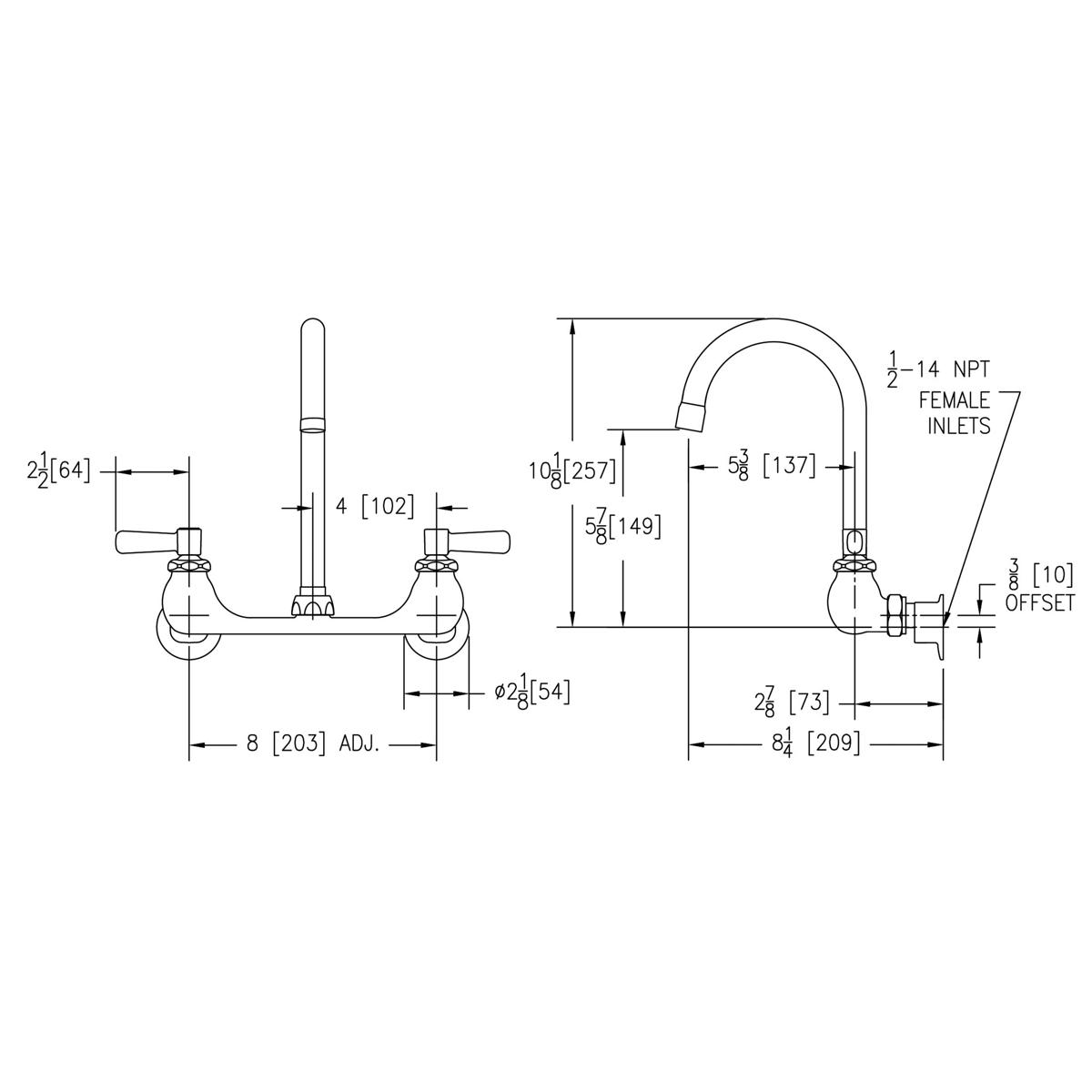

The Elkay LK940GN05L2H is a lead-free scrub/handwash 8" centerset wall mount faucet with 5" gooseneck spout 2" lever handles 1/2" offset inlets. It delivers 1.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts included.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- 1/2" ADJUSTABLE INLETS: Allows for flexibility when installing faucet.
- 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes.
Common Questions
- What is the flow rate?
- 1.5 GPM as shipped.
Specifications
- Type: Scrub/Handwash 8" Centerset Wall Mount Faucet with 5" Gooseneck Spout 2" Lever Handles 1/2" Offset Inlets
- Inlet Size: 1/2"
- Connection: FNPT
- Body Material: Brass
- Country of Origin: China
- MPN: LK940GN05L2H
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: 8"
- Spout Type: Gooseneck
- Deck Clearance (in): 7.375
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Faucet Holes: 2
- Overall Length (in): 8.0
- Overall Width (in): 5.125
- Overall Height (in): 11.0
- Spout Reach (in): 5.125
- Spout Height (in): 11.0
- Handles: 2
- Handle Length (in): 2.0
Product Information
Dimensions
| Inlet Size | 1/2" | End Connection | FNPT |
Details
| Series | LK940GN05L2H | Device Type | Scrub/Handwash 8" Centerset Wall Mount Faucet with 5" Gooseneck Spout 2" Lever Handles 1/2" Offset Inlets |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Hole count | 2 |
| Mount type | Wall-Mount | Overall height in | 11.0 in |
| Overall length in | 8.0 in | Overall width in | 5.125 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Deck clearance in | 7.375 | Handle count | 2 |
| Handle length in | 2.0 | Spout height in | 11.0 |
| Spout reach in | 5.125 | Spout type | Gooseneck |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
