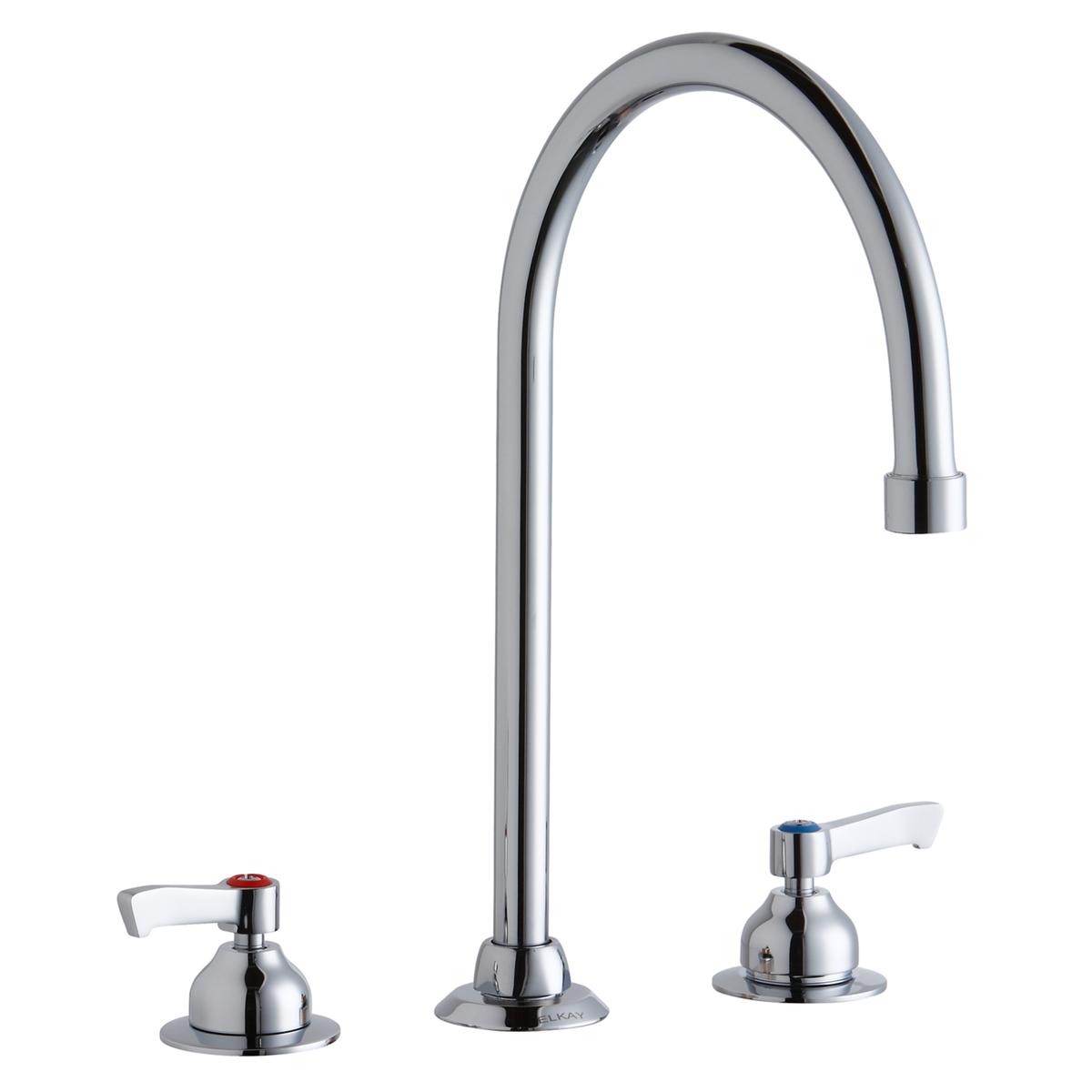

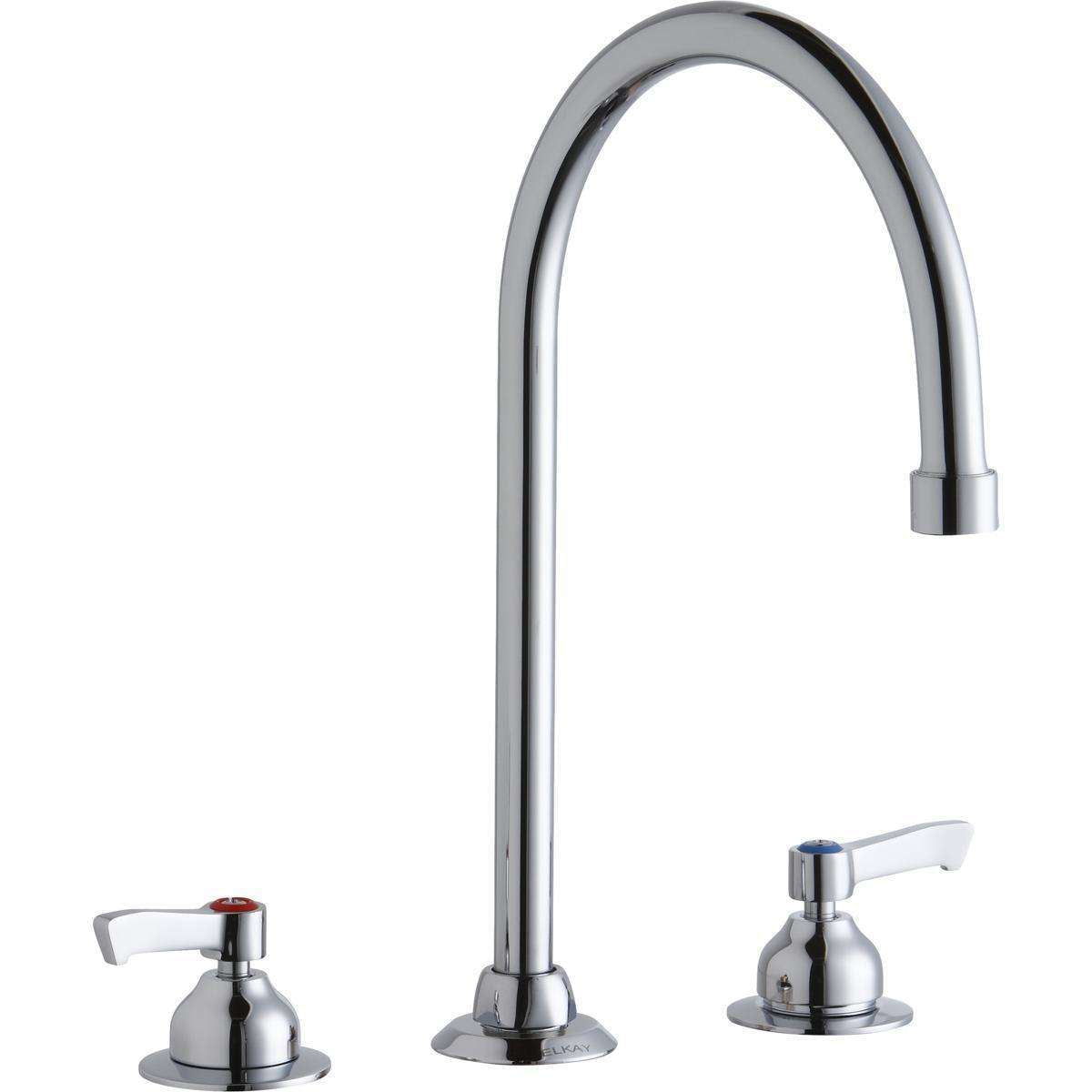

The Elkay LK800GN08L2 is a lead-free 8" centerset with concealed deck faucet with 8" gooseneck spout 2" lever handles chrome. It delivers 1.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts included.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- 3 FAUCET HOLES: Faucet designed to be installed using three faucet holes.
Common Questions
- What is the flow rate?
- 1.5 GPM as shipped.

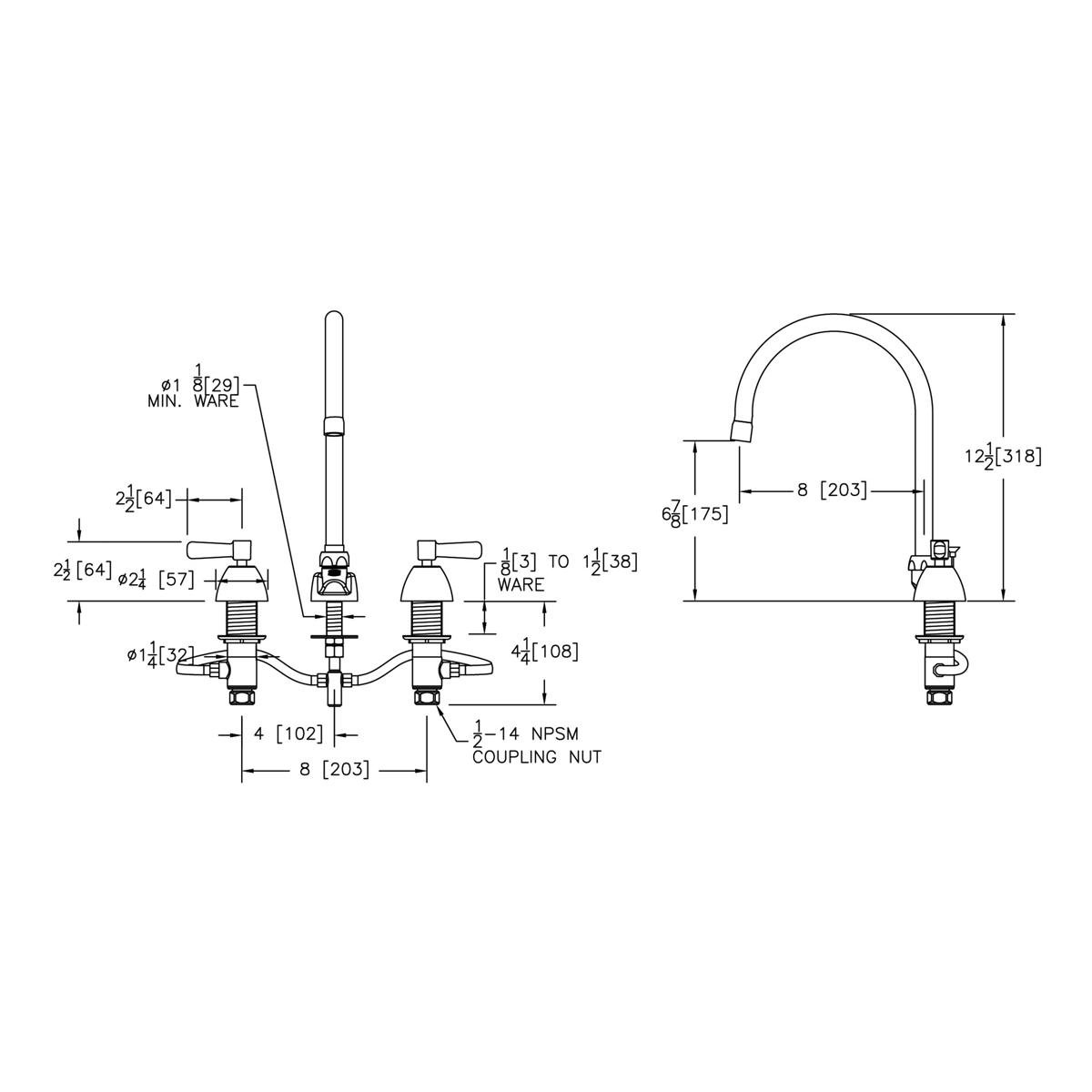

Specifications
- Type: 8" Centerset with Concealed Deck Faucet with 8" Gooseneck Spout 2" Lever Handles Chrome
- Inlet Size: 3/8"
- Connection: Compression
- Body Material: Brass
- Country of Origin: China
- MPN: LK800GN08L2
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: 8"
- Spout Type: Gooseneck
- Deck Clearance (in): 7.8125
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Faucet Holes: 3
- Overall Length (in): 13.25
- Overall Width (in): 10.0
- Overall Height (in): 16.8125
- Spout Reach (in): 8.0
- Spout Height (in): 13.3125
- Handles: 2
- Handle Length (in): 2.0
Product Information
Dimensions
| Inlet Size | 3/8" | End Connection | Compression |
Details
| Series | LK800GN08L2 | Device Type | 8" Centerset with Concealed Deck Faucet with 8" Gooseneck Spout 2" Lever Handles Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Hole count | 3 |
| Mount type | Deck-Mount | Overall height in | 16.8125 in |
| Overall length in | 13.25 in | Overall width in | 10.0 in |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Deck clearance in | 7.8125 | Handle count | 2 |
| Handle length in | 2.0 | Spout height in | 13.3125 |
| Spout reach in | 8.0 | Spout type | Gooseneck |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | IAPMO |
| ADA | — |
Compare with similar products
| Series | LK800GN08L2
| LK810LGN08T4
| LK810GN05T6
| LK800LGN08T4
| LK800LGN05T6
| LK800LGN05T4
|
| Country Of Origin | China
| United States
| China
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | 8" Centerset with Concealed Deck Faucet with 8" Gooseneck Spout 2" Lever Handles Chrome
| 8" Centerset with Exposed Deck Laminar Flow Faucet with 8" Gooseneck Spout 4" Wristblade Handles Chrome
| 8" Centerset with Exposed Deck Faucet with 5" Gooseneck Spout 6" Wristblade Handles Chrome
| 8" Centerset with Concealed Deck Laminar Flow Faucet with 8" Gooseneck Spout 4" Wristblade Handles Chrome
| 8" Centerset with Concealed Deck Laminar Flow Faucet with 5" Gooseneck Spout 6" Wristblade Handles Chrome
| 8" Centerset with Concealed Deck Laminar Flow Faucet with 5" Gooseneck Spout 4" Wristblade Handles Chrome
|
| Inlet Size | 3/8"
| 1/2"
| 1/2"
| 3/8"
| 3/8"
| 3/8"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Compression
| NPSM
| NPSM
| Compression
| Compression
| Compression
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
| ASME A112.18.1/CSA B125.1, NSF-61, NSF-372, IAPMO, ADA
|
