Description

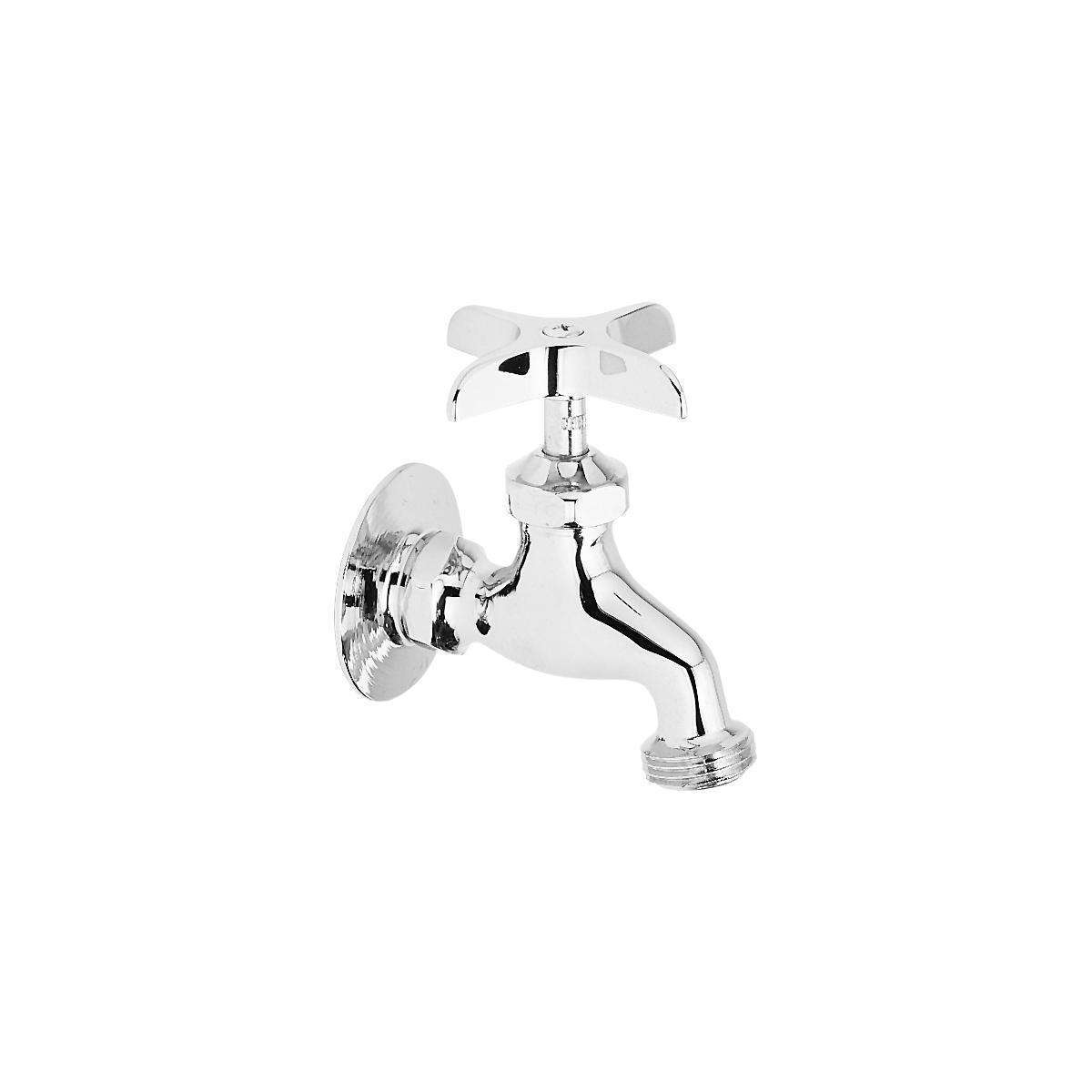

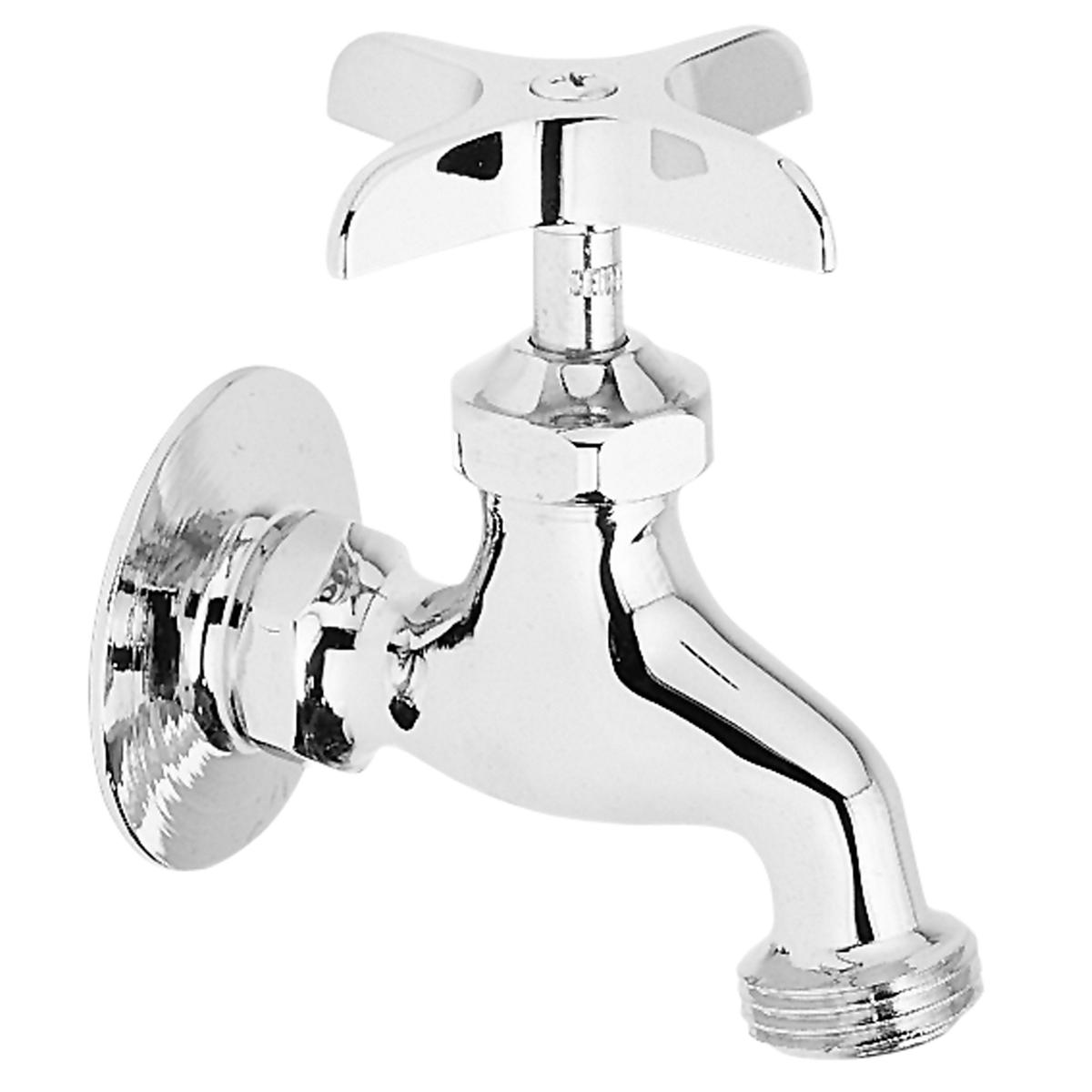

The Elkay LK69CH is a lead-free commercial service/ utility single hole wall mount faucet with hose end chrome. It delivers 2.5 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Features
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- Chrome-plated
- 3/4" (19mm) hose thread outlet.
- Cross arm chrome plated handle.
Common Questions
- What is the flow rate?
- 2.5 GPM as shipped.
Specifications
- Type: Commercial Service/ Utility Single Hole Wall Mount Faucet with Hose End Chrome
- Inlet Size: 1/2"
- Connection: FNPT
- Body Material: Brass
- Country of Origin: Taiwan
- MPN: LK69CH
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372
- Lead-Free: Yes
- Centers: Single-Hole
- Spout Type: Fixed
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Faucet Holes: 1
- Overall Length (in): 3.0
- Overall Width (in): 4.125
- Overall Height (in): 4.0
- Spout Reach (in): 3.1875
- Spout Height (in): 4.0
- Handles: 1
Product Information
| SKU | UPC | Country of Origin | Spec Sheet |
|---|---|---|---|
| LK69CH | 094902037509 | Taiwan | Download |

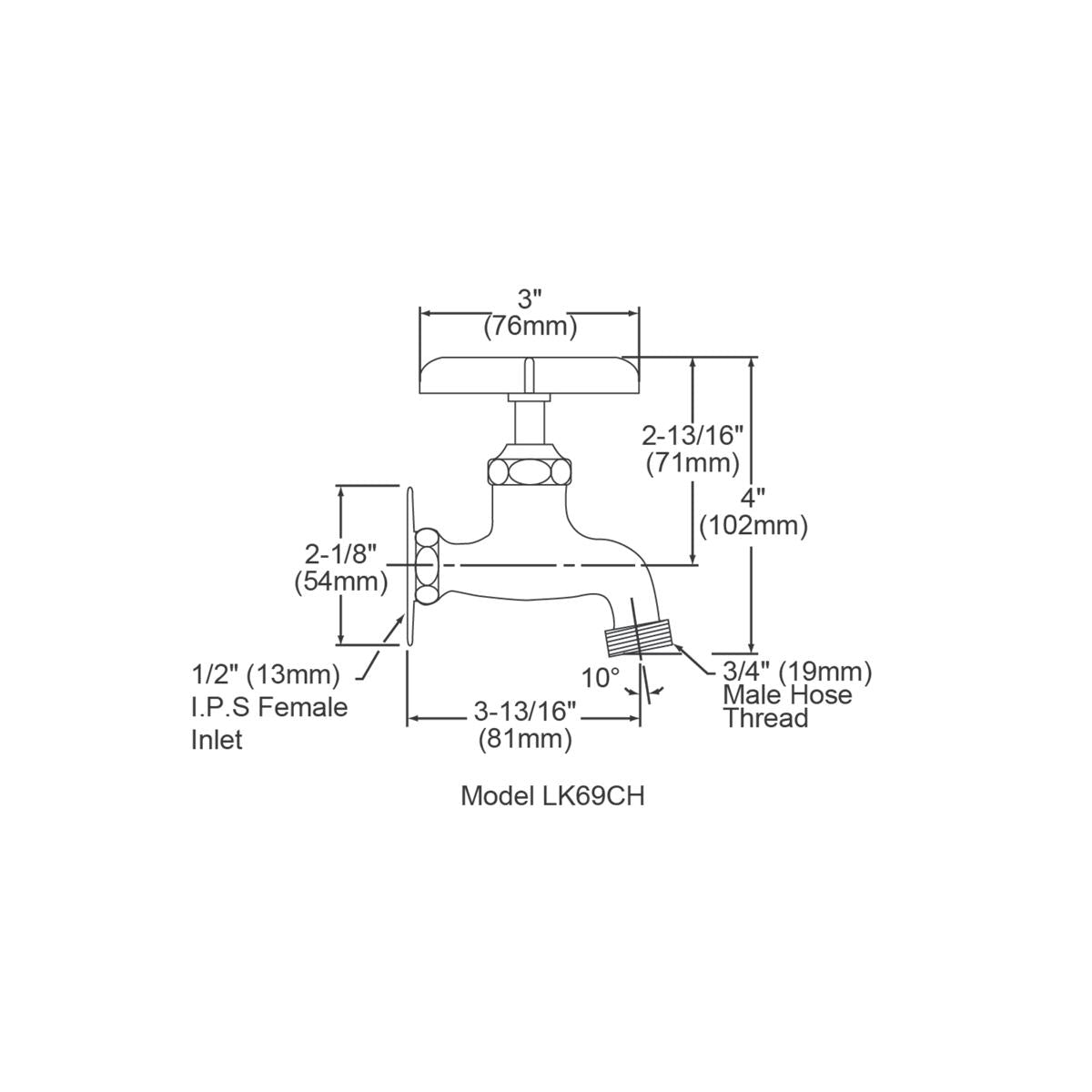

Dimensions
| Inlet Size | 1/2" | End Connection | FNPT |
Details
| Series | LK69CH | Device Type | Commercial Service/ Utility Single Hole Wall Mount Faucet with Hose End Chrome |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 2.5 GPM |
| Handle style | Cross | Hole count | 1 |
| Mount type | Wall-Mount | Overall height in | 4.0 in |
| Overall length in | 3.0 in | Overall width in | 4.125 in |
| Centers | Single-Hole | Handle count | 1 |
| Spout height in | 4.0 | Spout reach in | 3.1875 |
| Spout type | Fixed | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | — |
Compare with similar products
| Series | LK69CH
| LK400
|
| Country Of Origin | Taiwan
| United States
|
| Spec Sheet | ||
| Device Type | Commercial Service/ Utility Single Hole Wall Mount Faucet with Hose End Chrome
| 4"-8-3/8" Adjustable Centers Wall Mount Faucet with Bucket Hook Spout 2" Lever Handles Rough Chrome
|
| Inlet Size | 1/2"
| 3/8"
|
| Lead Free | Yes | Yes |
| End Connection | FNPT
| Compression
|
| Body Material | Brass
| Brass
|
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61, ADA
|
